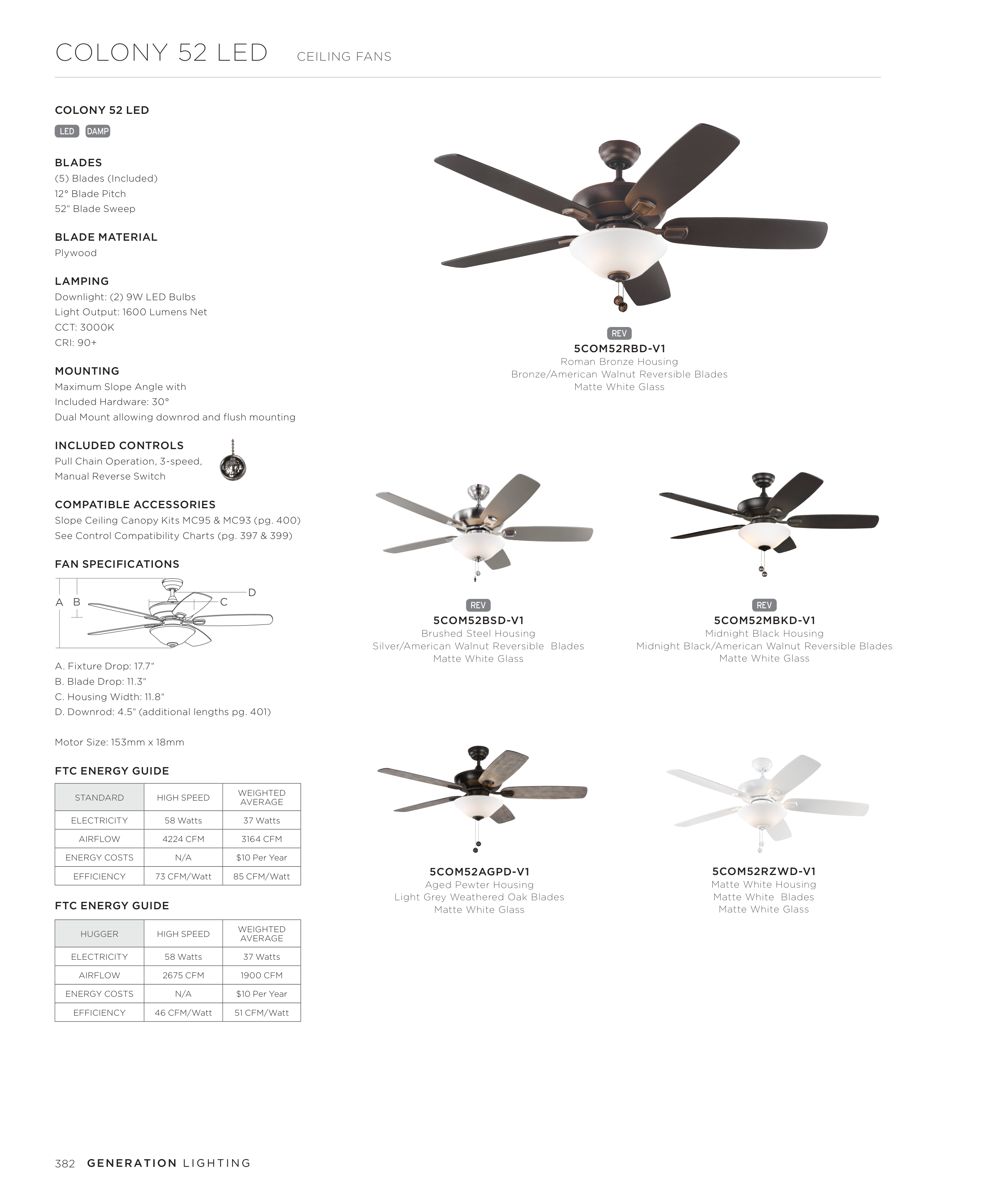

COLONY 52 LED
CEILING FANS
CEILING FANS
COLONY 52
COLONY 52 LED
LED DAMP
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Downlight: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
Dual Mount allowing downrod and flush mounting
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
See Control Compatibility Charts (pg. 397 & 399)
FAN SPECIFICATIONS
A
B
C
D
A. Fixture Drop: 17.7"
B. Blade Drop: 11.3"
C. Housing Width: 11.8"
D. Downrod: 4.5" (additional lengths pg. 401)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
58 Watts
37 Watts
AIRFLOW
4224 CFM
3164 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
73 CFM/Watt
85 CFM/Watt
HUGGER
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
58 Watts
37 Watts
AIRFLOW
2675 CFM
1900 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
46 CFM/Watt
51 CFM/Watt
REV
5COM52RBD-V1
Roman Bronze Housing
Bronze/American Walnut Reversible Blades
Matte White Glass
REV
5COM52BSD-V1
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte White Glass
REV
5COM52MBKD-V1
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Matte White Glass
5COM52AGPD-V1
Aged Pewter Housing
Light Grey Weathered Oak Blades
Matte White Glass
5COM52RZWD-V1
Matte White Housing
Matte White Blades
Matte White Glass
382
