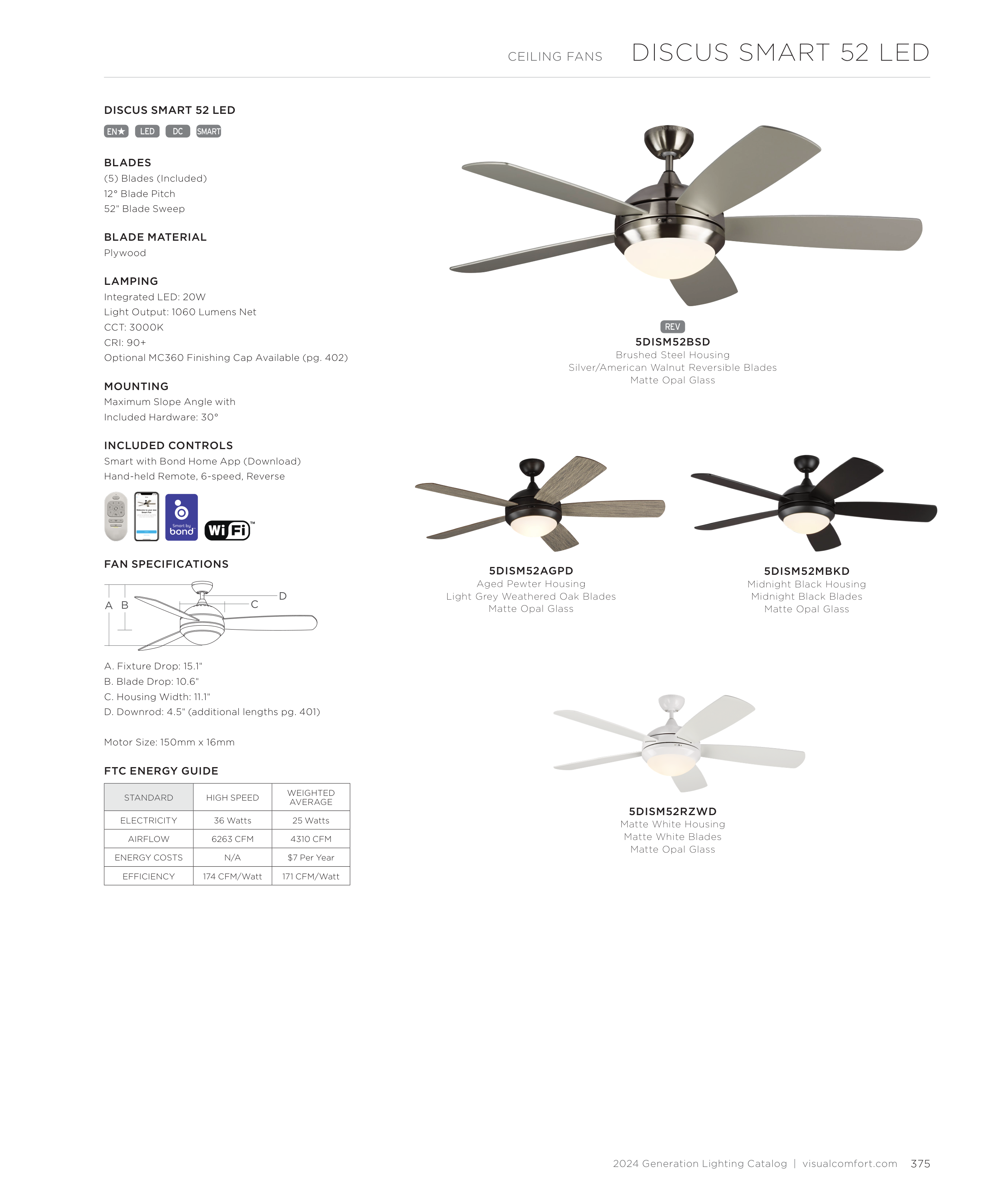

CEILING FANS
DISCUS SMART 52 LED
DISCUS SMART 52 LED
EN★ LED
DC SMART
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 1060 Lumens Net
CCT: 3000K
CRI: 90+
Optional MC360 Finishing Cap Available (pg. 402)
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
INCLUDED CONTROLS
Smart with Bond Home App (Download)
Hand-held Remote, 6-speed, Reverse
TM
TM
TM
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 15.1"
B. Blade Drop: 10.6"
C. Housing Width: 11.1"
D. Downrod: 4.5" (additional lengths pg. 401)
Motor Size: 150mm x 16mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
36 Watts
25 Watts
AIRFLOW
6263 CFM
4310 CFM
ENERGY COSTS
N/A
$7 Per Year
EFFICIENCY
174 CFM/Watt
171 CFM/Watt
REV
5DISM52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte Opal Glass
5DISM52AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Matte Opal Glass
5DISM52MBKD
Midnight Black Housing
Midnight Black Blades
Matte Opal Glass
5DISM52RZWD
Matte White Housing
Matte White Blades
Matte Opal Glass
375
2024 Generation Lighting Catalog | visualcomfort.com
