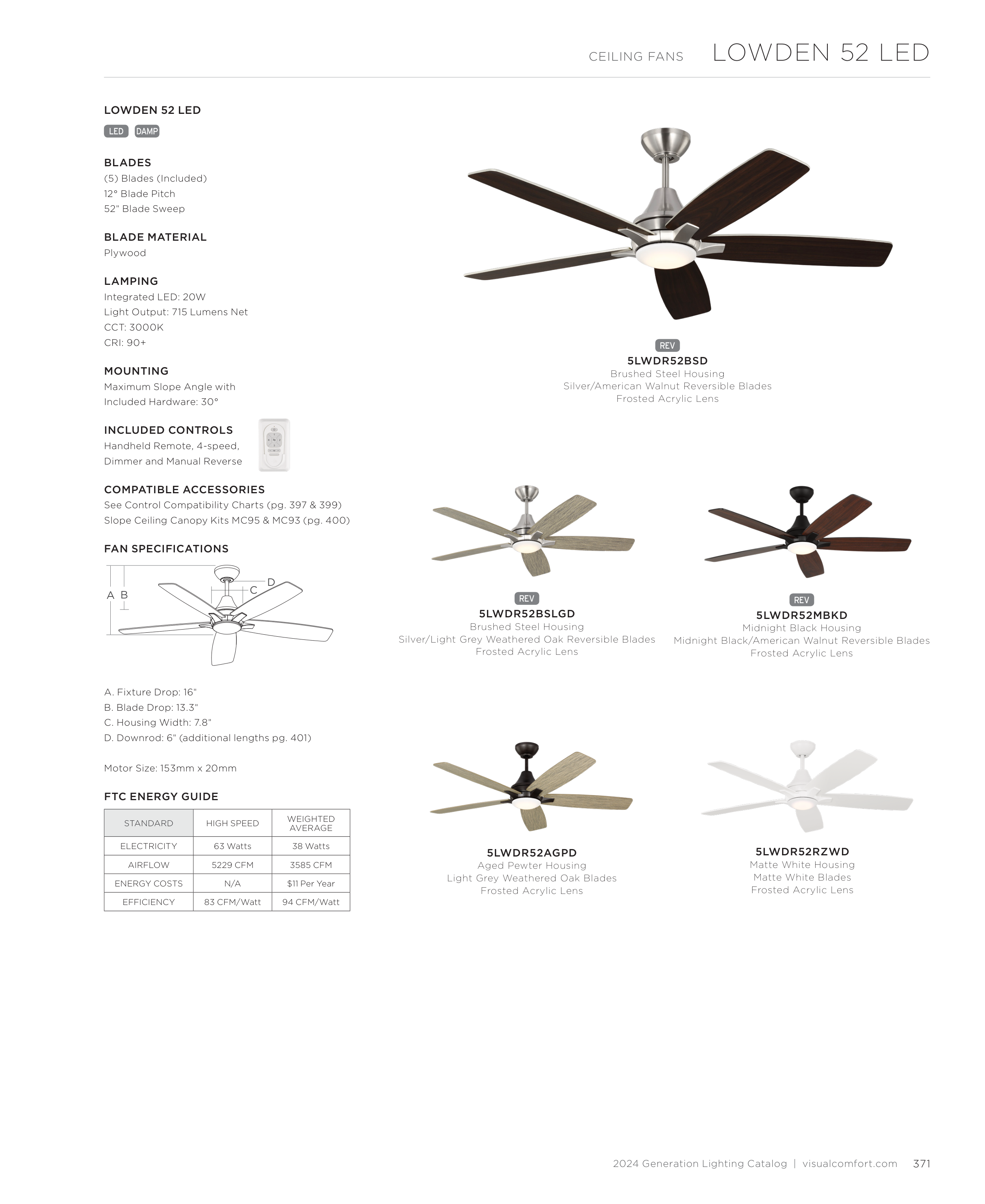

CEILING FANS
LOWDEN 52 LED
LOWDEN 52 LED
LED DAMP
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 715 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
INCLUDED CONTROLS
Handheld Remote, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Charts (pg. 397 & 399)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
FAN SPECIFICATIONS
D
C
A B
A. Fixture Drop: 16"
B. Blade Drop: 13.3"
C. Housing Width: 7.8"
D. Downrod: 6" (additional lengths pg. 401)
Motor Size: 153mm x 20mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
63 Watts
38 Watts
AIRFLOW
5229 CFM
3585 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
83 CFM/Watt
94 CFM/Watt
REV
5LWDR52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
REV
5LWDR52BSLGD
Brushed Steel Housing
Silver/Light Grey Weathered Oak Reversible Blades
Frosted Acrylic Lens
REV
5LWDR52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
5LWDR52RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
5LWDR52AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Frosted Acrylic Lens
371
2024 Generation Lighting Catalog | visualcomfort.com
