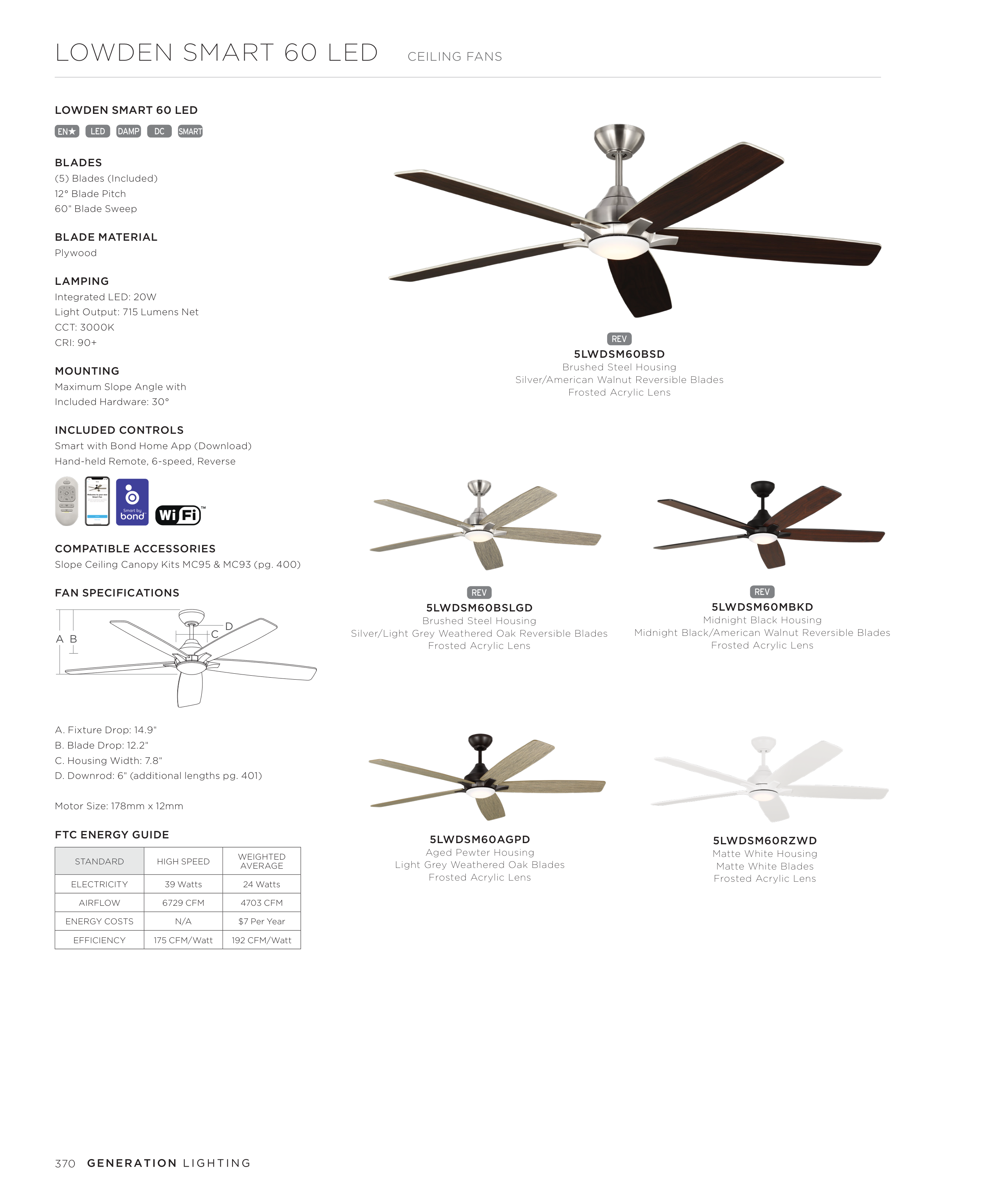

LOWDEN SMART 60 LED
CEILING FANS
CEILING FANS
LOWDEN 52 LED
LOWDEN SMART 60 LED
EN★ LED DAMP
DC SMART
BLADES
(5) Blades (Included)
12° Blade Pitch
60" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 715 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
INCLUDED CONTROLS
Smart with Bond Home App (Download)
Hand-held Remote, 6-speed, Reverse
TM
TM
TM
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 14.9"
B. Blade Drop: 12.2"
C. Housing Width: 7.8"
D. Downrod: 6" (additional lengths pg. 401)
Motor Size: 178mm x 12mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
39 Watts
24 Watts
AIRFLOW
6729 CFM
4703 CFM
ENERGY COSTS
N/A
$7 Per Year
EFFICIENCY
175 CFM/Watt
192 CFM/Watt
REV
5LWDSM60BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
5LWDSM60RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
5LWDSM60AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Frosted Acrylic Lens
REV
5LWDSM60BSLGD
Brushed Steel Housing
Silver/Light Grey Weathered Oak Reversible Blades
Frosted Acrylic Lens
REV
5LWDSM60MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
370
