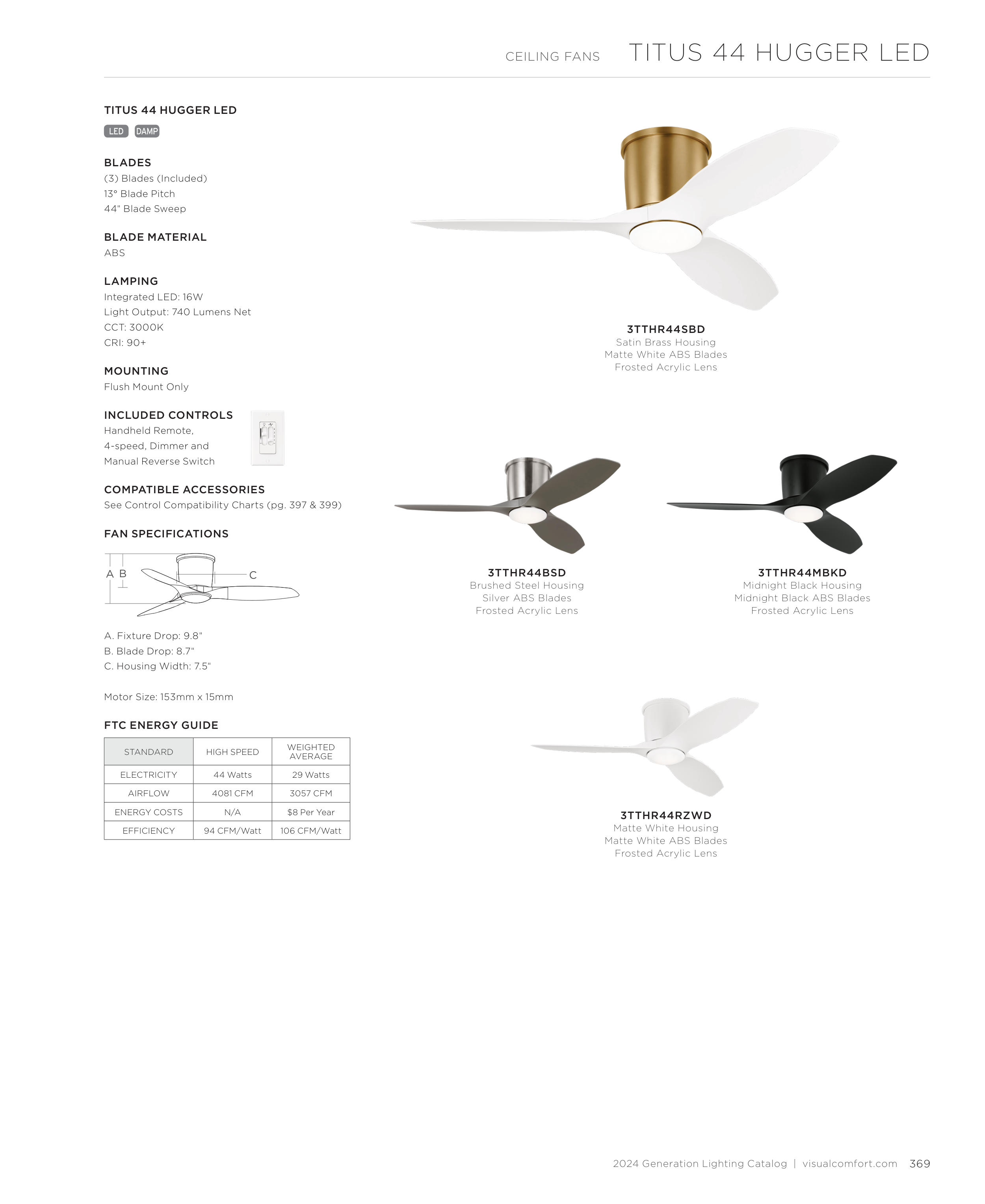

CEILING FANS
TITUS 44 HUGGER LED
TITUS 44 HUGGER LED
LED DAMP
BLADES
(3) Blades (Included)
13° Blade Pitch
44" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 16W
Light Output: 740 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Flush Mount Only
INCLUDED CONTROLS
Handheld Remote,
4-speed, Dimmer and
Manual Reverse Switch
COMPATIBLE ACCESSORIES
See Control Compatibility Charts (pg. 397 & 399)
FAN SPECIFICATIONS
A B
C
A. Fixture Drop: 9.8"
B. Blade Drop: 8.7"
C. Housing Width: 7.5"
Motor Size: 153mm x 15mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
44 Watts
29 Watts
AIRFLOW
4081 CFM
3057 CFM
ENERGY COSTS
N/A
$8 Per Year
EFFICIENCY
94 CFM/Watt
106 CFM/Watt
3TTHR44SBD
Satin Brass Housing
Matte White ABS Blades
Frosted Acrylic Lens
3TTHR44RZWD
Matte White Housing
Matte White ABS Blades
Frosted Acrylic Lens
3TTHR44BSD
Brushed Steel Housing
Silver ABS Blades
Frosted Acrylic Lens
3TTHR44MBKD
Midnight Black Housing
Midnight Black ABS Blades
Frosted Acrylic Lens
369
2024 Generation Lighting Catalog | visualcomfort.com
