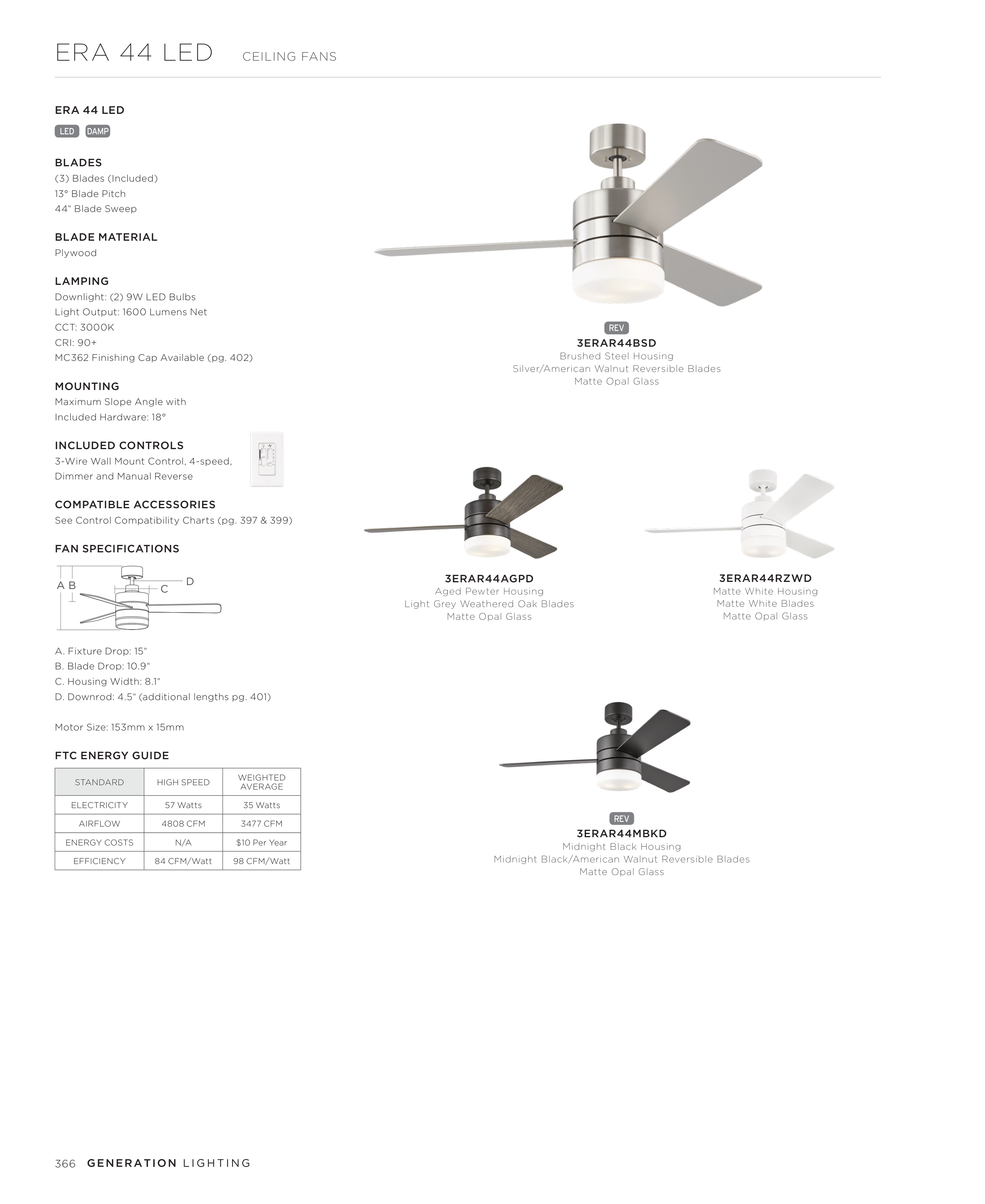

ERA 44 LED
CEILING FANS
CEILING FANS
ERA 44 HUGGER LED
ERA 44 LED
LED DAMP
BLADES
(3) Blades (Included)
13° Blade Pitch
44" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Downlight: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MC362 Finishing Cap Available (pg. 402)
MOUNTING
Maximum Slope Angle with
Included Hardware: 18°
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Charts (pg. 397 & 399)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 15"
B. Blade Drop: 10.9"
C. Housing Width: 8.1"
D. Downrod: 4.5" (additional lengths pg. 401)
Motor Size: 153mm x 15mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
57 Watts
35 Watts
AIRFLOW
4808 CFM
3477 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
84 CFM/Watt
98 CFM/Watt
REV
3ERAR44MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Matte Opal Glass
3ERAR44RZWD
Matte White Housing
Matte White Blades
Matte Opal Glass
3ERAR44AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Matte Opal Glass
REV
3ERAR44BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte Opal Glass
366
