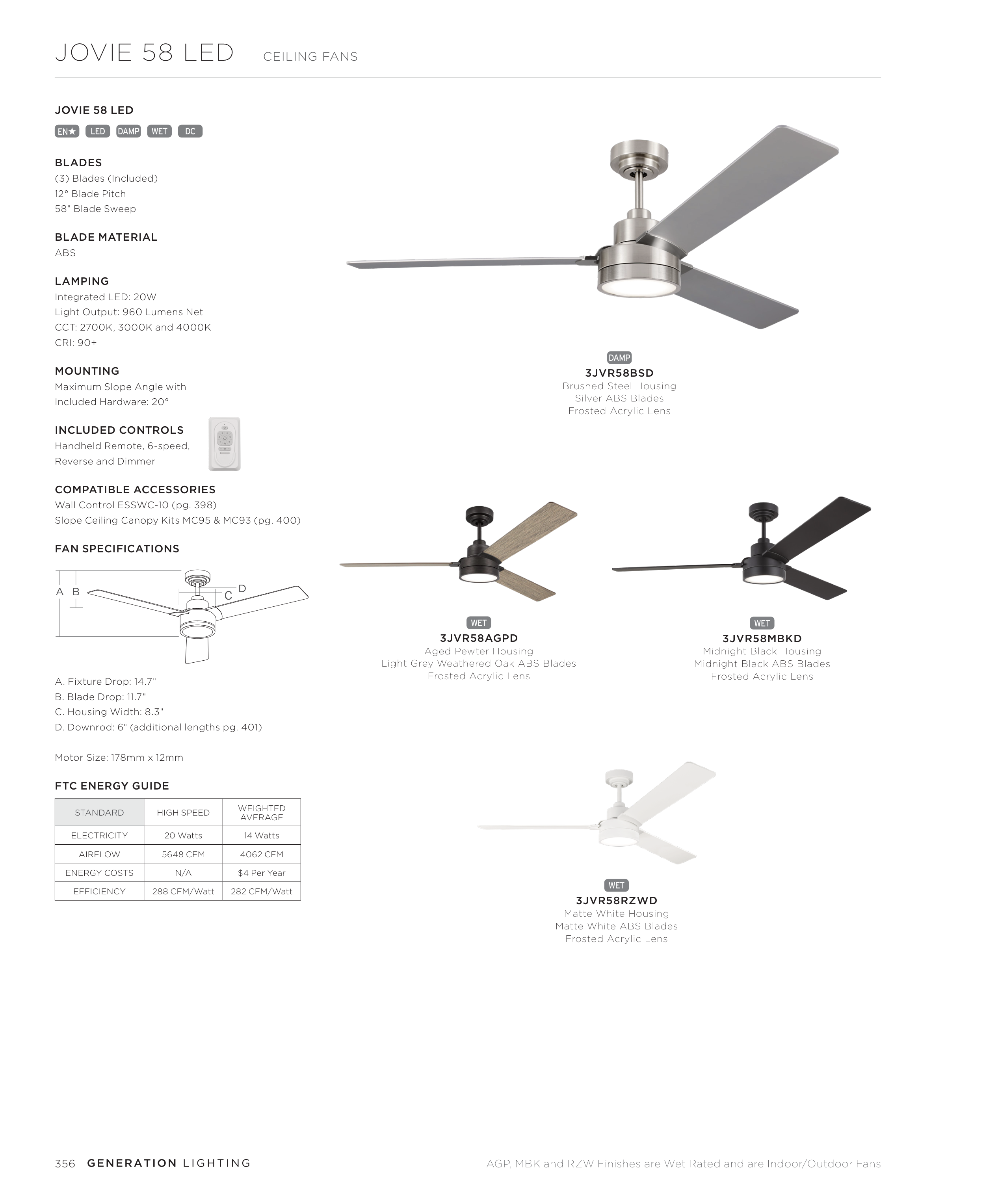

JOVIE 58 LED
CEILING FANS
CEILING FANS
JOVIE 58
JOVIE 58 LED
EN★ LED DAMP WET
DC
BLADES
(3) Blades (Included)
12° Blade Pitch
58" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 960 Lumens Net
CCT: 2700K, 3000K and 4000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 20°
INCLUDED CONTROLS
Handheld Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-10 (pg. 398)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 400)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 14.7"
B. Blade Drop: 11.7"
C. Housing Width: 8.3"
D. Downrod: 6" (additional lengths pg. 401)
Motor Size: 178mm x 12mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
20 Watts
14 Watts
AIRFLOW
5648 CFM
4062 CFM
ENERGY COSTS
N/A
$4 Per Year
EFFICIENCY
288 CFM/Watt
282 CFM/Watt
DAMP
3JVR58BSD
Brushed Steel Housing
Silver ABS Blades
Frosted Acrylic Lens
WET
3JVR58AGPD
Aged Pewter Housing
Light Grey Weathered Oak ABS Blades
Frosted Acrylic Lens
WET
3JVR58MBKD
Midnight Black Housing
Midnight Black ABS Blades
Frosted Acrylic Lens
WET
3JVR58RZWD
Matte White Housing
Matte White ABS Blades
Frosted Acrylic Lens
356
AGP, MBK and RZW Finishes are Wet Rated and are Indoor/Outdoor Fans
