6.3"
160 mm
8.3"
211 mm
1.3"
33 mm
3"
76 mm
3.1"
79 mm
3.1"
79 mm
Style
LOUVER
TARPA
VITRA
120V
94401S(-15 -849 -171)
94403S(-849 -171)
94405S(-15 -849 -171)
120V Amber Light
94481S(-15 -849 -171)
94483S(-849 -171)
94485S(-15 -849 -171)
Finishes
WHITE (-15)
SATIN NICKEL (-849)
ANTIQUE BRONZE (-171)
SATIN NICKEL (-849)
ANTIQUE BRONZE (-171)
WHITE (-15)
SATIN NICKEL (-849)
ANTIQUE BRONZE (-171)
Face Plate Dimensions
L: 4.7" H: 3" D: .37"
L: 4.7" H: 3" D: .94"
L: 4.7" H: 3" D: .27"
Input Voltage
120V
Delivered Lumens
UP TO 300
Power Consumption
8.6W
Efficacy
35 LM/W
Color Temperature
3000K
Color Rendering Index
90 CRI
Rated Average Life
50,000 HRS TO 70%
Dimmable
DOWN TO 10% WITH ELV DIMMER (120V, 3000K UNITS ONLY)
Listings
SUITABLE FOR INDOOR OR OUTDOOR INSTALLATIONS. CETL AND IP-65 WET
Installation
SUITABLE FOR BRICK AND POURED CONCRETE

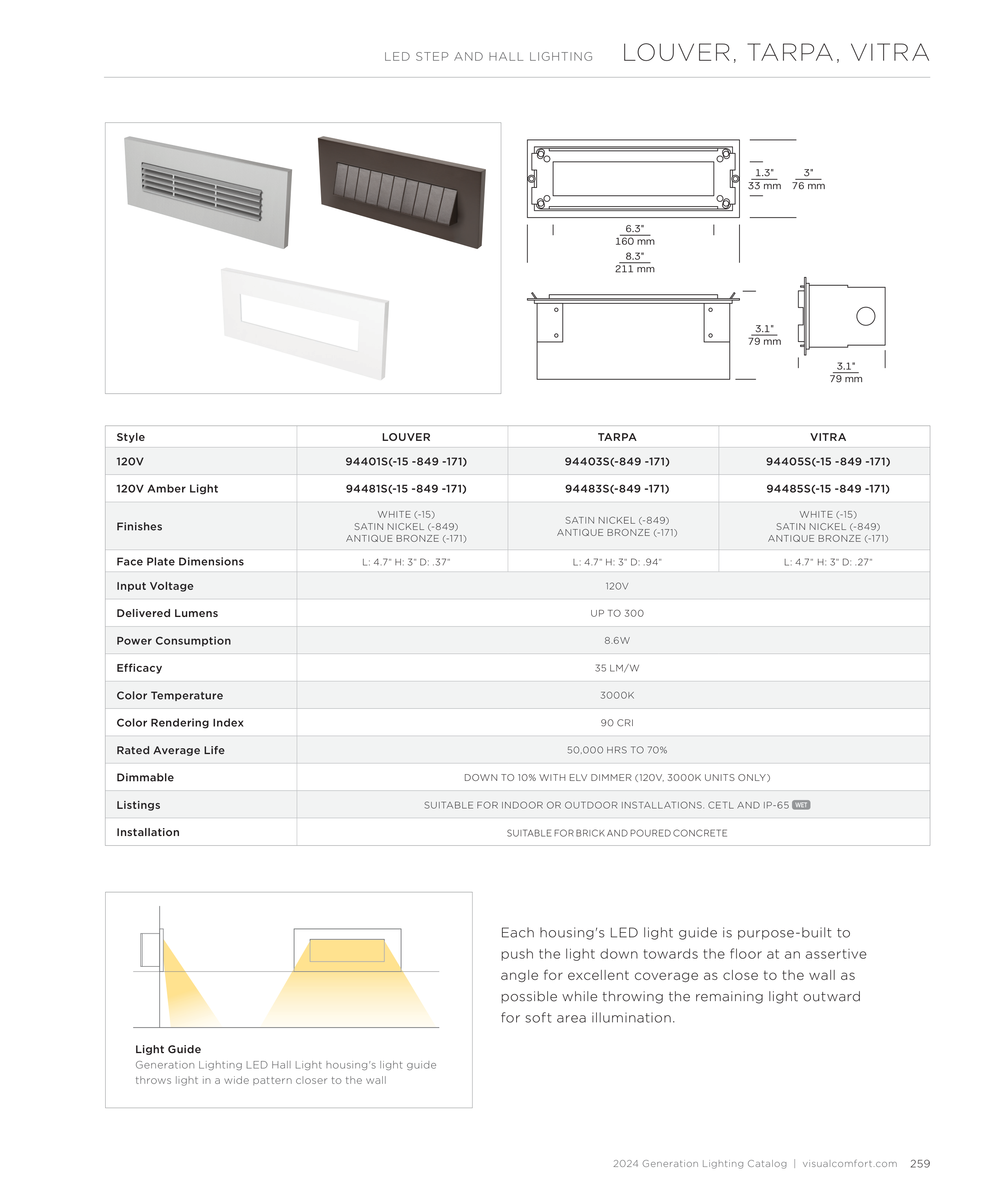

LED STEP AND HALL LIGHTING
LOUVER, TARPA, VITRA
Light Guide
Generation Lighting LED Hall Light housing's light guide
throws light in a wide pattern closer to the wall
Each housing's LED light guide is purpose-built to
push the light down towards the floor at an assertive
angle for excellent coverage as close to the wall as
possible while throwing the remaining light outward
for soft area illumination.
