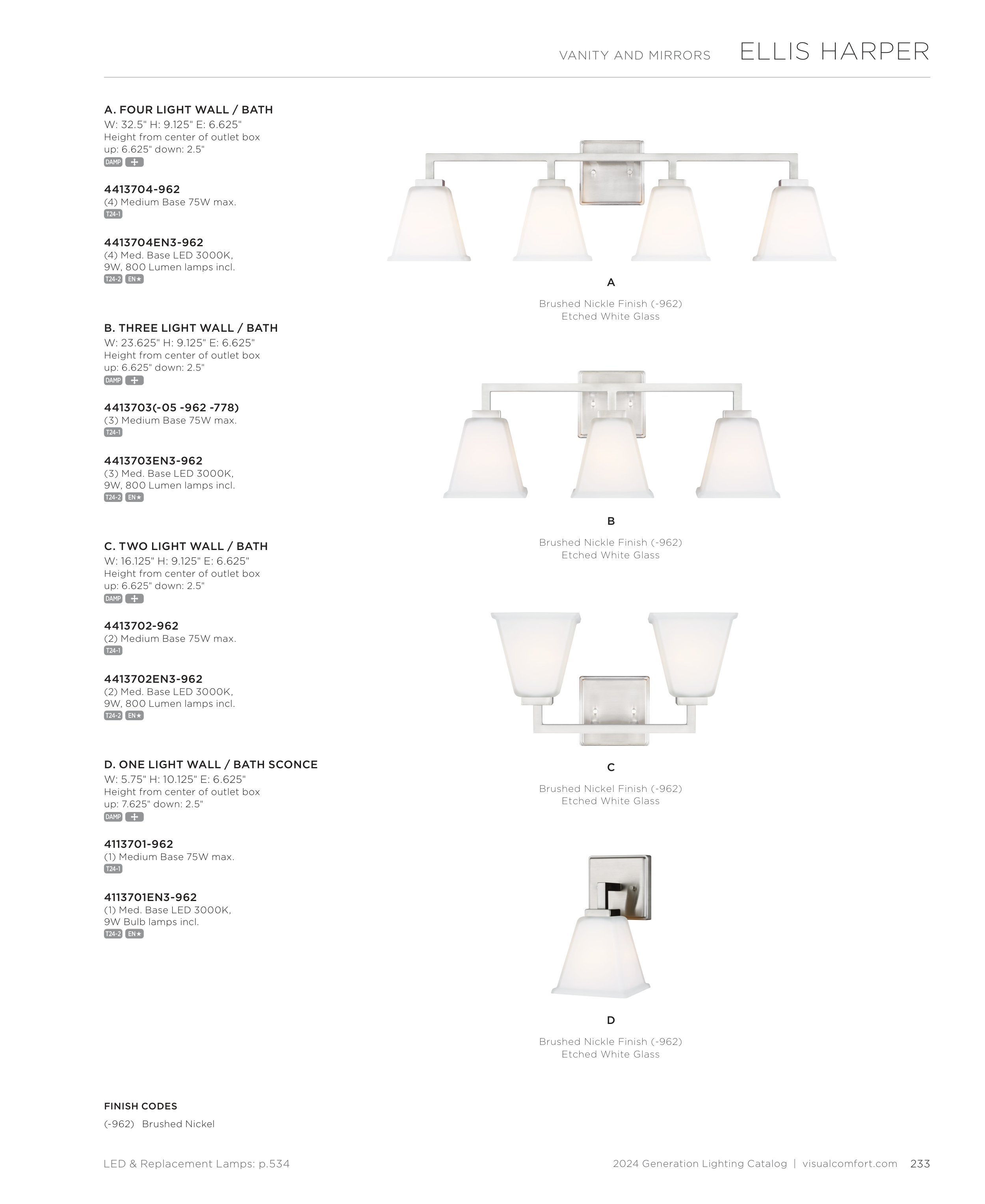

VANITY AND MIRRORS
ELLIS HARPER
Brushed Nickle Finish (-962)
Etched White Glass
B
Brushed Nickel Finish (-962)
Etched White Glass
C
B. THREE LIGHT WALL / BATH
W: 23.625" H: 9.125" E: 6.625"
Height from center of outlet box
up: 6.625" down: 2.5"
DAMP
4413703(-05 -962 -778)
(3) Medium Base 75W max.
T24-1
4413703EN3-962
(3) Med. Base LED 3000K,
9W, 800 Lumen lamps incl.
T24-2 EN
C. TWO LIGHT WALL / BATH
W: 16.125" H: 9.125" E: 6.625"
Height from center of outlet box
up: 6.625" down: 2.5"
DAMP
4413702-962
(2) Medium Base 75W max.
T24-1
4413702EN3-962
(2) Med. Base LED 3000K,
9W, 800 Lumen lamps incl.
T24-2 EN
A. FOUR LIGHT WALL / BATH
W: 32.5" H: 9.125" E: 6.625"
Height from center of outlet box
up: 6.625" down: 2.5"
DAMP
4413704-962
(4) Medium Base 75W max.
T24-1
4413704EN3-962
(4) Med. Base LED 3000K,
9W, 800 Lumen lamps incl.
T24-2 EN
D. ONE LIGHT WALL / BATH SCONCE
W: 5.75" H: 10.125" E: 6.625"
Height from center of outlet box
up: 7.625" down: 2.5"
DAMP
4113701-962
(1) Medium Base 75W max.
T24-1
4113701EN3-962
(1) Med. Base LED 3000K,
9W Bulb lamps incl.
T24-2 EN
FINISH CODES
(-962) Brushed Nickel
Brushed Nickle Finish (-962)
Etched White Glass
A
Brushed Nickle Finish (-962)
Etched White Glass
D
LED & Replacement Lamps: p.534
233
2024 Generation Lighting Catalog | visualcomfort.com
