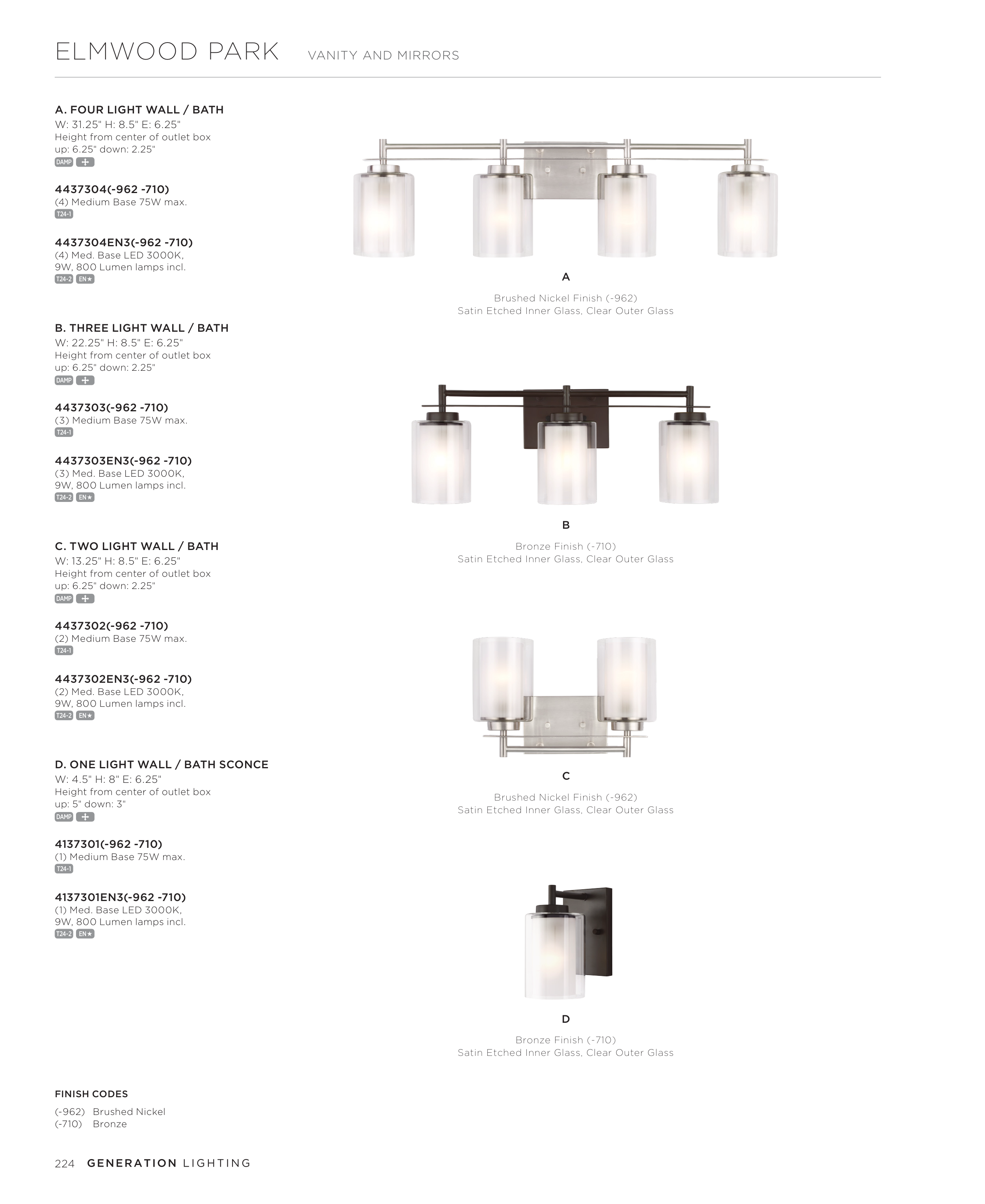

ELMWOOD PARK
VANITY AND MIRRORS
A. FOUR LIGHT WALL / BATH
W: 31.25" H: 8.5" E: 6.25"
Height from center of outlet box
up: 6.25" down: 2.25"
DAMP
4437304(-962 -710)
(4) Medium Base 75W max.
T24-1
4437304EN3(-962 -710)
(4) Med. Base LED 3000K,
9W, 800 Lumen lamps incl.
T24-2 EN
C. TWO LIGHT WALL / BATH
W: 13.25" H: 8.5" E: 6.25"
Height from center of outlet box
up: 6.25" down: 2.25"
DAMP
4437302(-962 -710)
(2) Medium Base 75W max.
T24-1
4437302EN3(-962 -710)
(2) Med. Base LED 3000K,
9W, 800 Lumen lamps incl.
T24-2 EN
B. THREE LIGHT WALL / BATH
W: 22.25" H: 8.5" E: 6.25"
Height from center of outlet box
up: 6.25" down: 2.25"
DAMP
4437303(-962 -710)
(3) Medium Base 75W max.
T24-1
4437303EN3(-962 -710)
(3) Med. Base LED 3000K,
9W, 800 Lumen lamps incl.
T24-2 EN
D. ONE LIGHT WALL / BATH SCONCE
W: 4.5" H: 8" E: 6.25"
Height from center of outlet box
up: 5" down: 3"
DAMP
4137301(-962 -710)
(1) Medium Base 75W max.
T24-1
4137301EN3(-962 -710)
(1) Med. Base LED 3000K,
9W, 800 Lumen lamps incl.
T24-2 EN
FINISH CODES
(-962) Brushed Nickel
(-710)
Bronze
Bronze Finish (-710)
Satin Etched Inner Glass, Clear Outer Glass
B
Brushed Nickel Finish (-962)
Satin Etched Inner Glass, Clear Outer Glass
C
Brushed Nickel Finish (-962)
Satin Etched Inner Glass, Clear Outer Glass
A
Bronze Finish (-710)
Satin Etched Inner Glass, Clear Outer Glass
D
224
