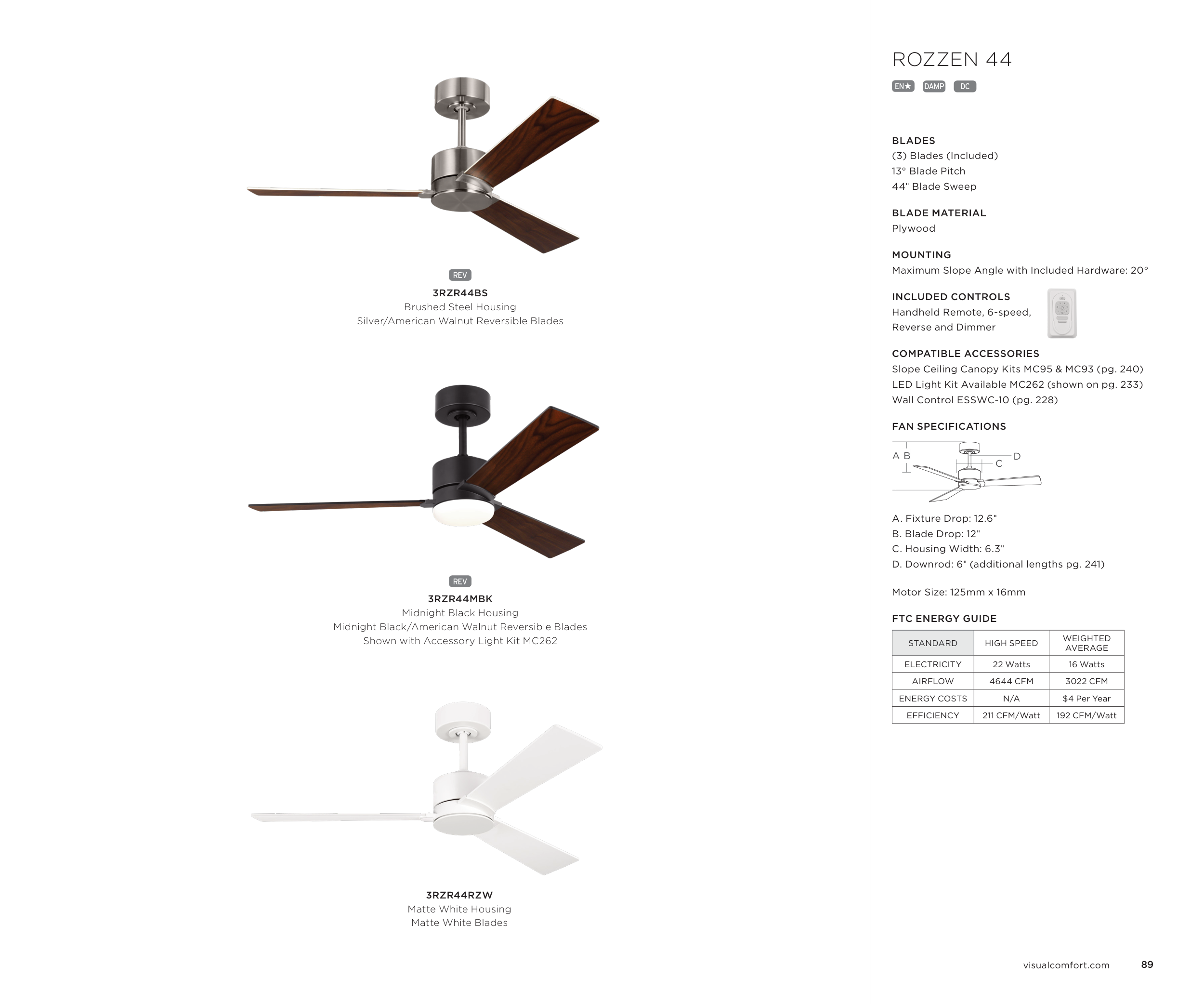

ROZZEN 44
EN★ DAMP
DC
BLADES
(3) Blades (Included)
13° Blade Pitch
44" Blade Sweep
BLADE MATERIAL
Plywood
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Handheld Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
LED Light Kit Available MC262 (shown on pg. 233)
Wall Control ESSWC-10 (pg. 228)
FAN SPECIFICATIONS
A
D
C
B
A. Fixture Drop: 12.6"
B. Blade Drop: 12"
C. Housing Width: 6.3"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 125mm x 16mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
22 Watts
16 Watts
AIRFLOW
4644 CFM
3022 CFM
ENERGY COSTS
N/A
$4 Per Year
EFFICIENCY
211 CFM/Watt
192 CFM/Watt
REV
3RZR44BS
Brushed Steel Housing
Silver/American Walnut Reversible Blades
REV
3RZR44MBK
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Shown with Accessory Light Kit MC262
3RZR44RZW
Matte White Housing
Matte White Blades
89
visualcomfort.com
