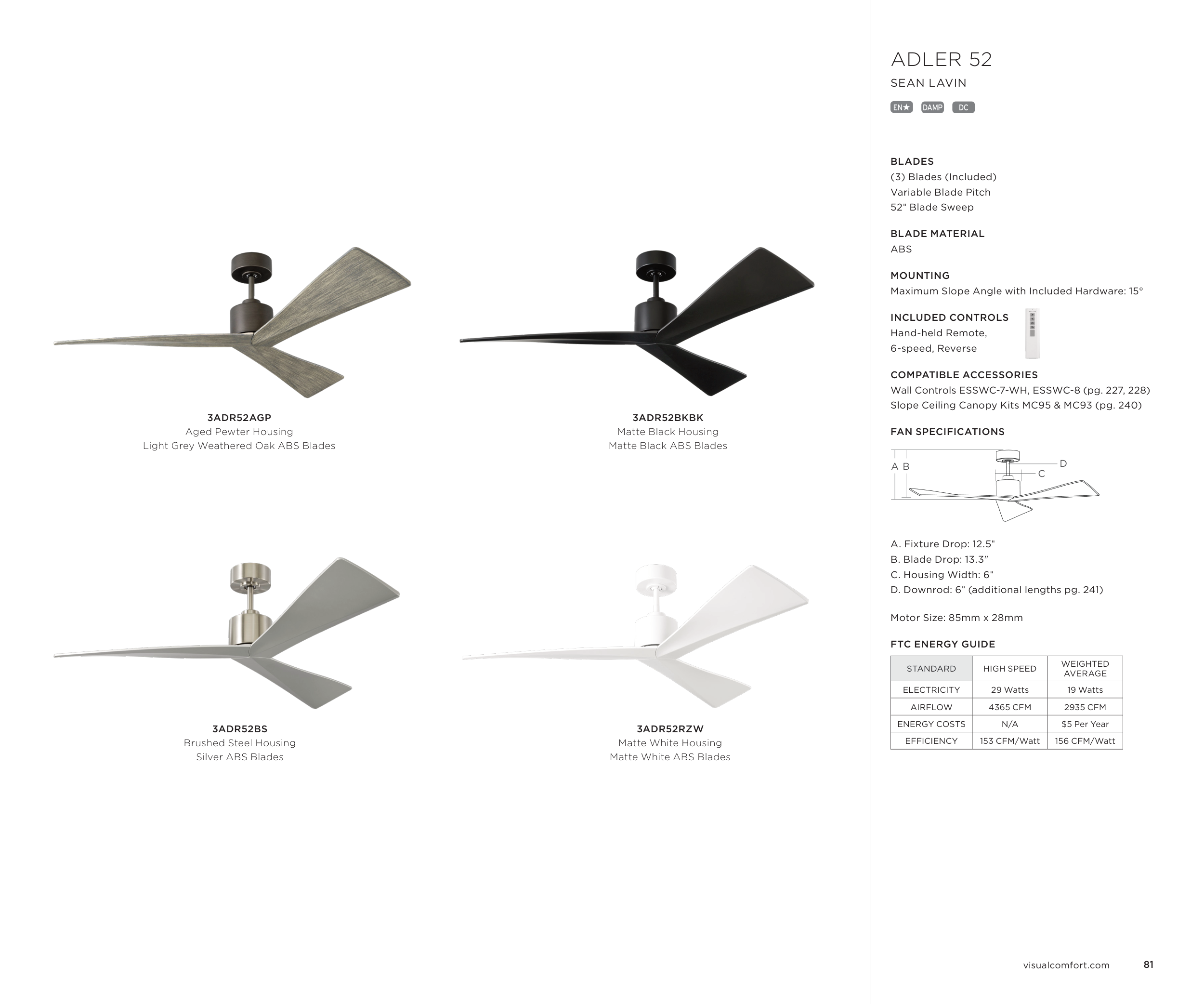

ADLER 52
SEAN LAVIN
EN★ DAMP
DC
BLADES
(3) Blades (Included)
Variable Blade Pitch
52" Blade Sweep
BLADE MATERIAL
ABS
MOUNTING
Maximum Slope Angle with Included Hardware: 15°
INCLUDED CONTROLS
Hand-held Remote,
6-speed, Reverse
COMPATIBLE ACCESSORIES
Wall Controls ESSWC-7-WH, ESSWC-8 (pg. 227, 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 12.5"
B. Blade Drop: 13.3"
C. Housing Width: 6"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 85mm x 28mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
29 Watts
19 Watts
AIRFLOW
4365 CFM
2935 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
153 CFM/Watt
156 CFM/Watt
3ADR52AGP
Aged Pewter Housing
Light Grey Weathered Oak ABS Blades
3ADR52BKBK
Matte Black Housing
Matte Black ABS Blades
3ADR52BS
Brushed Steel Housing
Silver ABS Blades
3ADR52RZW
Matte White Housing
Matte White ABS Blades
81
