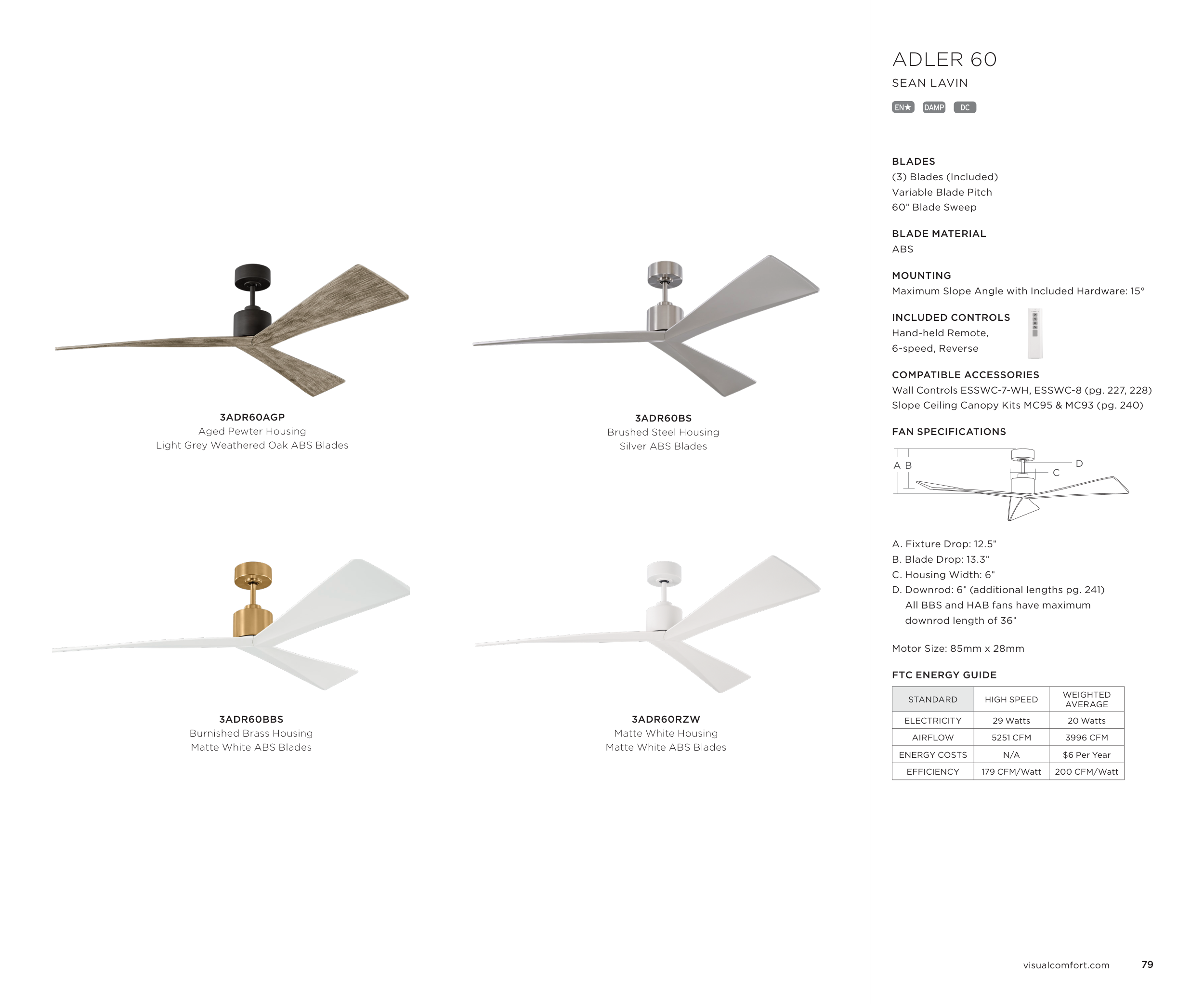

ADLER 60
SEAN LAVIN
EN★ DAMP
DC
BLADES
(3) Blades (Included)
Variable Blade Pitch
60" Blade Sweep
BLADE MATERIAL
ABS
MOUNTING
Maximum Slope Angle with Included Hardware: 15°
INCLUDED CONTROLS
Hand-held Remote,
6-speed, Reverse
COMPATIBLE ACCESSORIES
Wall Controls ESSWC-7-WH, ESSWC-8 (pg. 227, 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 12.5"
B. Blade Drop: 13.3"
C. Housing Width: 6"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 85mm x 28mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
29 Watts
20 Watts
AIRFLOW
5251 CFM
3996 CFM
ENERGY COSTS
N/A
$6 Per Year
EFFICIENCY
179 CFM/Watt
200 CFM/Watt
3ADR60RZW
Matte White Housing
Matte White ABS Blades
3ADR60BBS
Burnished Brass Housing
Matte White ABS Blades
3ADR60AGP
Aged Pewter Housing
Light Grey Weathered Oak ABS Blades
3ADR60BS
Brushed Steel Housing
Silver ABS Blades
79
