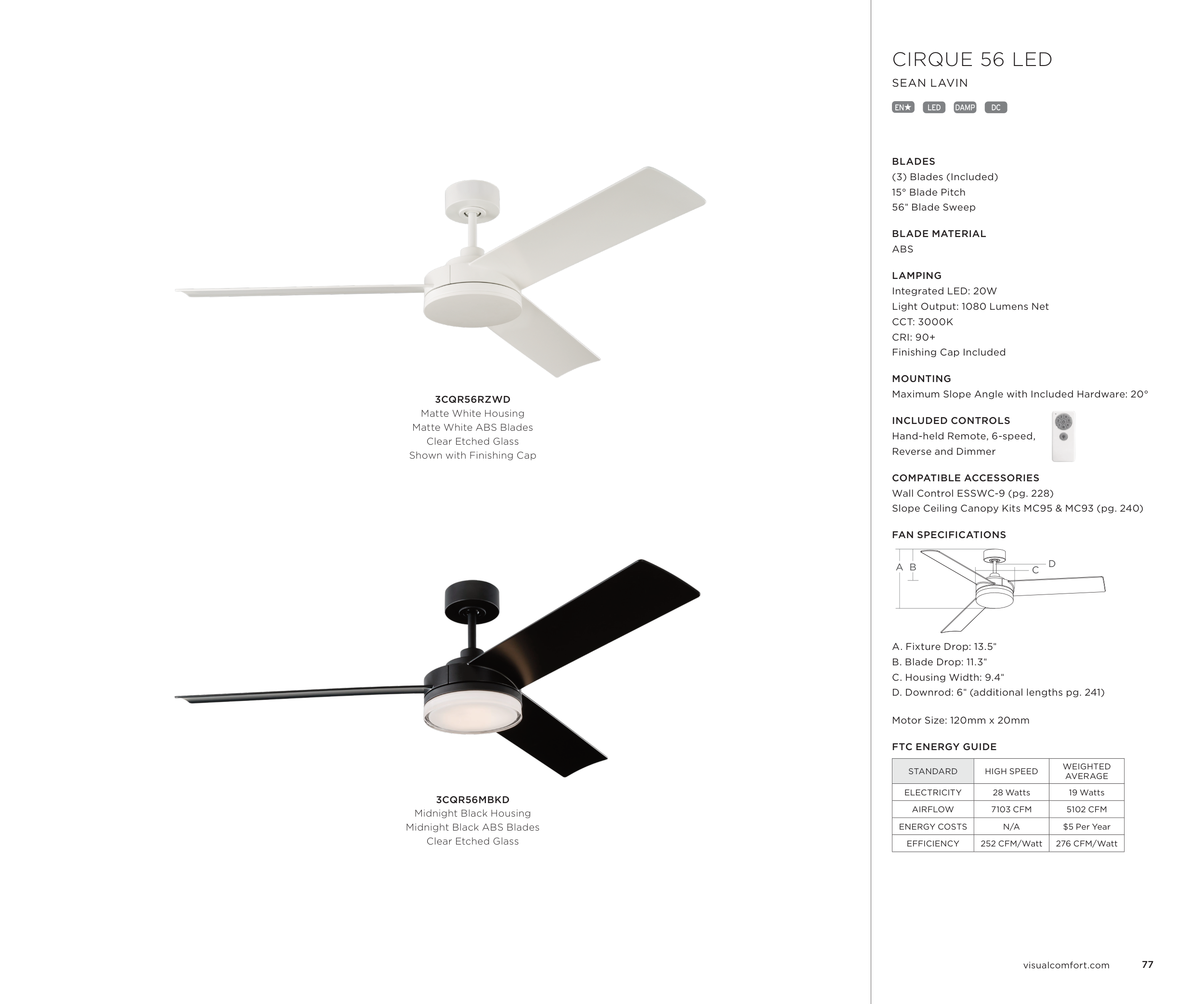

CIRQUE 56 LED
SEAN LAVIN
EN★ LED DAMP
DC
BLADES
(3) Blades (Included)
15° Blade Pitch
56" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 1080 Lumens Net
CCT: 3000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-9 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
C
D
B
A
A. Fixture Drop: 13.5"
B. Blade Drop: 11.3"
C. Housing Width: 9.4"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 120mm x 20mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
28 Watts
19 Watts
AIRFLOW
7103 CFM
5102 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
252 CFM/Watt
276 CFM/Watt
3CQR56MBKD
Midnight Black Housing
Midnight Black ABS Blades
Clear Etched Glass
3CQR56RZWD
Matte White Housing
Matte White ABS Blades
Clear Etched Glass
Shown with Finishing Cap
77
visualcomfort.com
