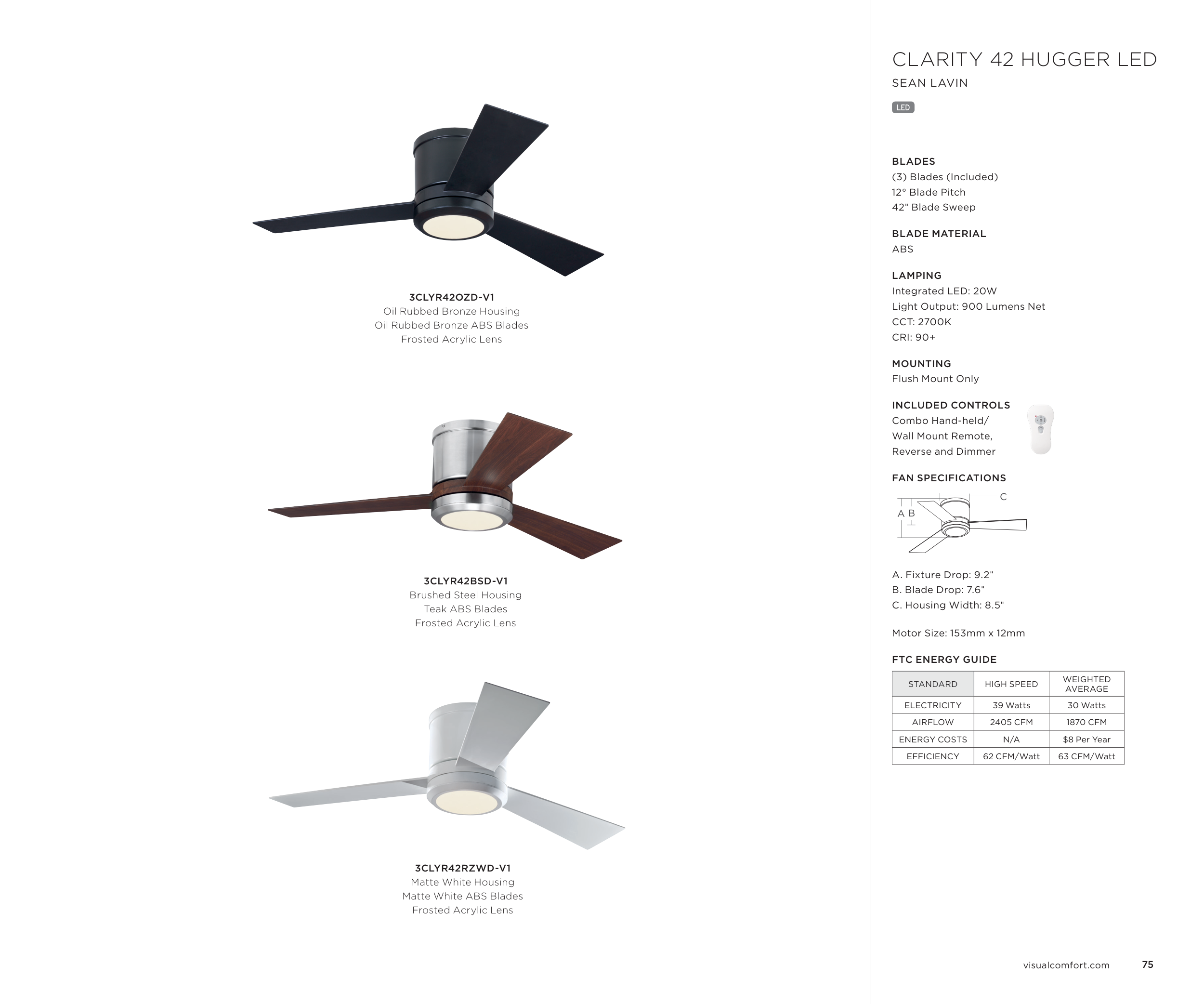

CLARITY 42 HUGGER LED
SEAN LAVIN
LED
BLADES
(3) Blades (Included)
12° Blade Pitch
42" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 900 Lumens Net
CCT: 2700K
CRI: 90+
MOUNTING
Flush Mount Only
INCLUDED CONTROLS
Combo Hand-held/
Wall Mount Remote,
Reverse and Dimmer
FAN SPECIFICATIONS
A B
C
A. Fixture Drop: 9.2"
B. Blade Drop: 7.6"
C. Housing Width: 8.5"
Motor Size: 153mm x 12mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
39 Watts
30 Watts
AIRFLOW
2405 CFM
1870 CFM
ENERGY COSTS
N/A
$8 Per Year
EFFICIENCY
62 CFM/Watt
63 CFM/Watt
3CLYR42RZWD-V1
Matte White Housing
Matte White ABS Blades
Frosted Acrylic Lens
3CLYR42BSD-V1
Brushed Steel Housing
Teak ABS Blades
Frosted Acrylic Lens
3CLYR42OZD-V1
Oil Rubbed Bronze Housing
Oil Rubbed Bronze ABS Blades
Frosted Acrylic Lens
75
