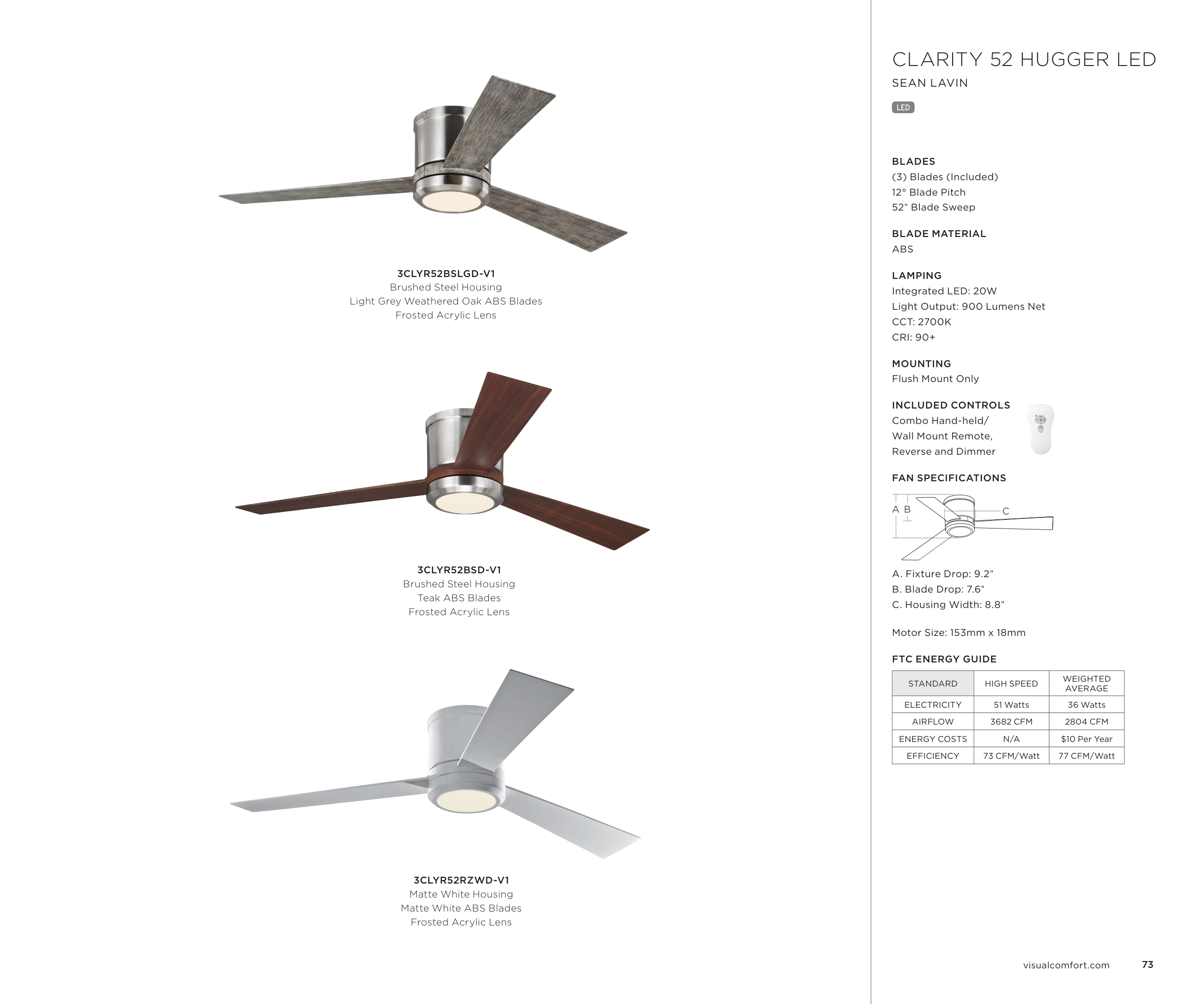

CLARITY 52 HUGGER LED
SEAN LAVIN
LED
BLADES
(3) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 900 Lumens Net
CCT: 2700K
CRI: 90+
MOUNTING
Flush Mount Only
INCLUDED CONTROLS
Combo Hand-held/
Wall Mount Remote,
Reverse and Dimmer
FAN SPECIFICATIONS
A B
C
A. Fixture Drop: 9.2"
B. Blade Drop: 7.6"
C. Housing Width: 8.8"
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
51 Watts
36 Watts
AIRFLOW
3682 CFM
2804 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
73 CFM/Watt
77 CFM/Watt
3CLYR52RZWD-V1
Matte White Housing
Matte White ABS Blades
Frosted Acrylic Lens
3CLYR52BSD-V1
Brushed Steel Housing
Teak ABS Blades
Frosted Acrylic Lens
3CLYR52BSLGD-V1
Brushed Steel Housing
Light Grey Weathered Oak ABS Blades
Frosted Acrylic Lens
73
visualcomfort.com
