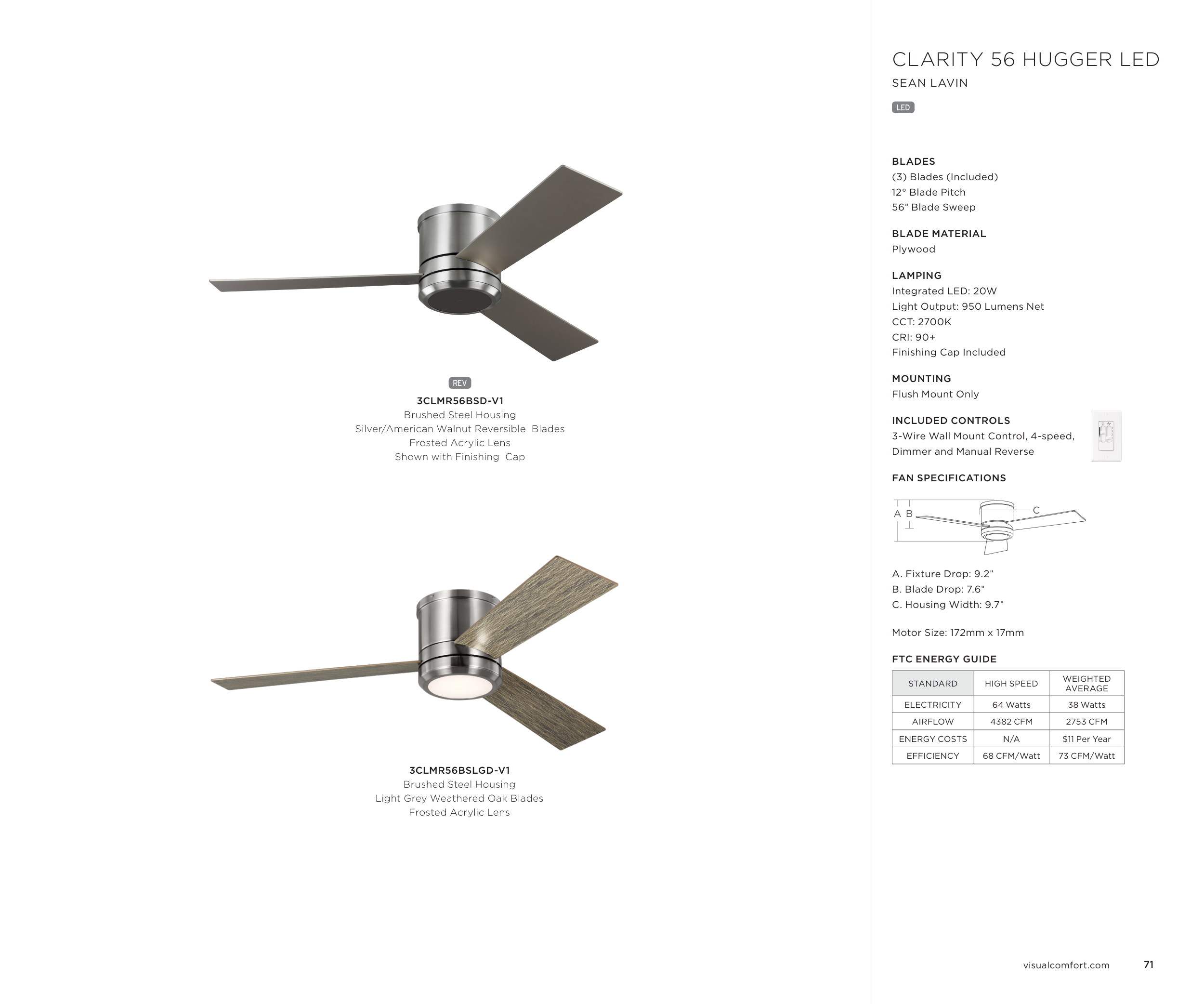

CLARITY 56 HUGGER LED
SEAN LAVIN
LED
BLADES
(3) Blades (Included)
12° Blade Pitch
56" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 950 Lumens Net
CCT: 2700K
CRI: 90+
Finishing Cap Included
MOUNTING
Flush Mount Only
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
FAN SPECIFICATIONS
A B
C
A. Fixture Drop: 9.2"
B. Blade Drop: 7.6"
C. Housing Width: 9.7"
Motor Size: 172mm x 17mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
64 Watts
38 Watts
AIRFLOW
4382 CFM
2753 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
68 CFM/Watt
73 CFM/Watt
3CLMR56BSLGD-V1
Brushed Steel Housing
Light Grey Weathered Oak Blades
Frosted Acrylic Lens
REV
3CLMR56BSD-V1
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
Shown with Finishing Cap
71
visualcomfort.com
