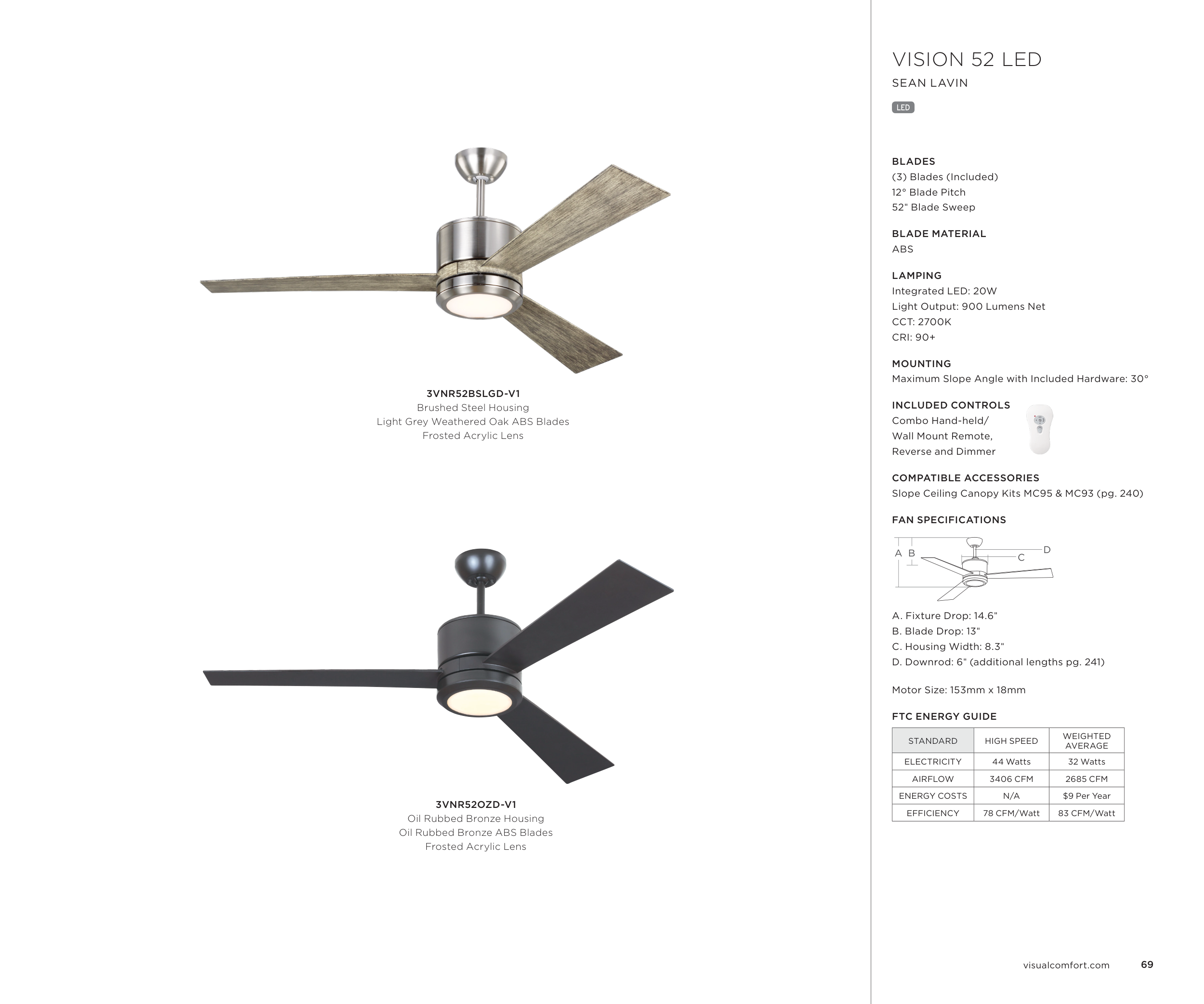

VISION 52 LED
SEAN LAVIN
LED
BLADES
(3) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 900 Lumens Net
CCT: 2700K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Combo Hand-held/
Wall Mount Remote,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 14.6"
B. Blade Drop: 13"
C. Housing Width: 8.3"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
44 Watts
32 Watts
AIRFLOW
3406 CFM
2685 CFM
ENERGY COSTS
N/A
$9 Per Year
EFFICIENCY
78 CFM/Watt
83 CFM/Watt
3VNR52OZD-V1
Oil Rubbed Bronze Housing
Oil Rubbed Bronze ABS Blades
Frosted Acrylic Lens
3VNR52BSLGD-V1
Brushed Steel Housing
Light Grey Weathered Oak ABS Blades
Frosted Acrylic Lens
69
visualcomfort.com
