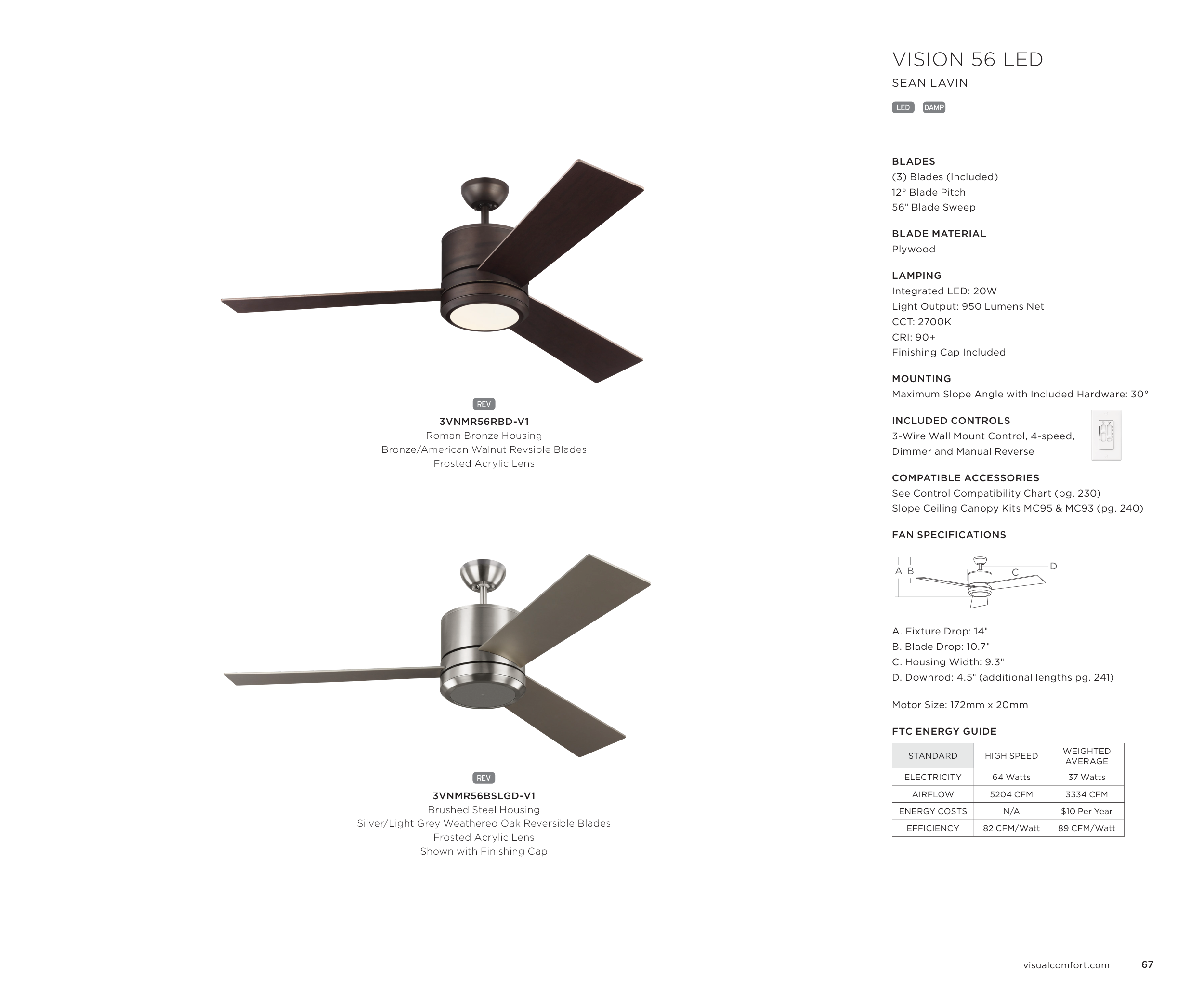

VISION 56 LED
SEAN LAVIN
LED DAMP
BLADES
(3) Blades (Included)
12° Blade Pitch
56" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 950 Lumens Net
CCT: 2700K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 14"
B. Blade Drop: 10.7"
C. Housing Width: 9.3"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 172mm x 20mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
64 Watts
37 Watts
AIRFLOW
5204 CFM
3334 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
82 CFM/Watt
89 CFM/Watt
REV
3VNMR56BSLGD-V1
Brushed Steel Housing
Silver/Light Grey Weathered Oak Reversible Blades
Frosted Acrylic Lens
Shown with Finishing Cap
REV
3VNMR56RBD-V1
Roman Bronze Housing
Bronze/American Walnut Revsible Blades
Frosted Acrylic Lens
67
visualcomfort.com
