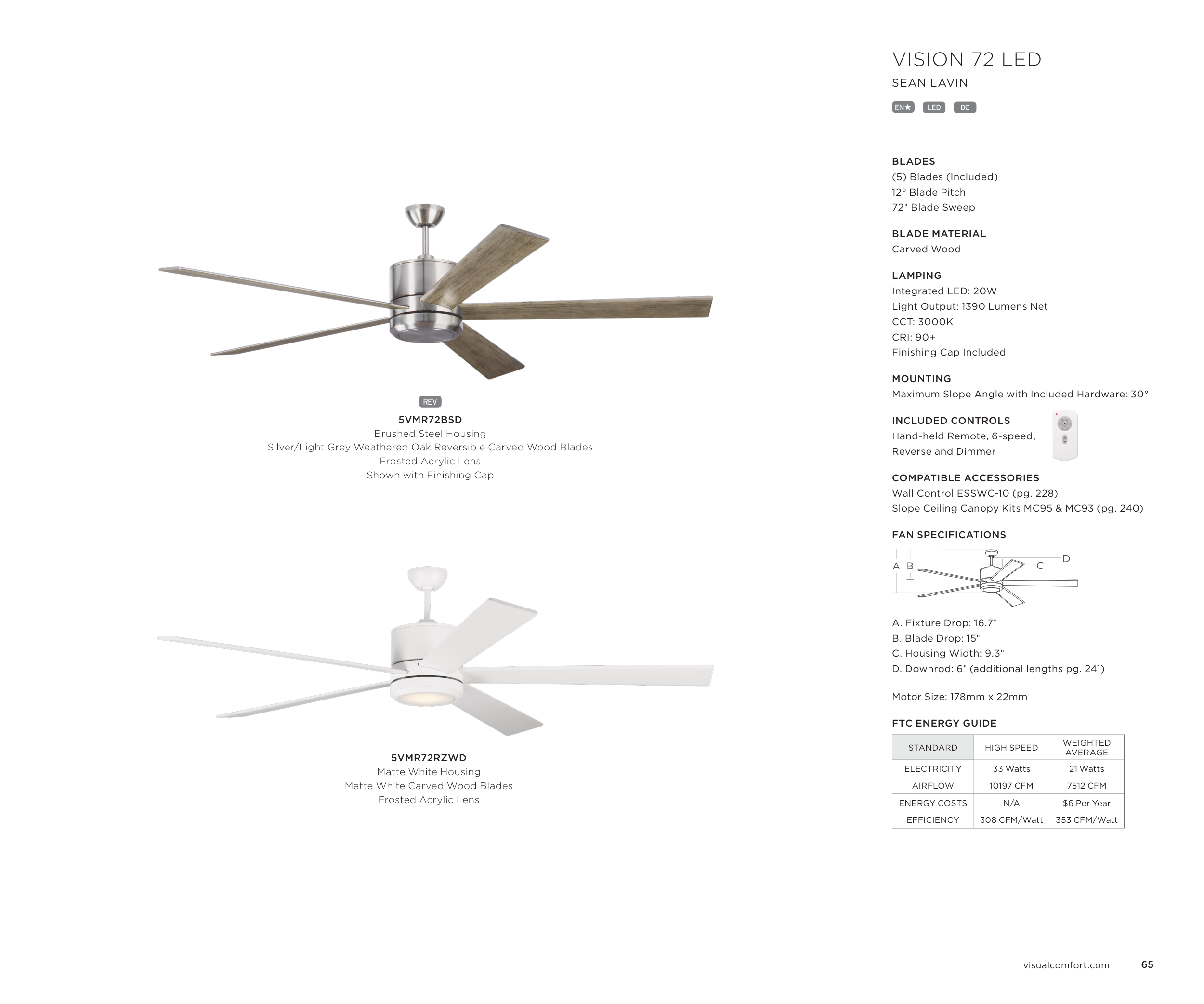

VISION 72 LED
SEAN LAVIN
EN★ LED
DC
BLADES
(5) Blades (Included)
12° Blade Pitch
72" Blade Sweep
BLADE MATERIAL
Carved Wood
LAMPING
Integrated LED: 20W
Light Output: 1390 Lumens Net
CCT: 3000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-10 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 16.7"
B. Blade Drop: 15"
C. Housing Width: 9.3"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 178mm x 22mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
33 Watts
21 Watts
AIRFLOW
10197 CFM
7512 CFM
ENERGY COSTS
N/A
$6 Per Year
EFFICIENCY
308 CFM/Watt
353 CFM/Watt
REV
5VMR72BSD
Brushed Steel Housing
Silver/Light Grey Weathered Oak Reversible Carved Wood Blades
Frosted Acrylic Lens
Shown with Finishing Cap
5VMR72RZWD
Matte White Housing
Matte White Carved Wood Blades
Frosted Acrylic Lens
65
