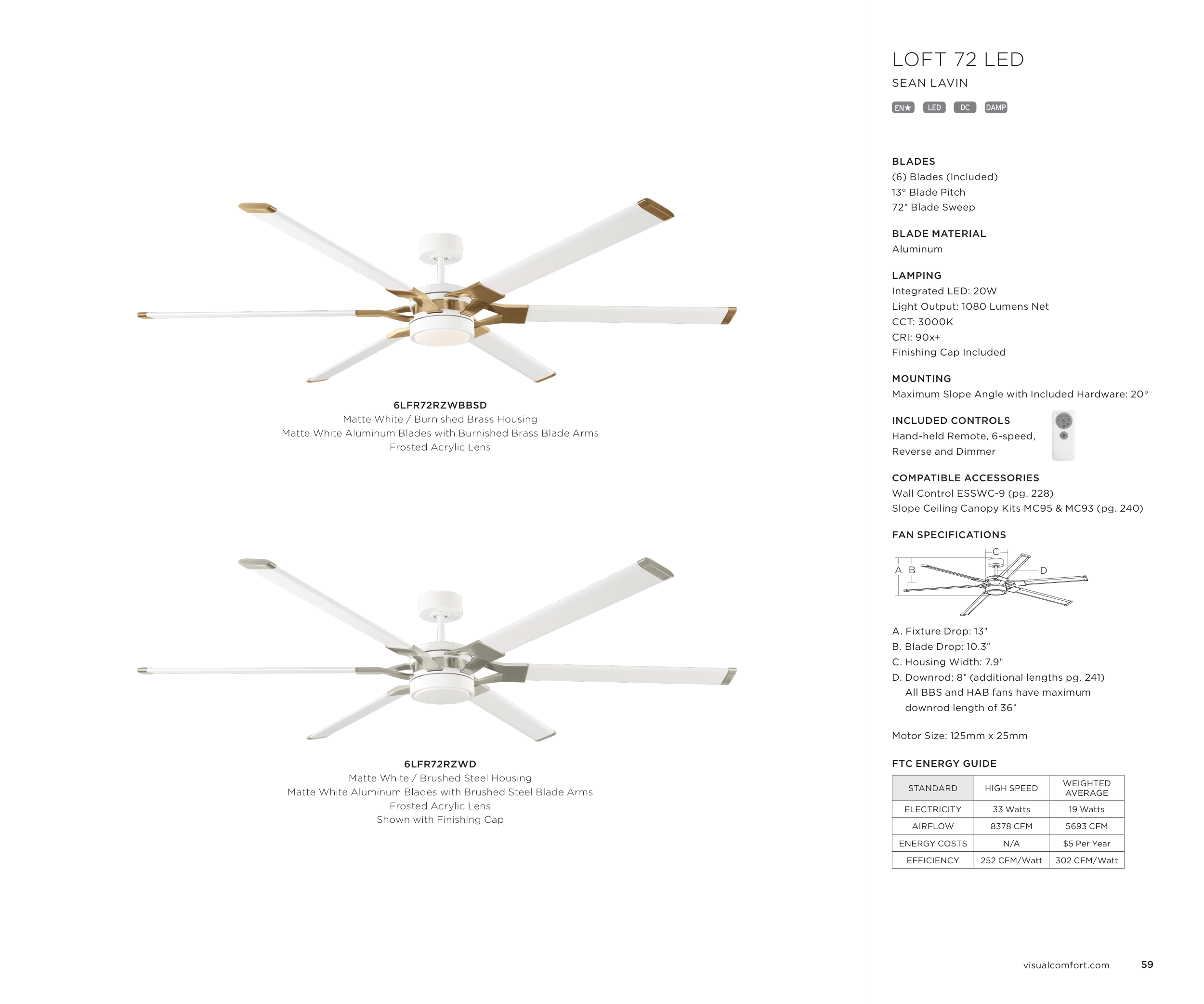

LOFT 72 LED
SEAN LAVIN
EN★ LED
DC DAMP
BLADES
(6) Blades (Included)
13° Blade Pitch
72" Blade Sweep
BLADE MATERIAL
Aluminum
LAMPING
Integrated LED: 20W
Light Output: 1080 Lumens Net
CCT: 3000K
CRI: 90x+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-9 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 13"
B. Blade Drop: 10.3"
C. Housing Width: 7.9"
D. Downrod: 8" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 125mm x 25mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
33 Watts
19 Watts
AIRFLOW
8378 CFM
5693 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
252 CFM/Watt
302 CFM/Watt
6LFR72RZWD
Matte White / Brushed Steel Housing
Matte White Aluminum Blades with Brushed Steel Blade Arms
Frosted Acrylic Lens
Shown with Finishing Cap
6LFR72RZWBBSD
Matte White / Burnished Brass Housing
Matte White Aluminum Blades with Burnished Brass Blade Arms
Frosted Acrylic Lens
59
visualcomfort.com
