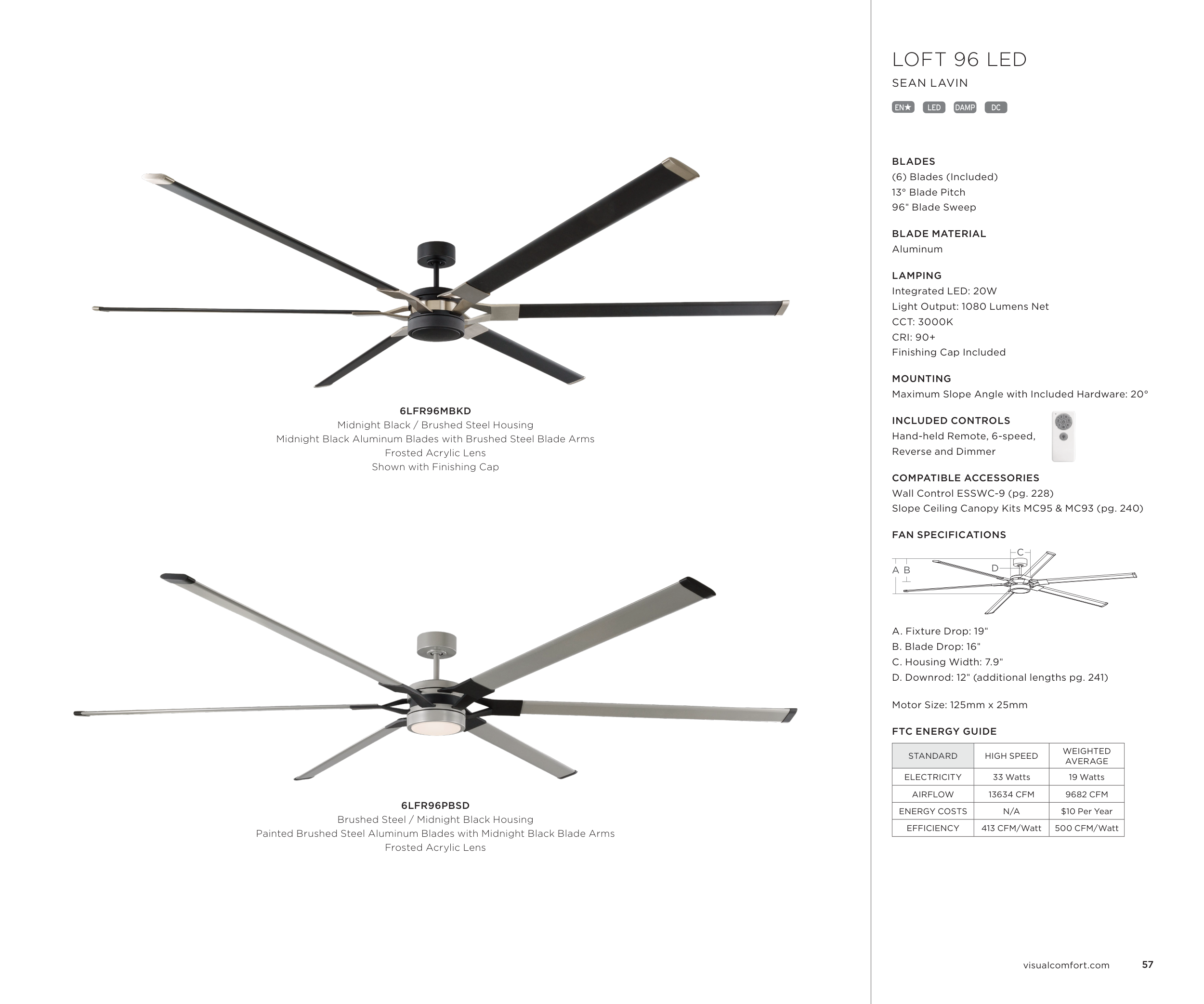

LOFT 96 LED
SEAN LAVIN
EN★ LED DAMP
DC
BLADES
(6) Blades (Included)
13° Blade Pitch
96" Blade Sweep
BLADE MATERIAL
Aluminum
LAMPING
Integrated LED: 20W
Light Output: 1080 Lumens Net
CCT: 3000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-9 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 19"
B. Blade Drop: 16"
C. Housing Width: 7.9"
D. Downrod: 12" (additional lengths pg. 241)
Motor Size: 125mm x 25mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
33 Watts
19 Watts
AIRFLOW
13634 CFM
9682 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
413 CFM/Watt
500 CFM/Watt
6LFR96PBSD
Brushed Steel / Midnight Black Housing
Painted Brushed Steel Aluminum Blades with Midnight Black Blade Arms
Frosted Acrylic Lens
6LFR96MBKD
Midnight Black / Brushed Steel Housing
Midnight Black Aluminum Blades with Brushed Steel Blade Arms
Frosted Acrylic Lens
Shown with Finishing Cap
57
visualcomfort.com
