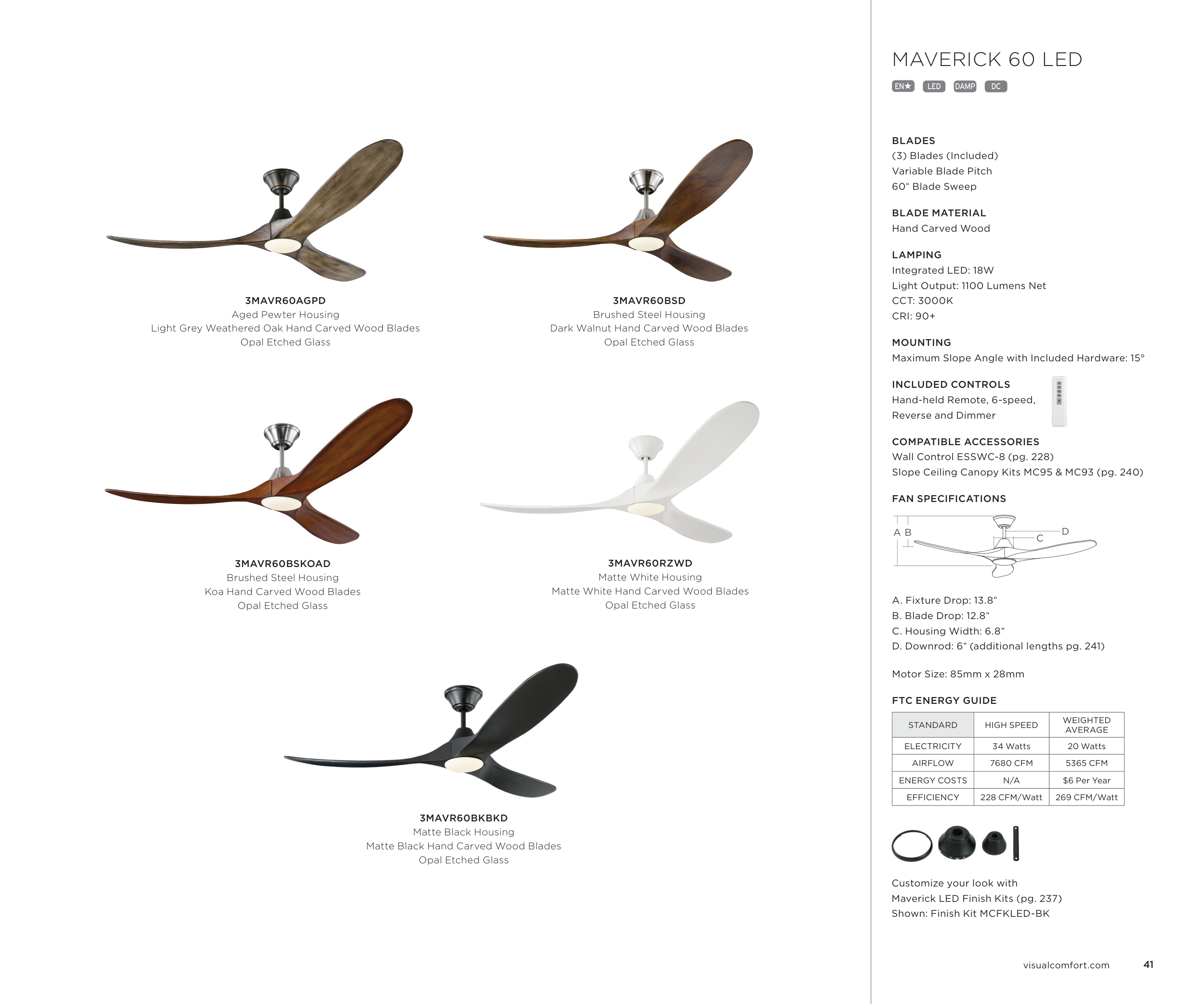

MAVERICK 60 LED
EN★ LED DAMP
DC
BLADES
(3) Blades (Included)
Variable Blade Pitch
60" Blade Sweep
BLADE MATERIAL
Hand Carved Wood
LAMPING
Integrated LED: 18W
Light Output: 1100 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 15°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-8 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 13.8"
B. Blade Drop: 12.8"
C. Housing Width: 6.8"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 85mm x 28mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
34 Watts
20 Watts
AIRFLOW
7680 CFM
5365 CFM
ENERGY COSTS
N/A
$6 Per Year
EFFICIENCY
228 CFM/Watt
269 CFM/Watt
3MAVR60BKBKD
Matte Black Housing
Matte Black Hand Carved Wood Blades
Opal Etched Glass
3MAVR60AGPD
Aged Pewter Housing
Light Grey Weathered Oak Hand Carved Wood Blades
Opal Etched Glass
3MAVR60BSD
Brushed Steel Housing
Dark Walnut Hand Carved Wood Blades
Opal Etched Glass
3MAVR60RZWD
Matte White Housing
Matte White Hand Carved Wood Blades
Opal Etched Glass
3MAVR60BSKOAD
Brushed Steel Housing
Koa Hand Carved Wood Blades
Opal Etched Glass
Customize your look with
Maverick LED Finish Kits (pg. 237)
Shown: Finish Kit MCFKLED-BK
41
visualcomfort.com
