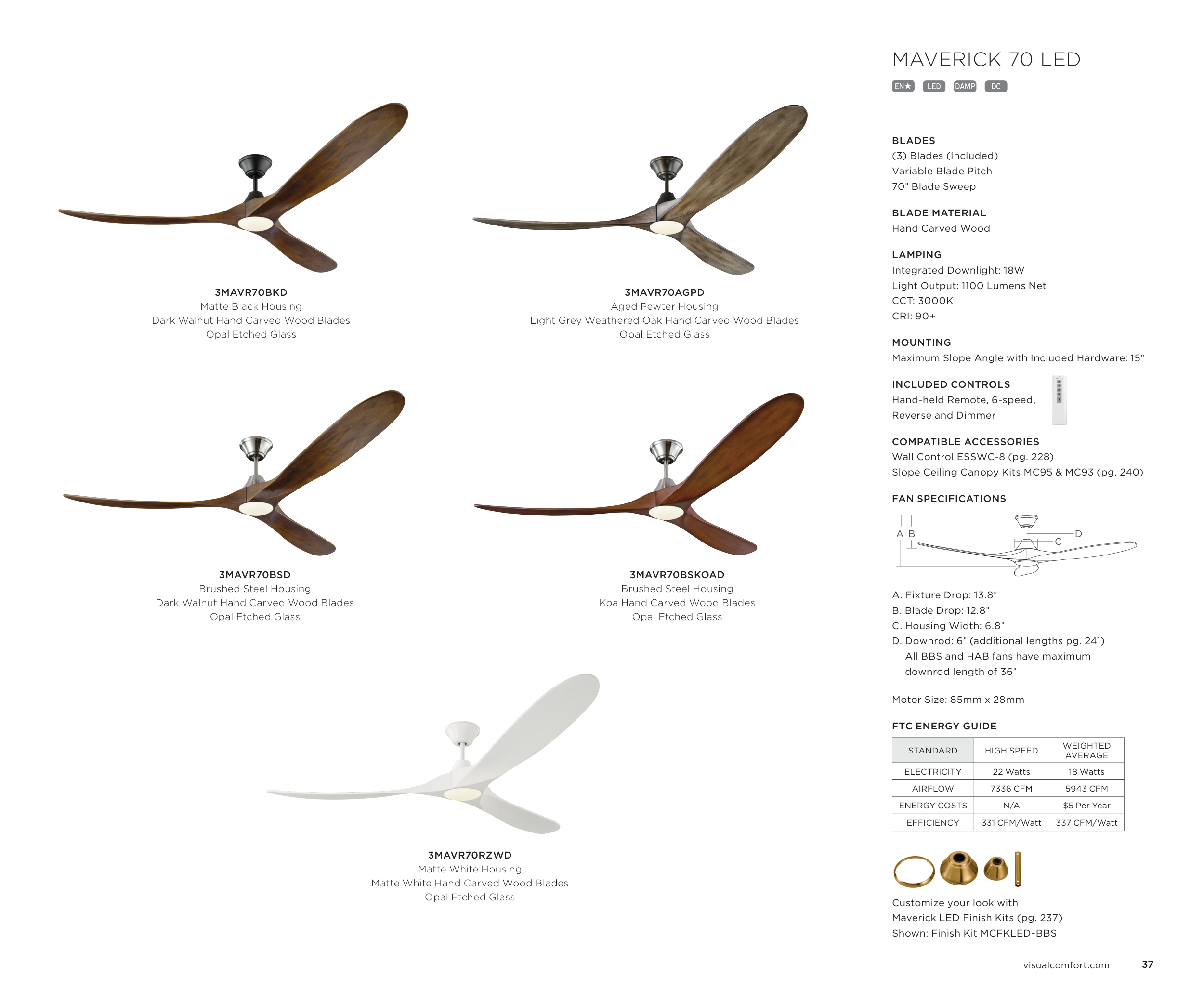

MAVERICK 70 LED
EN★ LED DAMP
DC
BLADES
(3) Blades (Included)
Variable Blade Pitch
70" Blade Sweep
BLADE MATERIAL
Hand Carved Wood
LAMPING
Integrated Downlight: 18W
Light Output: 1100 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 15°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-8 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 13.8"
B. Blade Drop: 12.8"
C. Housing Width: 6.8"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 85mm x 28mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
22 Watts
18 Watts
AIRFLOW
7336 CFM
5943 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
331 CFM/Watt
337 CFM/Watt
3MAVR70BSD
Brushed Steel Housing
Dark Walnut Hand Carved Wood Blades
Opal Etched Glass
3MAVR70BSKOAD
Brushed Steel Housing
Koa Hand Carved Wood Blades
Opal Etched Glass
3MAVR70RZWD
Matte White Housing
Matte White Hand Carved Wood Blades
Opal Etched Glass
3MAVR70AGPD
Aged Pewter Housing
Light Grey Weathered Oak Hand Carved Wood Blades
Opal Etched Glass
3MAVR70BKD
Matte Black Housing
Dark Walnut Hand Carved Wood Blades
Opal Etched Glass
Customize your look with
Maverick LED Finish Kits (pg. 237)
Shown: Finish Kit MCFKLED-BBS
37
visualcomfort.com
