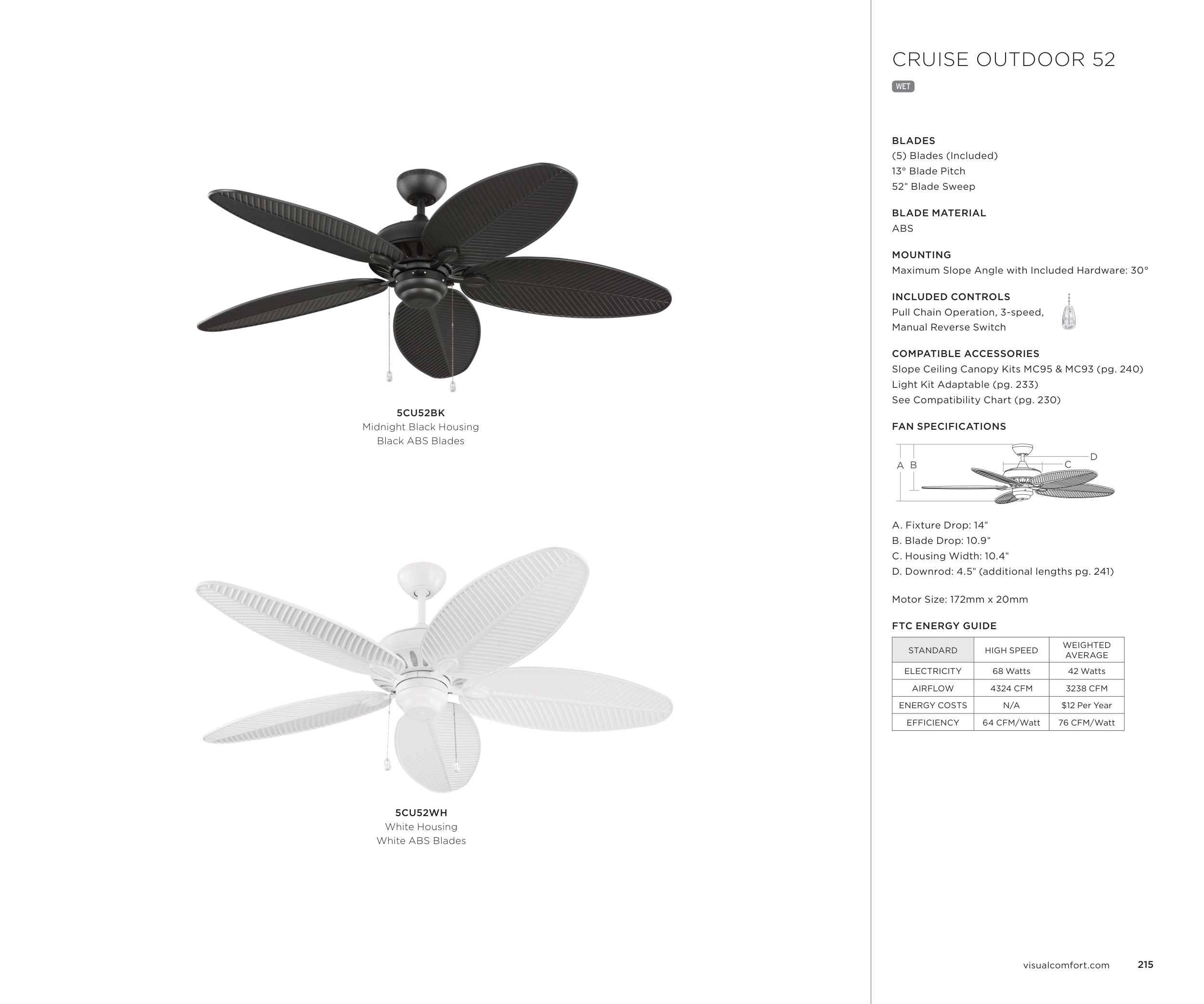

CRUISE OUTDOOR 52
WET
BLADES
(5) Blades (Included)
13° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
ABS
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
Light Kit Adaptable (pg. 233)
See Compatibility Chart (pg. 230)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 14"
B. Blade Drop: 10.9"
C. Housing Width: 10.4"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 172mm x 20mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
68 Watts
42 Watts
AIRFLOW
4324 CFM
3238 CFM
ENERGY COSTS
N/A
$12 Per Year
EFFICIENCY
64 CFM/Watt
76 CFM/Watt
5CU52WH
White Housing
White ABS Blades
5CU52BK
Midnight Black Housing
Black ABS Blades
215
