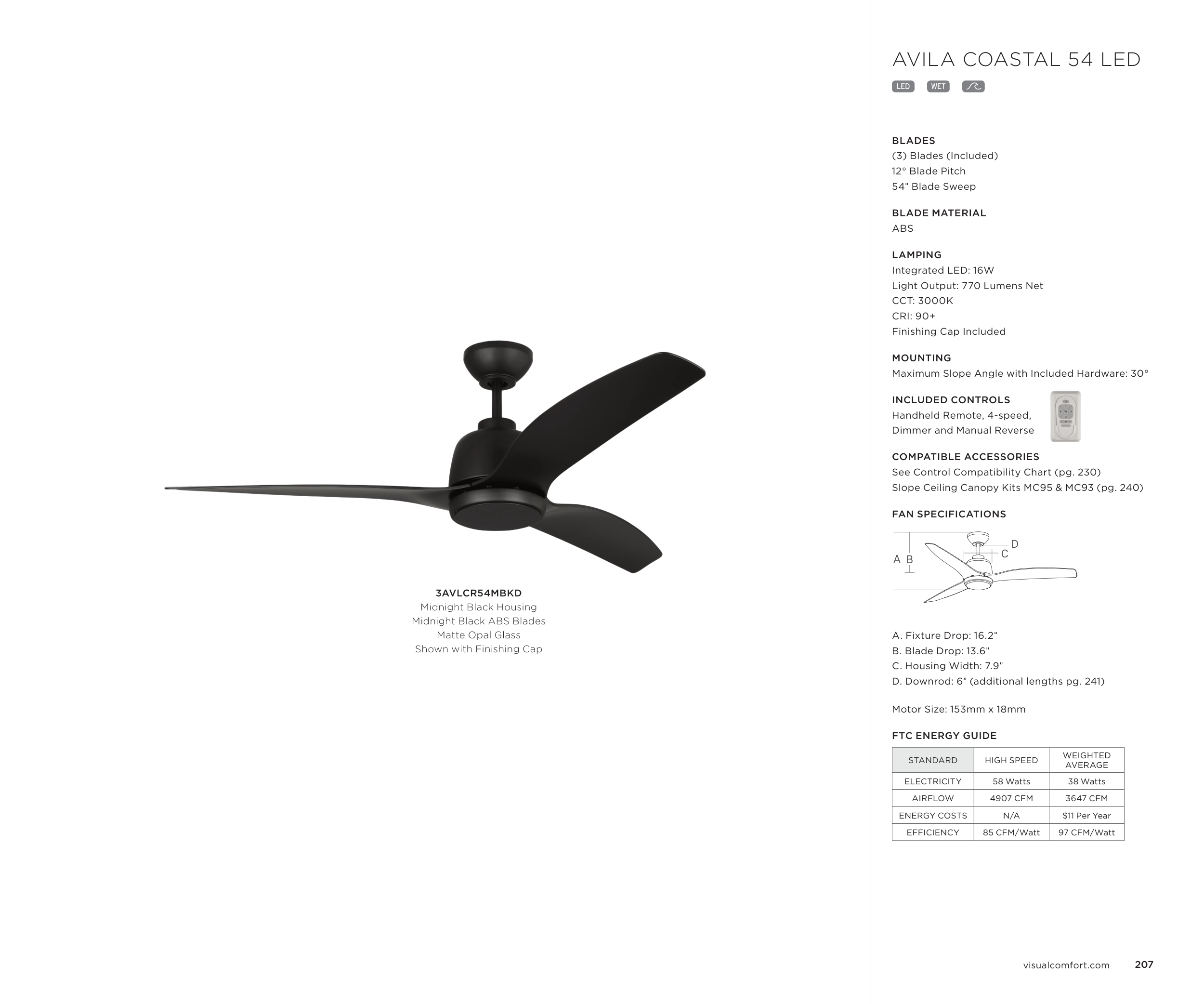

AVILA COASTAL 54 LED
LED WET
BLADES
(3) Blades (Included)
12° Blade Pitch
54" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 16W
Light Output: 770 Lumens Net
CCT: 3000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Handheld Remote, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A
D
C
B
A. Fixture Drop: 16.2"
B. Blade Drop: 13.6"
C. Housing Width: 7.9"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
58 Watts
38 Watts
AIRFLOW
4907 CFM
3647 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
85 CFM/Watt
97 CFM/Watt
3AVLCR54MBKD
Midnight Black Housing
Midnight Black ABS Blades
Matte Opal Glass
Shown with Finishing Cap
207
visualcomfort.com
