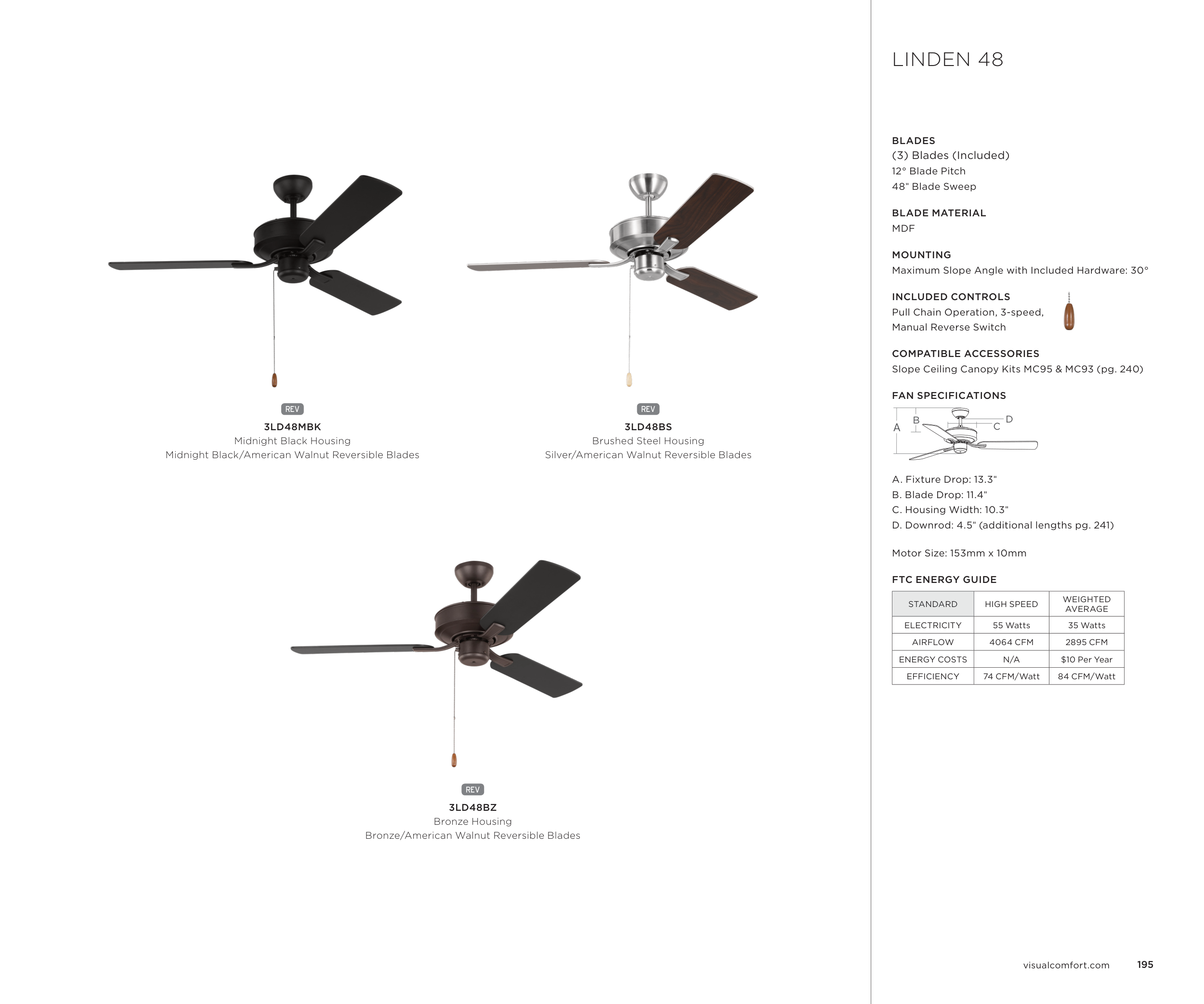

LINDEN 48
BLADES
(3) Blades (Included)
12° Blade Pitch
48" Blade Sweep
BLADE MATERIAL
MDF
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A
B
D
C
A. Fixture Drop: 13.3"
B. Blade Drop: 11.4"
C. Housing Width: 10.3"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 153mm x 10mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
55 Watts
35 Watts
AIRFLOW
4064 CFM
2895 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
74 CFM/Watt
84 CFM/Watt
REV
3LD48MBK
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
REV
3LD48BS
Brushed Steel Housing
Silver/American Walnut Reversible Blades
REV
3LD48BZ
Bronze Housing
Bronze/American Walnut Reversible Blades
195
visualcomfort.com
