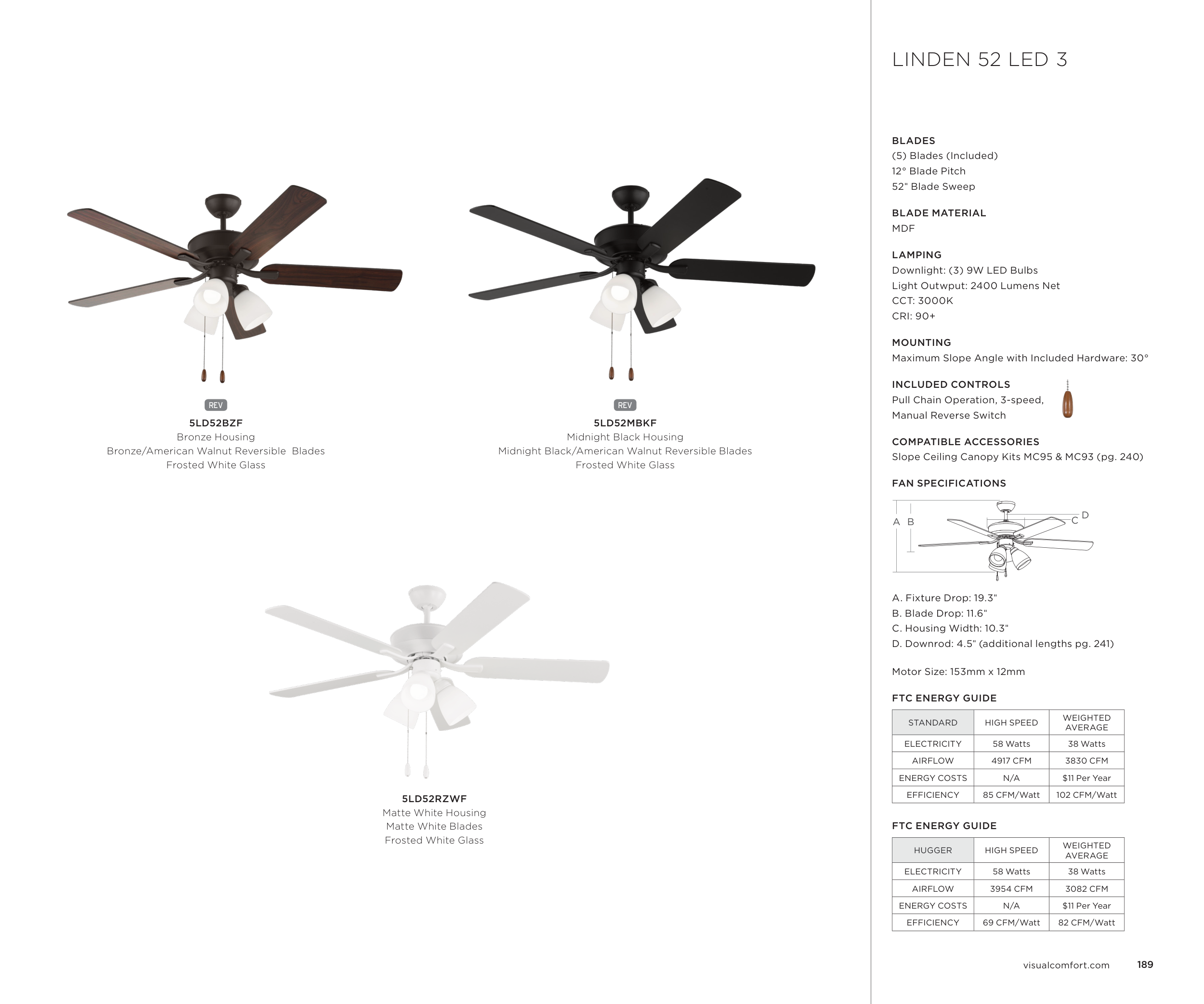

LINDEN 52 LED 3
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
MDF
LAMPING
Downlight: (3) 9W LED Bulbs
Light Outwput: 2400 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
D
A B
C
A. Fixture Drop: 19.3"
B. Blade Drop: 11.6"
C. Housing Width: 10.3"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 153mm x 12mm
FTC ENERGY GUIDE
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
58 Watts
38 Watts
AIRFLOW
4917 CFM
3830 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
85 CFM/Watt
102 CFM/Watt
HUGGER
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
58 Watts
38 Watts
AIRFLOW
3954 CFM
3082 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
69 CFM/Watt
82 CFM/Watt
REV
5LD52BZF
Bronze Housing
Bronze/American Walnut Reversible Blades
Frosted White Glass
REV
5LD52MBKF
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted White Glass
5LD52RZWF
Matte White Housing
Matte White Blades
Frosted White Glass
189
visualcomfort.com
