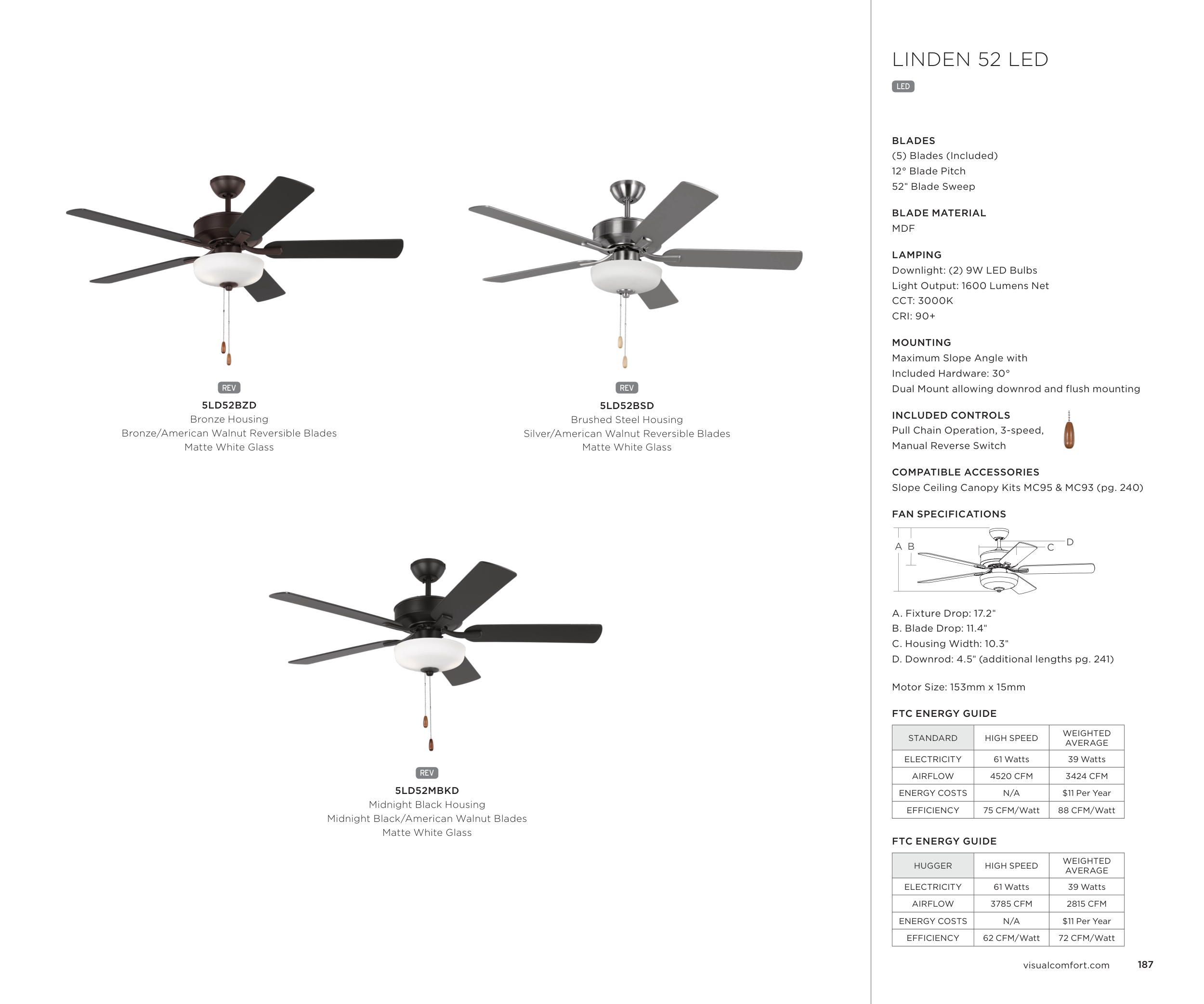

LINDEN 52 LED
LED
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
MDF
LAMPING
Downlight: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with
Included Hardware: 30°
Dual Mount allowing downrod and flush mounting
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
D
A B
C
A. Fixture Drop: 17.2"
B. Blade Drop: 11.4"
C. Housing Width: 10.3"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 153mm x 15mm
FTC ENERGY GUIDE
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
61 Watts
39 Watts
AIRFLOW
4520 CFM
3424 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
75 CFM/Watt
88 CFM/Watt
HUGGER
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
61 Watts
39 Watts
AIRFLOW
3785 CFM
2815 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
62 CFM/Watt
72 CFM/Watt
REV
5LD52MBKD
Midnight Black Housing
Midnight Black/American Walnut Blades
Matte White Glass
REV
5LD52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte White Glass
REV
5LD52BZD
Bronze Housing
Bronze/American Walnut Reversible Blades
Matte White Glass
187
visualcomfort.com
