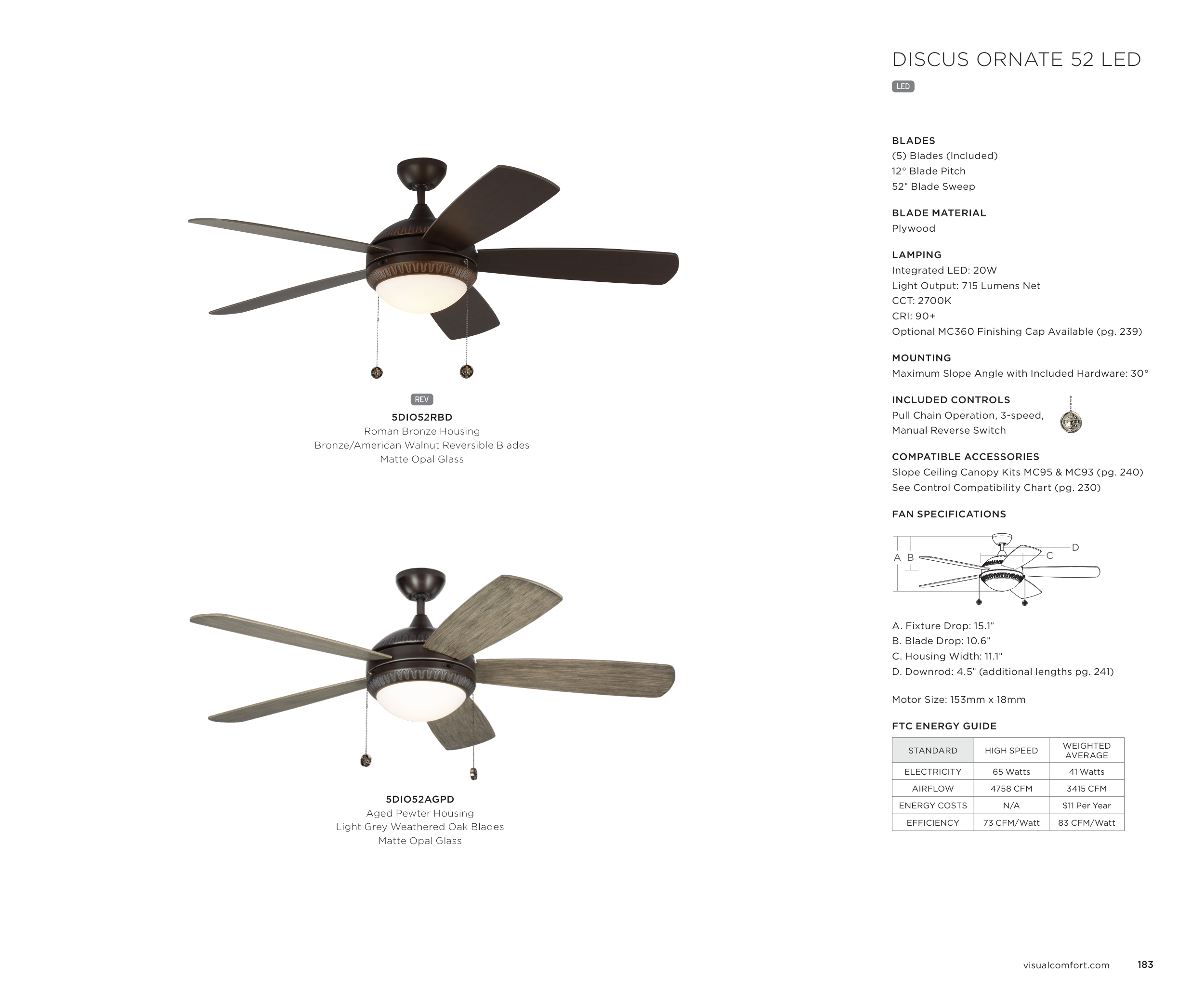

DISCUS ORNATE 52 LED
LED
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 715 Lumens Net
CCT: 2700K
CRI: 90+
Optional MC360 Finishing Cap Available (pg. 239)
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Pull Chain Operation, 3-speed,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
See Control Compatibility Chart (pg. 230)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 15.1"
B. Blade Drop: 10.6"
C. Housing Width: 11.1"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
65 Watts
41 Watts
AIRFLOW
4758 CFM
3415 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
73 CFM/Watt
83 CFM/Watt
REV
5DIO52RBD
Roman Bronze Housing
Bronze/American Walnut Reversible Blades
Matte Opal Glass
5DIO52AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Matte Opal Glass
