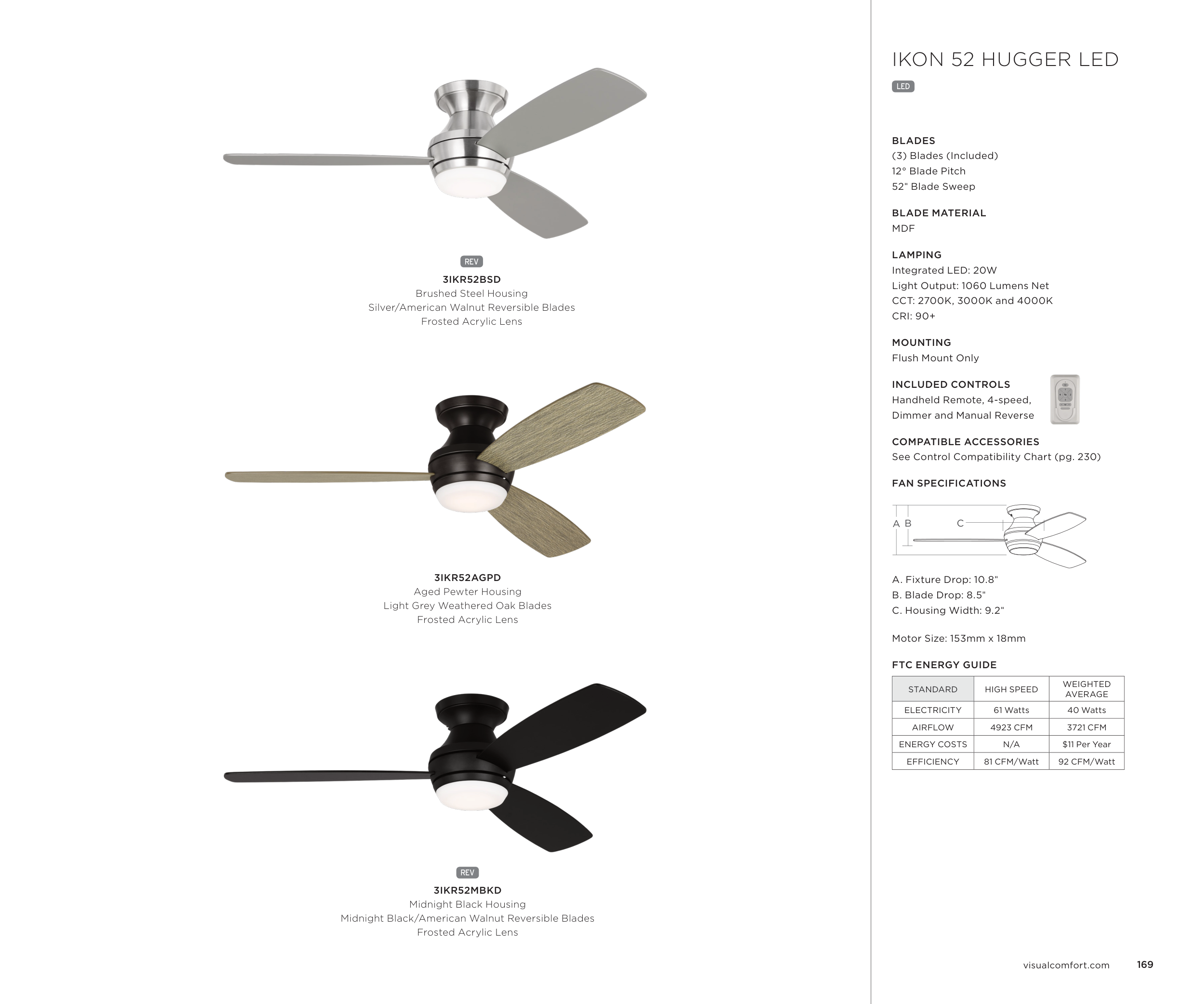

IKON 52 HUGGER LED
LED
BLADES
(3) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
MDF
LAMPING
Integrated LED: 20W
Light Output: 1060 Lumens Net
CCT: 2700K, 3000K and 4000K
CRI: 90+
MOUNTING
Flush Mount Only
INCLUDED CONTROLS
Handheld Remote, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
FAN SPECIFICATIONS
A B
C
A. Fixture Drop: 10.8"
B. Blade Drop: 8.5"
C. Housing Width: 9.2"
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
61 Watts
40 Watts
AIRFLOW
4923 CFM
3721 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
81 CFM/Watt
92 CFM/Watt
3IKR52AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Frosted Acrylic Lens
REV
3IKR52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
REV
3IKR52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
169
visualcomfort.com
