REV
3IKDR52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens

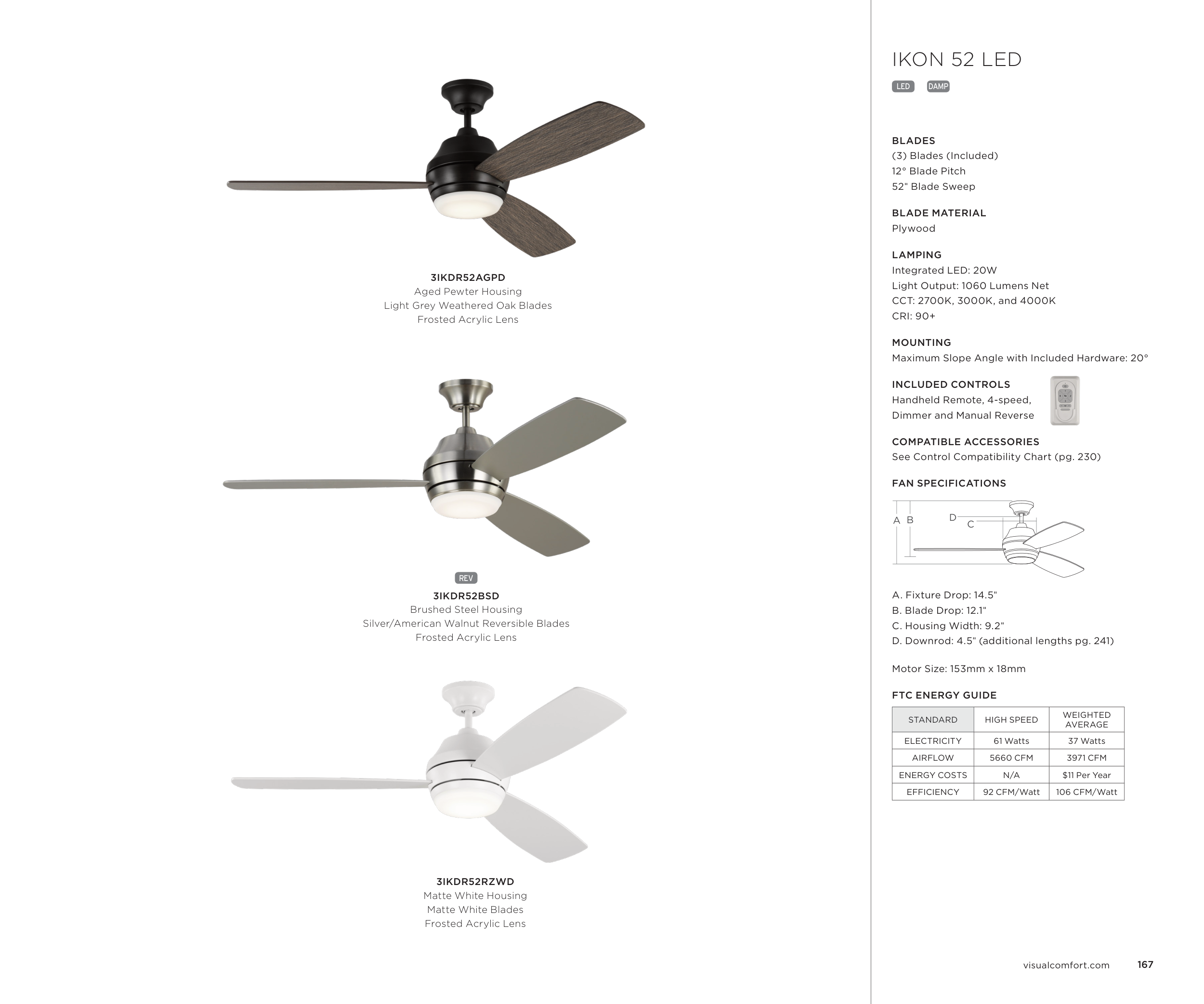

IKON 52 LED
LED DAMP
BLADES
(3) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 1060 Lumens Net
CCT: 2700K, 3000K, and 4000K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Handheld Remote, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 14.5"
B. Blade Drop: 12.1"
C. Housing Width: 9.2"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
61 Watts
37 Watts
AIRFLOW
5660 CFM
3971 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
92 CFM/Watt
106 CFM/Watt
3IKDR52RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
3IKDR52AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Frosted Acrylic Lens
