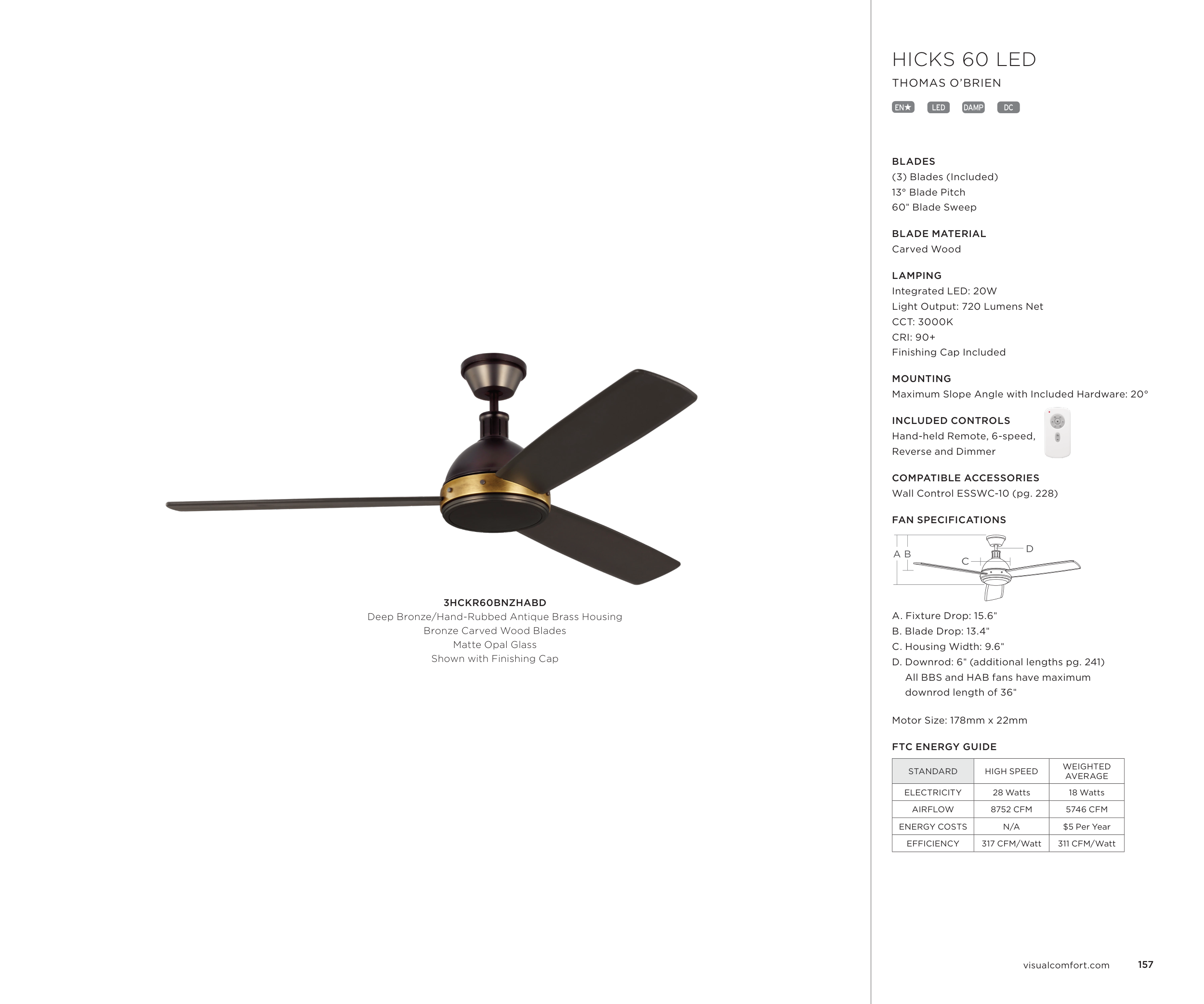

HICKS 60 LED
THOMAS O’BRIEN
EN★ LED DAMP
DC
BLADES
(3) Blades (Included)
13° Blade Pitch
60" Blade Sweep
BLADE MATERIAL
Carved Wood
LAMPING
Integrated LED: 20W
Light Output: 720 Lumens Net
CCT: 3000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-10 (pg. 228)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 15.6"
B. Blade Drop: 13.4"
C. Housing Width: 9.6"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 178mm x 22mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
28 Watts
18 Watts
AIRFLOW
8752 CFM
5746 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
317 CFM/Watt
311 CFM/Watt
3HCKR60BNZHABD
Deep Bronze/Hand-Rubbed Antique Brass Housing
Bronze Carved Wood Blades
Matte Opal Glass
Shown with Finishing Cap
157
