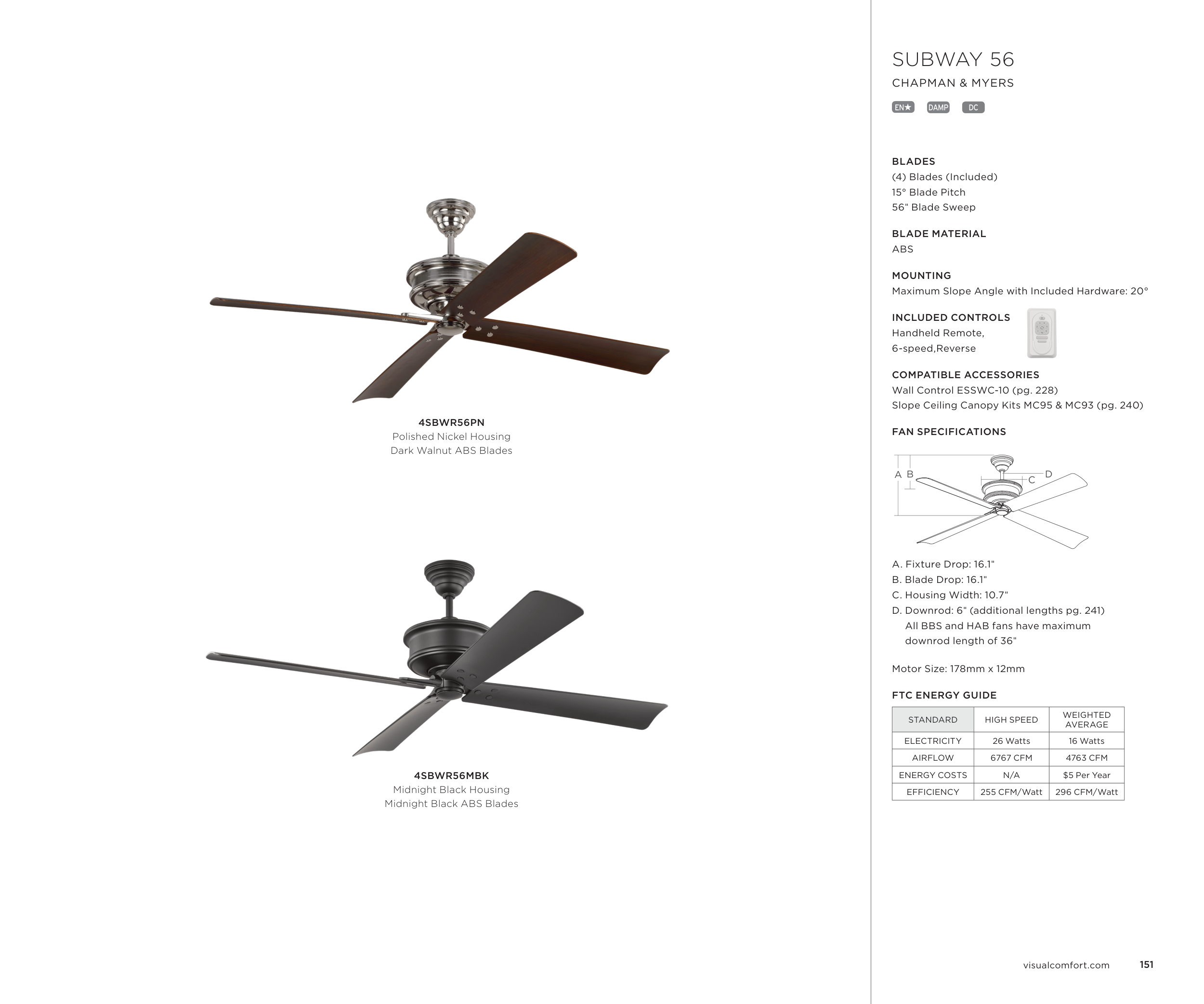

SUBWAY 56
CHAPMAN & MYERS
EN★ DAMP
DC
BLADES
(4) Blades (Included)
15° Blade Pitch
56" Blade Sweep
BLADE MATERIAL
ABS
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Handheld Remote,
6-speed,Reverse
COMPATIBLE ACCESSORIES
Wall Control ESSWC-10 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 16.1"
B. Blade Drop: 16.1"
C. Housing Width: 10.7"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 178mm x 12mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
26 Watts
16 Watts
AIRFLOW
6767 CFM
4763 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
255 CFM/Watt
296 CFM/Watt
4SBWR56MBK
Midnight Black Housing
Midnight Black ABS Blades
4SBWR56PN
Polished Nickel Housing
Dark Walnut ABS Blades
151
