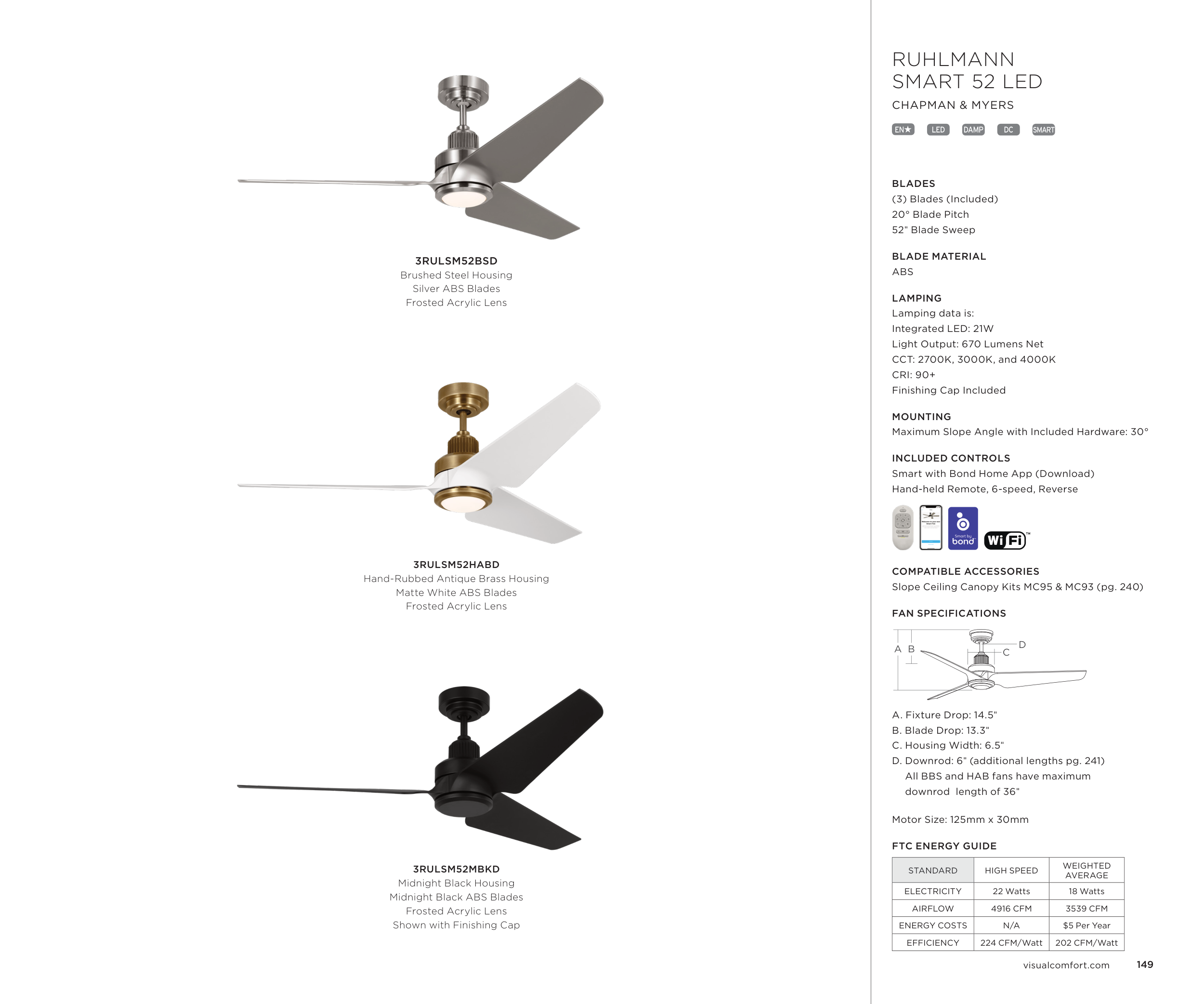

RUHLMANN
SMART 52 LED
CHAPMAN & MYERS
EN★ LED DAMP
DC SMART
BLADES
(3) Blades (Included)
20° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Lamping data is:
Integrated LED: 21W
Light Output: 670 Lumens Net
CCT: 2700K, 3000K, and 4000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Smart with Bond Home App (Download)
Hand-held Remote, 6-speed, Reverse
TM
TM
TM
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
D
A B
C
A. Fixture Drop: 14.5"
B. Blade Drop: 13.3"
C. Housing Width: 6.5"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 125mm x 30mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
22 Watts
18 Watts
AIRFLOW
4916 CFM
3539 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
224 CFM/Watt
202 CFM/Watt
3RULSM52HABD
Hand-Rubbed Antique Brass Housing
Matte White ABS Blades
Frosted Acrylic Lens
3RULSM52MBKD
Midnight Black Housing
Midnight Black ABS Blades
Frosted Acrylic Lens
Shown with Finishing Cap
3RULSM52BSD
Brushed Steel Housing
Silver ABS Blades
Frosted Acrylic Lens
149
visualcomfort.com
