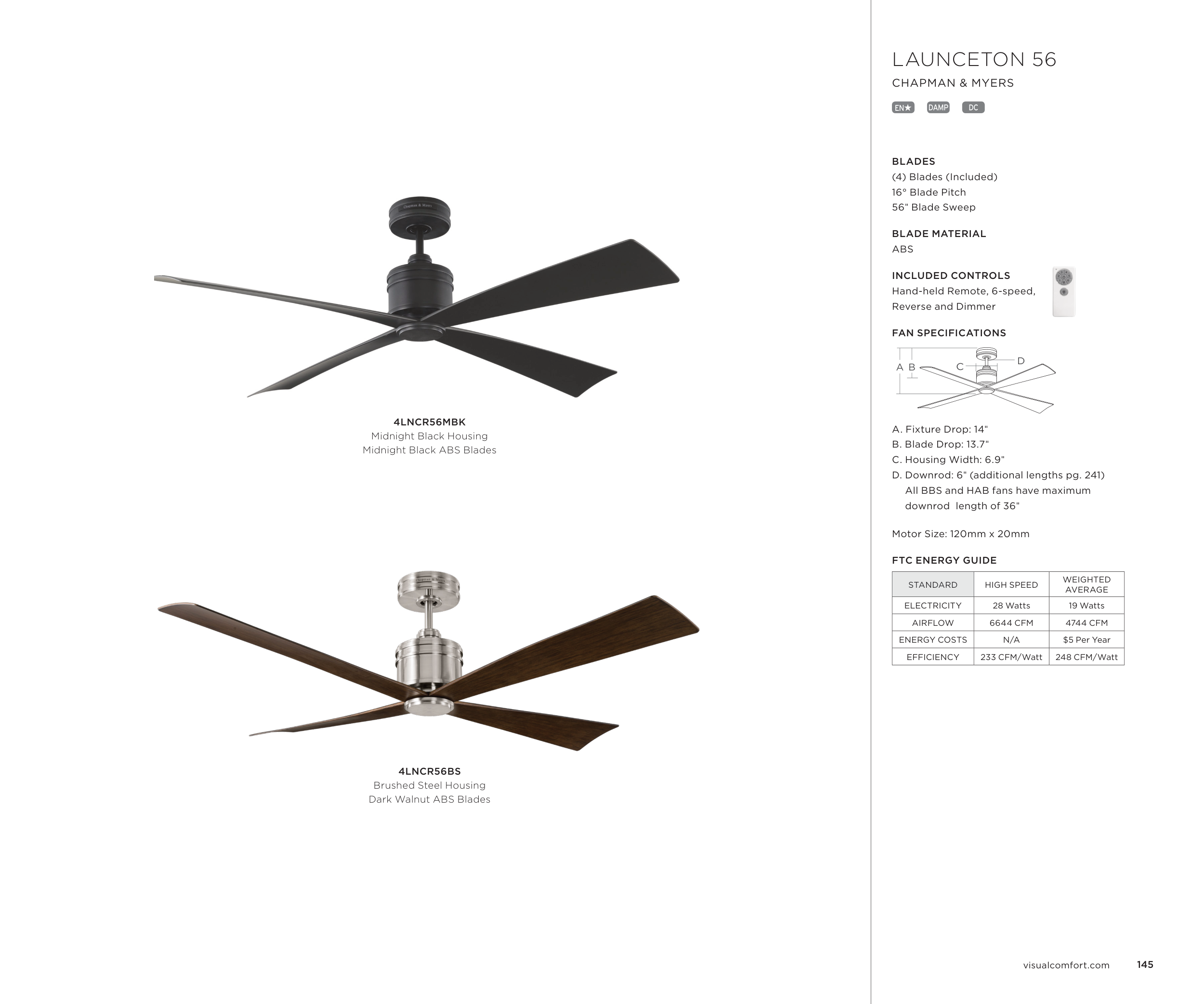

LAUNCETON 56
CHAPMAN & MYERS
EN★ DAMP
DC
BLADES
(4) Blades (Included)
16° Blade Pitch
56" Blade Sweep
BLADE MATERIAL
ABS
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 14"
B. Blade Drop: 13.7"
C. Housing Width: 6.9"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 120mm x 20mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
28 Watts
19 Watts
AIRFLOW
6644 CFM
4744 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
233 CFM/Watt
248 CFM/Watt
4LNCR56MBK
Midnight Black Housing
Midnight Black ABS Blades
4LNCR56BS
Brushed Steel Housing
Dark Walnut ABS Blades
145
visualcomfort.com
