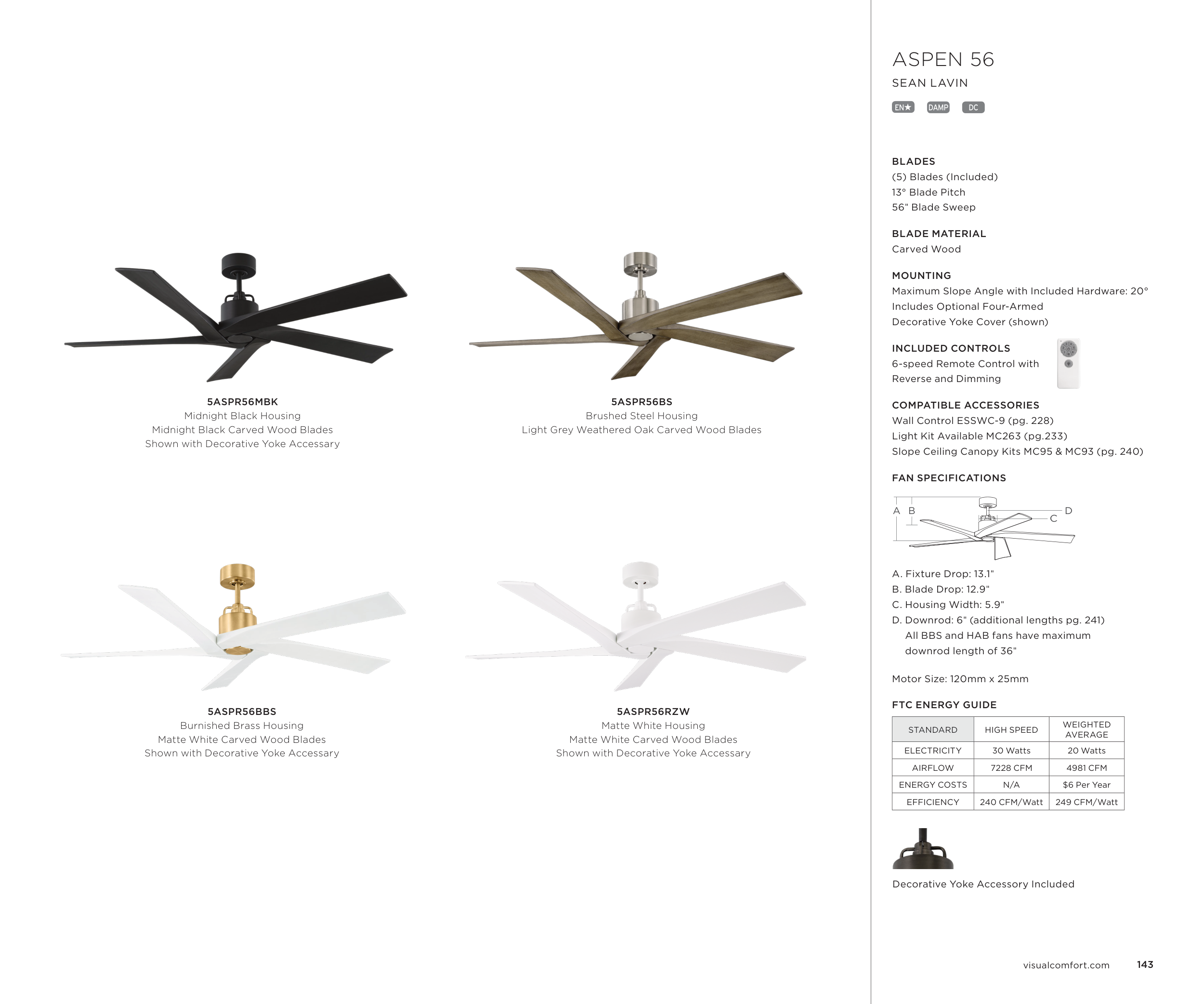

ASPEN 56
SEAN LAVIN
EN★ DAMP
DC
BLADES
(5) Blades (Included)
13° Blade Pitch
56" Blade Sweep
BLADE MATERIAL
Carved Wood
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
Includes Optional Four-Armed
Decorative Yoke Cover (shown)
INCLUDED CONTROLS
6-speed Remote Control with
Reverse and Dimming
COMPATIBLE ACCESSORIES
Wall Control ESSWC-9 (pg. 228)
Light Kit Available MC263 (pg.233)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A
B
C D
A. Fixture Drop: 13.1"
B. Blade Drop: 12.9"
C. Housing Width: 5.9"
D. Downrod: 6" (additional lengths pg. 241)
All BBS and HAB fans have maximum
downrod length of 36"
Motor Size: 120mm x 25mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
30 Watts
20 Watts
AIRFLOW
7228 CFM
4981 CFM
ENERGY COSTS
N/A
$6 Per Year
EFFICIENCY
240 CFM/Watt
249 CFM/Watt
5ASPR56BS
Brushed Steel Housing
Light Grey Weathered Oak Carved Wood Blades
5ASPR56MBK
Midnight Black Housing
Midnight Black Carved Wood Blades
Shown with Decorative Yoke Accessary
5ASPR56BBS
Burnished Brass Housing
Matte White Carved Wood Blades
Shown with Decorative Yoke Accessary
5ASPR56RZW
Matte White Housing
Matte White Carved Wood Blades
Shown with Decorative Yoke Accessary
Decorative Yoke Accessory Included
143
visualcomfort.com
