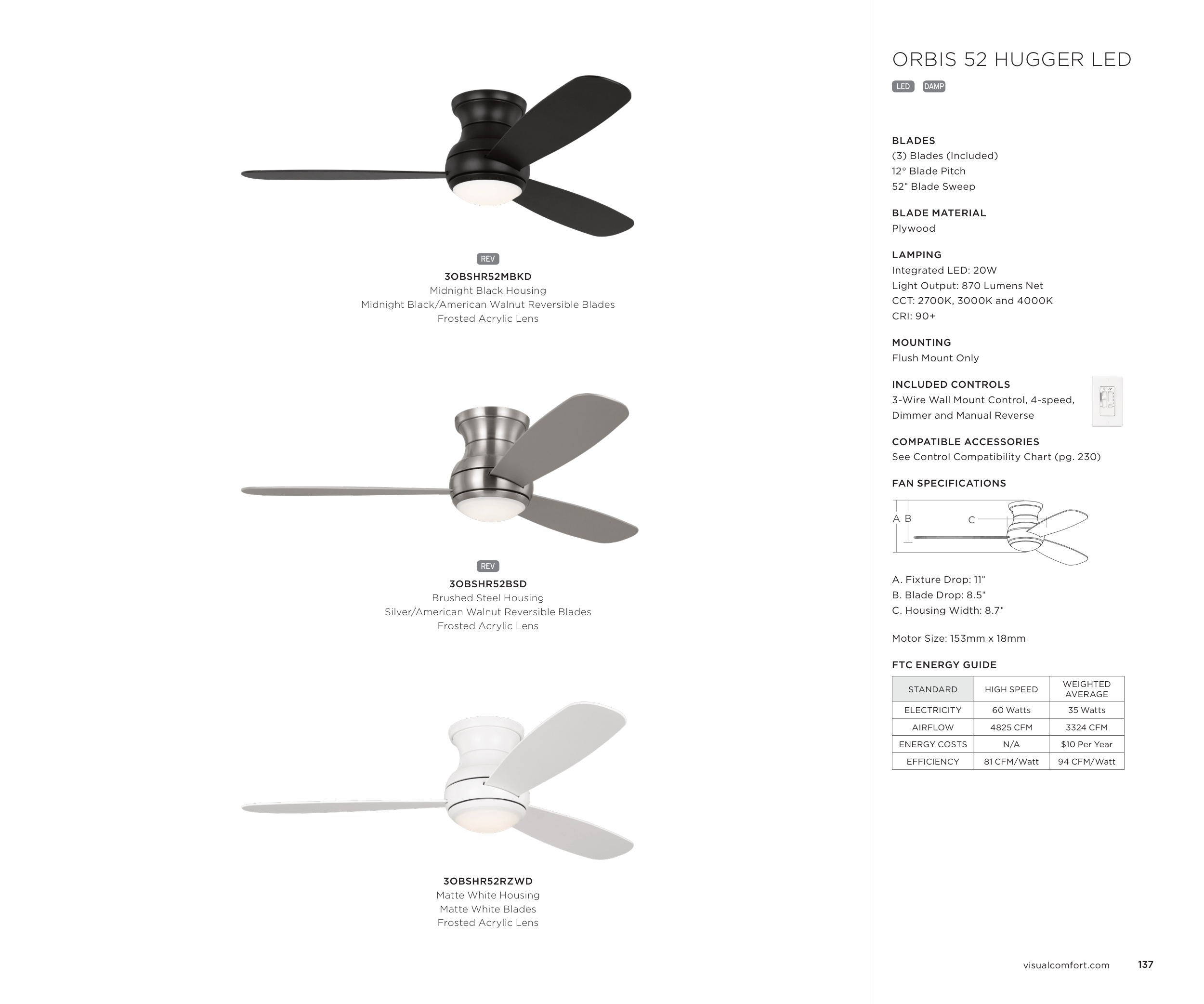

ORBIS 52 HUGGER LED
LED DAMP
BLADES
(3) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 870 Lumens Net
CCT: 2700K, 3000K and 4000K
CRI: 90+
MOUNTING
Flush Mount Only
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
FAN SPECIFICATIONS
A B
C
A. Fixture Drop: 11"
B. Blade Drop: 8.5"
C. Housing Width: 8.7"
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
60 Watts
35 Watts
AIRFLOW
4825 CFM
3324 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
81 CFM/Watt
94 CFM/Watt
REV
3OBSHR52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
REV
3OBSHR52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
3OBSHR52RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
137
