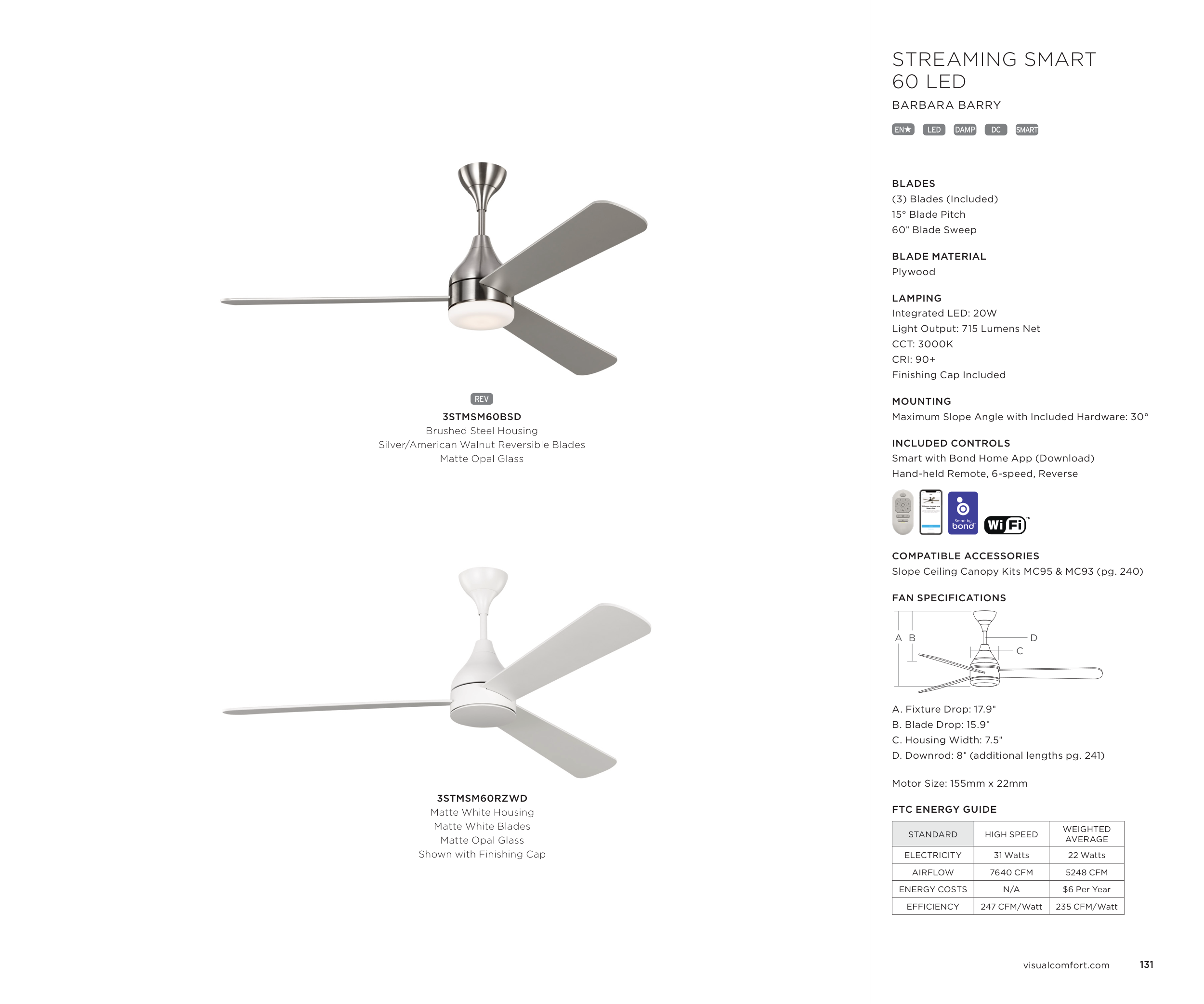

STREAMING SMART
60 LED
BARBARA BARRY
EN★ LED DAMP
DC SMART
BLADES
(3) Blades (Included)
15° Blade Pitch
60" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 715 Lumens Net
CCT: 3000K
CRI: 90+
Finishing Cap Included
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Smart with Bond Home App (Download)
Hand-held Remote, 6-speed, Reverse
TM
TM
TM
COMPATIBLE ACCESSORIES
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A
D
C
B
A. Fixture Drop: 17.9"
B. Blade Drop: 15.9"
C. Housing Width: 7.5"
D. Downrod: 8" (additional lengths pg. 241)
Motor Size: 155mm x 22mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
31 Watts
22 Watts
AIRFLOW
7640 CFM
5248 CFM
ENERGY COSTS
N/A
$6 Per Year
EFFICIENCY
247 CFM/Watt
235 CFM/Watt
REV
3STMSM60BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte Opal Glass
3STMSM60RZWD
Matte White Housing
Matte White Blades
Matte Opal Glass
Shown with Finishing Cap
131
visualcomfort.com
