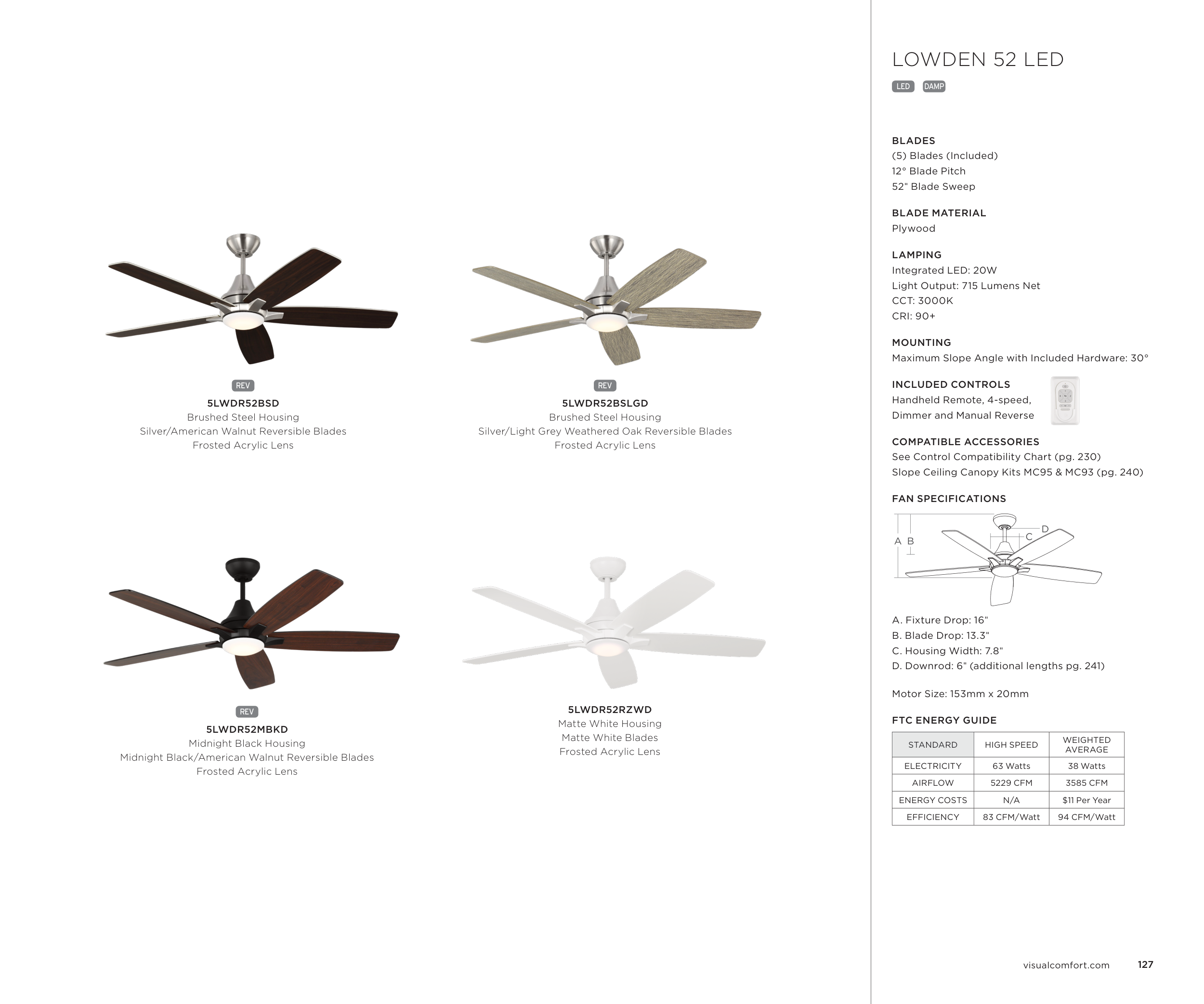

LOWDEN 52 LED
LED DAMP
BLADES
(5) Blades (Included)
12° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 715 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
Handheld Remote, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
D
C
A B
A. Fixture Drop: 16"
B. Blade Drop: 13.3"
C. Housing Width: 7.8"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 153mm x 20mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
63 Watts
38 Watts
AIRFLOW
5229 CFM
3585 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
83 CFM/Watt
94 CFM/Watt
5LWDR52RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
REV
5LWDR52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
REV
5LWDR52BSLGD
Brushed Steel Housing
Silver/Light Grey Weathered Oak Reversible Blades
Frosted Acrylic Lens
REV
5LWDR52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Frosted Acrylic Lens
127
