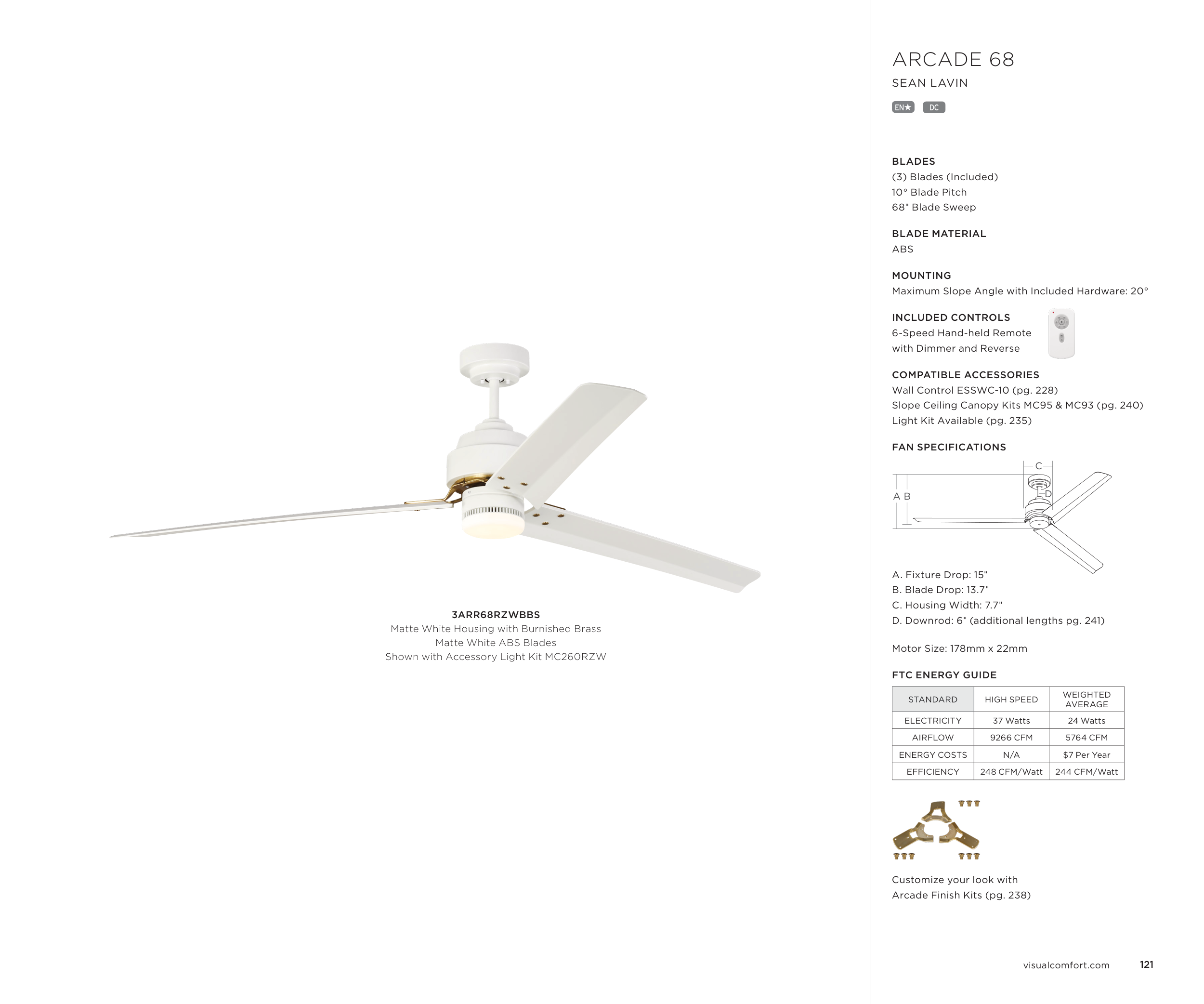

ARCADE 68
SEAN LAVIN
EN★
DC
BLADES
(3) Blades (Included)
10° Blade Pitch
68" Blade Sweep
BLADE MATERIAL
ABS
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
6-Speed Hand-held Remote
with Dimmer and Reverse
COMPATIBLE ACCESSORIES
Wall Control ESSWC-10 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
Light Kit Available (pg. 235)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 15"
B. Blade Drop: 13.7"
C. Housing Width: 7.7"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 178mm x 22mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
37 Watts
24 Watts
AIRFLOW
9266 CFM
5764 CFM
ENERGY COSTS
N/A
$7 Per Year
EFFICIENCY
248 CFM/Watt
244 CFM/Watt
Customize your look with
Arcade Finish Kits (pg. 238)
3ARR68RZWBBS
Matte White Housing with Burnished Brass
Matte White ABS Blades
Shown with Accessory Light Kit MC260RZW
121
visualcomfort.com
