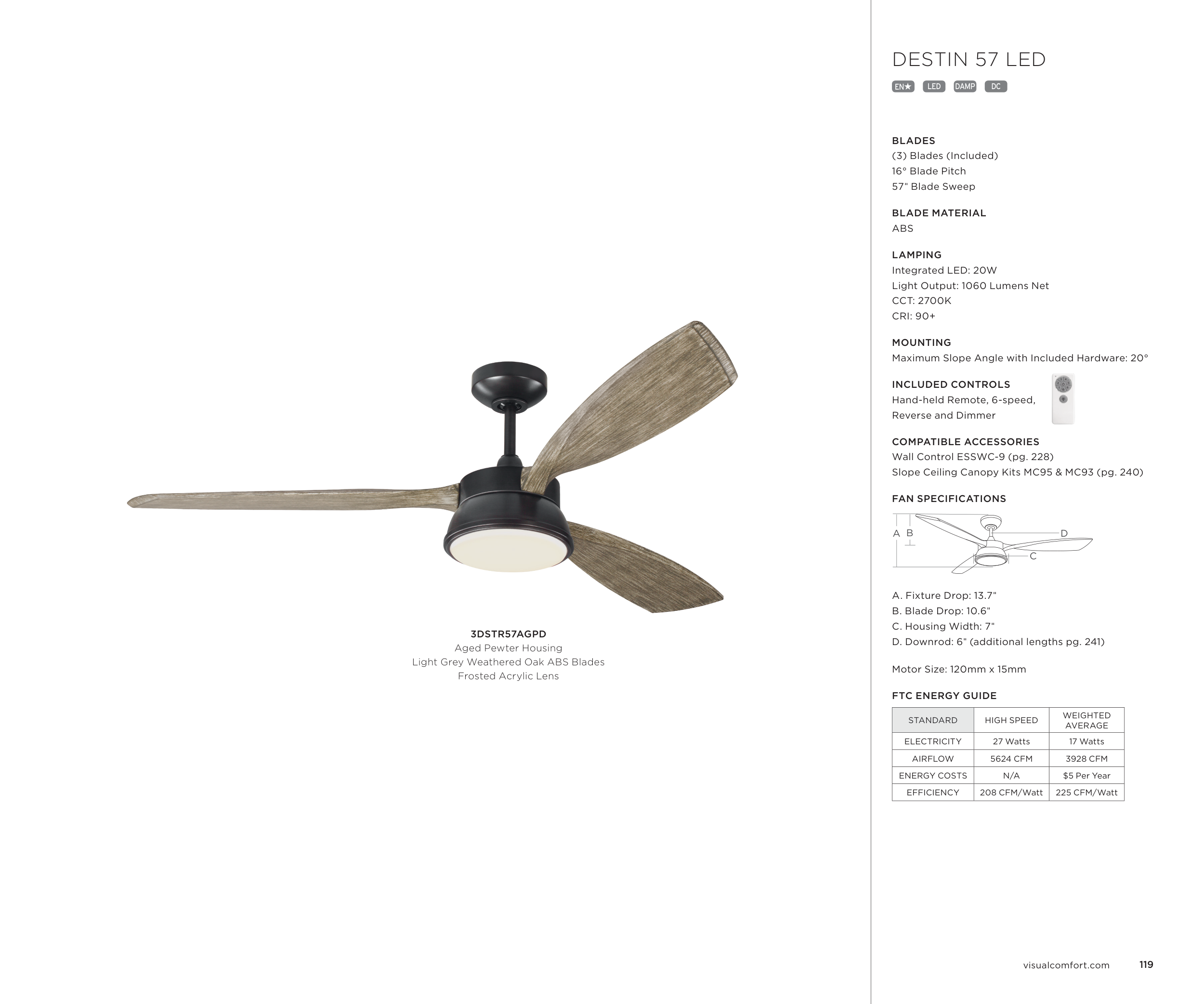

DESTIN 57 LED
EN★ LED DAMP
DC
BLADES
(3) Blades (Included)
16° Blade Pitch
57" Blade Sweep
BLADE MATERIAL
ABS
LAMPING
Integrated LED: 20W
Light Output: 1060 Lumens Net
CCT: 2700K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
Hand-held Remote, 6-speed,
Reverse and Dimmer
COMPATIBLE ACCESSORIES
Wall Control ESSWC-9 (pg. 228)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
C
D
A. Fixture Drop: 13.7"
B. Blade Drop: 10.6"
C. Housing Width: 7"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 120mm x 15mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
27 Watts
17 Watts
AIRFLOW
5624 CFM
3928 CFM
ENERGY COSTS
N/A
$5 Per Year
EFFICIENCY
208 CFM/Watt
225 CFM/Watt
3DSTR57AGPD
Aged Pewter Housing
Light Grey Weathered Oak ABS Blades
Frosted Acrylic Lens
119
visualcomfort.com
