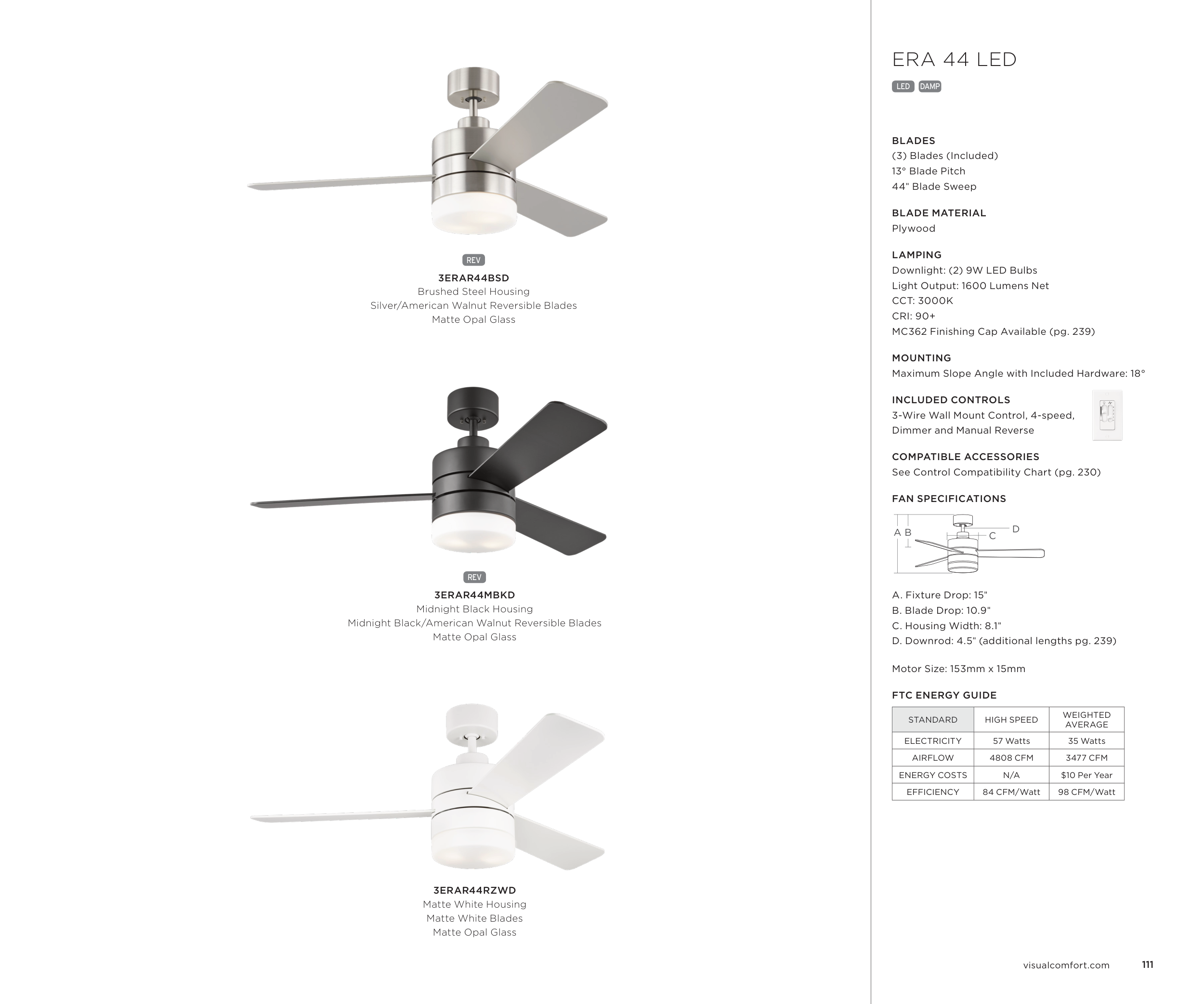

ERA 44 LED
LED DAMP
BLADES
(3) Blades (Included)
13° Blade Pitch
44" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Downlight: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MC362 Finishing Cap Available (pg. 239)
MOUNTING
Maximum Slope Angle with Included Hardware: 18°
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 15"
B. Blade Drop: 10.9"
C. Housing Width: 8.1"
D. Downrod: 4.5" (additional lengths pg. 239)
Motor Size: 153mm x 15mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
57 Watts
35 Watts
AIRFLOW
4808 CFM
3477 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
84 CFM/Watt
98 CFM/Watt
REV
3ERAR44BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte Opal Glass
REV
3ERAR44MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Matte Opal Glass
3ERAR44RZWD
Matte White Housing
Matte White Blades
Matte Opal Glass
111
visualcomfort.com
