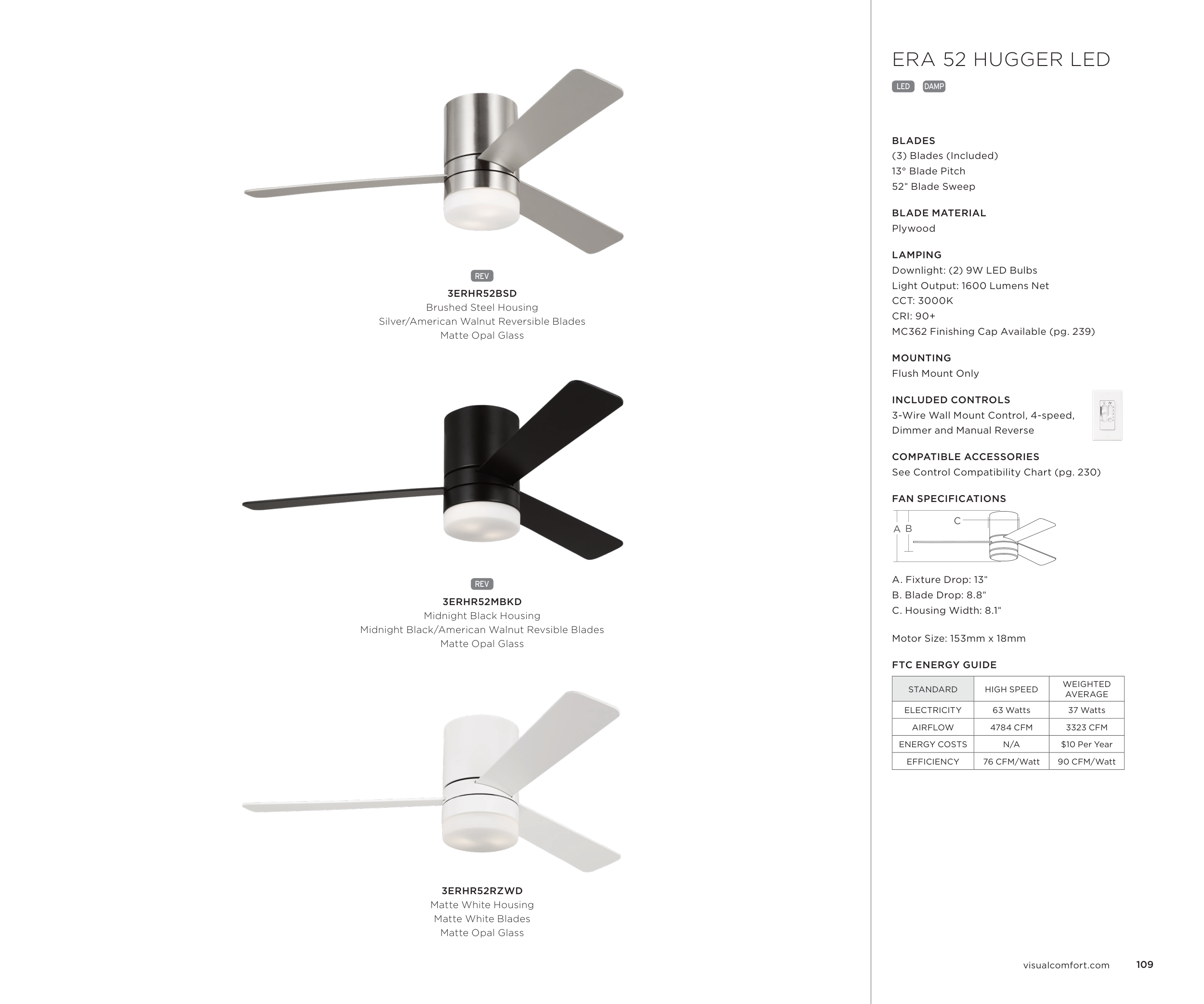

ERA 52 HUGGER LED
LED DAMP
BLADES
(3) Blades (Included)
13° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Downlight: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MC362 Finishing Cap Available (pg. 239)
MOUNTING
Flush Mount Only
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
FAN SPECIFICATIONS
A B
C
A. Fixture Drop: 13"
B. Blade Drop: 8.8"
C. Housing Width: 8.1"
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
63 Watts
37 Watts
AIRFLOW
4784 CFM
3323 CFM
ENERGY COSTS
N/A
$10 Per Year
EFFICIENCY
76 CFM/Watt
90 CFM/Watt
REV
3ERHR52BSD
Brushed Steel Housing
Silver/American Walnut Reversible Blades
Matte Opal Glass
REV
3ERHR52MBKD
Midnight Black Housing
Midnight Black/American Walnut Revsible Blades
Matte Opal Glass
3ERHR52RZWD
Matte White Housing
Matte White Blades
Matte Opal Glass
109
visualcomfort.com
