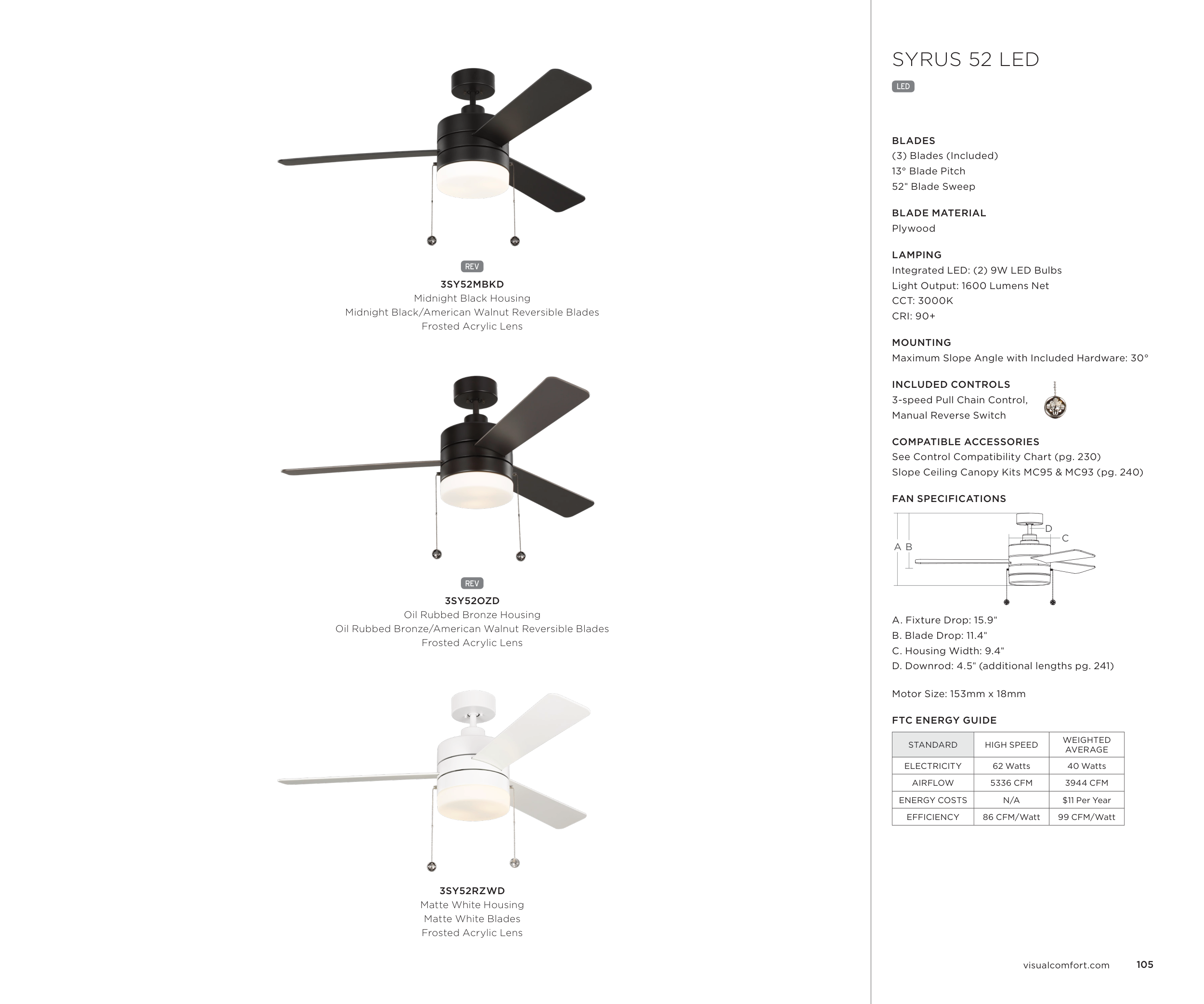

SYRUS 52 LED
LED
BLADES
(3) Blades (Included)
13° Blade Pitch
52" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: (2) 9W LED Bulbs
Light Output: 1600 Lumens Net
CCT: 3000K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 30°
INCLUDED CONTROLS
3-speed Pull Chain Control,
Manual Reverse Switch
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
D
C
B
A
A. Fixture Drop: 15.9"
B. Blade Drop: 11.4"
C. Housing Width: 9.4"
D. Downrod: 4.5" (additional lengths pg. 241)
Motor Size: 153mm x 18mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
62 Watts
40 Watts
AIRFLOW
5336 CFM
3944 CFM
ENERGY COSTS
N/A
$11 Per Year
EFFICIENCY
86 CFM/Watt
99 CFM/Watt
REV
3SY52MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
REV
3SY52OZD
Oil Rubbed Bronze Housing
Oil Rubbed Bronze/American Walnut Reversible Blades
Frosted Acrylic Lens
3SY52RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
105
visualcomfort.com
