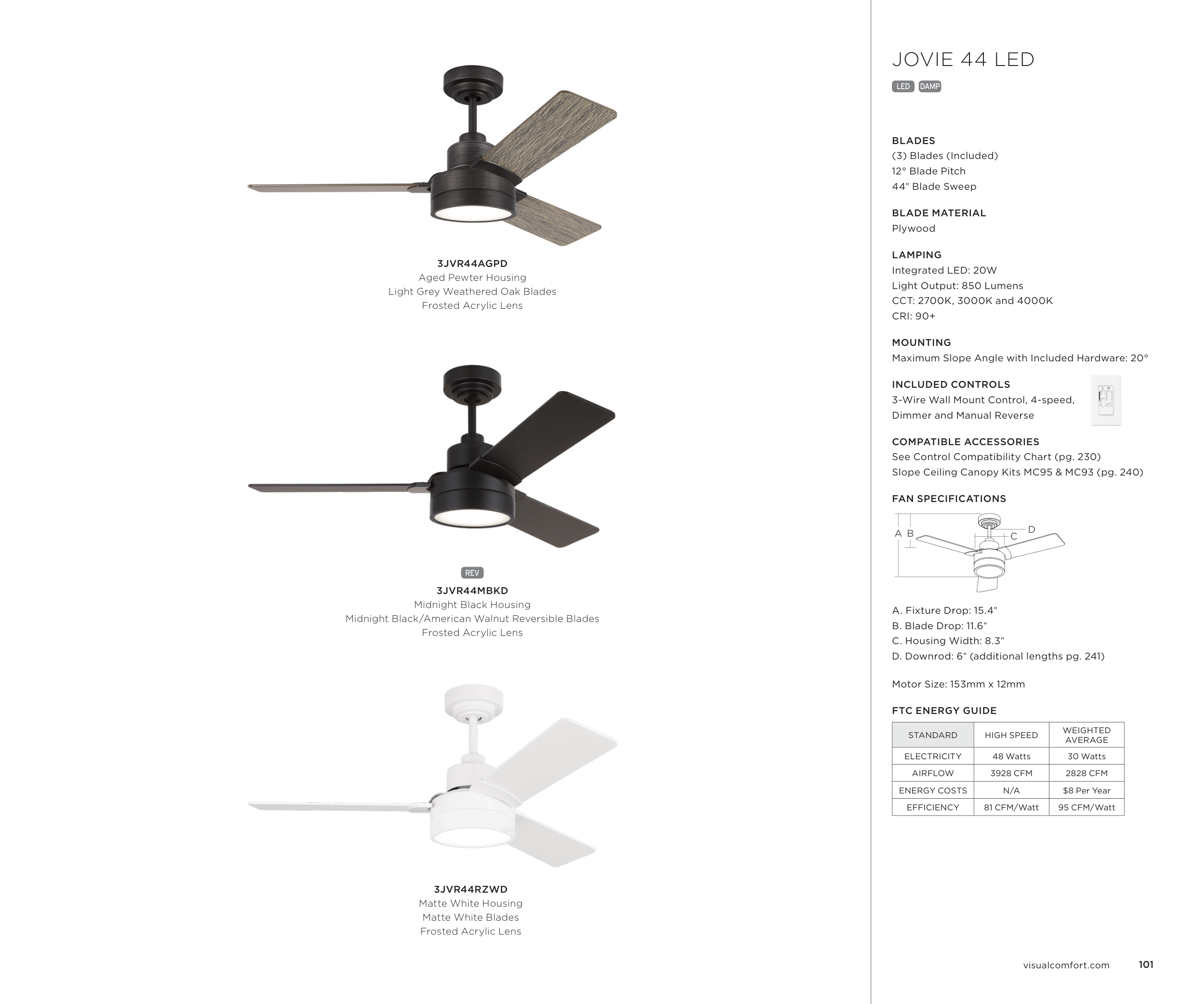

JOVIE 44 LED
LED DAMP
BLADES
(3) Blades (Included)
12° Blade Pitch
44" Blade Sweep
BLADE MATERIAL
Plywood
LAMPING
Integrated LED: 20W
Light Output: 850 Lumens
CCT: 2700K, 3000K and 4000K
CRI: 90+
MOUNTING
Maximum Slope Angle with Included Hardware: 20°
INCLUDED CONTROLS
3-Wire Wall Mount Control, 4-speed,
Dimmer and Manual Reverse
COMPATIBLE ACCESSORIES
See Control Compatibility Chart (pg. 230)
Slope Ceiling Canopy Kits MC95 & MC93 (pg. 240)
FAN SPECIFICATIONS
A B
D
C
A. Fixture Drop: 15.4"
B. Blade Drop: 11.6"
C. Housing Width: 8.3"
D. Downrod: 6" (additional lengths pg. 241)
Motor Size: 153mm x 12mm
FTC ENERGY GUIDE
STANDARD
HIGH SPEED
WEIGHTED
AVERAGE
ELECTRICITY
48 Watts
30 Watts
AIRFLOW
3928 CFM
2828 CFM
ENERGY COSTS
N/A
$8 Per Year
EFFICIENCY
81 CFM/Watt
95 CFM/Watt
3JVR44AGPD
Aged Pewter Housing
Light Grey Weathered Oak Blades
Frosted Acrylic Lens
REV
3JVR44MBKD
Midnight Black Housing
Midnight Black/American Walnut Reversible Blades
Frosted Acrylic Lens
3JVR44RZWD
Matte White Housing
Matte White Blades
Frosted Acrylic Lens
101
