60W ELECTRONIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Electronic 450W
Compatible Dimming Coil: N/A
120 Volt Input Option: 700AT060EL
277 Volt Input Option: N/A
300W ELECTRONIC DC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: N/A
120 Volt Input Option: 700AT302EL
277 Volt Input Option: N/A
4" ROUND DIRECT SINGLE-FEED
60W ELECTRONIC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
700WMOP4R60EZ-LED (ANTIQUE BRONZE)
700WMOP4R60ES-LED (SATIN NICKEL)
75W MAGNETIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: N/A
120 Volt Input Option 700AT075T
277 Volt Input Option: 700AT075T277
300W MAGNETIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: 700DIM300 (P. 30)
120 Volt Input Option: 700AT300T
277 Volt Input Option: 700AT300T277
150W MAGNETIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: 700DIM150 (P. 30)
120 Volt Input Option: 700AT150T
277 Volt Input Option: 700AT150T277

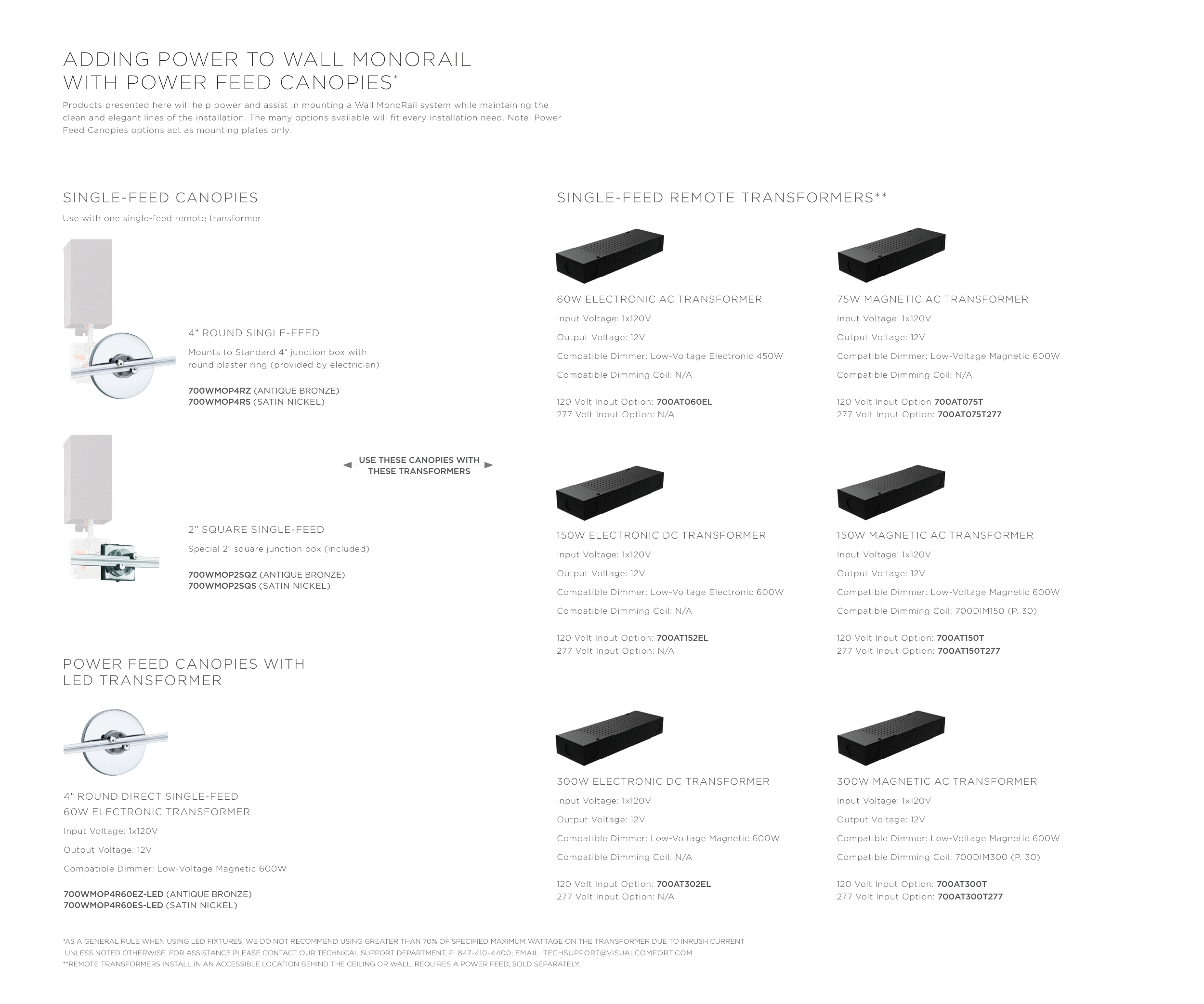

ADDING POWER TO WALL MONORAIL
WITH POWER FEED CANOPIES*
Products presented here will help power and assist in mounting a Wall MonoRail system while maintaining the
clean and elegant lines of the installation. The many options available will fit every installation need. Note: Power
Feed Canopies options act as mounting plates only.
SINGLE-FEED REMOTE TRANSFORMERS**
SINGLE-FEED CANOPIES
Use with one single-feed remote transformer
POWER FEED CANOPIES WITH
LED TRANSFORMER
* AS A GENERAL RULE WHEN USING LED FIXTURES, WE DO NOT RECOMMEND USING GREATER THAN 70% OF SPECIFIED MAXIMUM WATTAGE ON THE TRANSFORMER DUE TO INRUSH CURRENT
UNLESS NOTED OTHERWISE. FOR ASSISTANCE PLEASE CONTACT OUR TECHNICAL SUPPORT DEPARTMENT, P: 847-410-4400; EMAIL: TECHSUPPORT@VISUALCOMFORT.COM
**REMOTE TRANSFORMERS INSTALL IN AN ACCESSIBLE LOCATION BEHIND THE CEILING OR WALL. REQUIRES A POWER FEED, SOLD SEPARATELY.
4" ROUND SINGLE-FEED
Mounts to Standard 4" junction box with
round plaster ring (provided by electrician)
700WMOP4RZ (ANTIQUE BRONZE)
700WMOP4RS (SATIN NICKEL)
2" SQUARE SINGLE-FEED
Special 2" square junction box (included)
700WMOP2SQZ (ANTIQUE BRONZE)
700WMOP2SQS (SATIN NICKEL)
USE THESE CANOPIES WITH
THESE TRANSFORMERS
150W ELECTRONIC DC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Electronic 600W
Compatible Dimming Coil: N/A
120 Volt Input Option: 700AT152EL
277 Volt Input Option: N/A
