700MOCINC
700MOCCNZ (ANTIQUE BRONZE)
700MOCCNS (SATIN NICKEL)
700MOPENDZ (ANTIQUE BRONZE)
700MOPENDS (SATIN NICKEL)
SINGLE-FEED
700MOPCENZ (ANTIQUE BRONZE)
700MOPCENS (SATIN NICKEL)
DUAL-FEED
700MOPCEN4Z (ANTIQUE BRONZE)
700MOPCEN4S (SATIN NICKEL)
700A1-WHT (WHITE)
700A1-BLK (BLACK)
700DIM150 (150W)
700DIM300 (300W)
CONDUCTIVE CONNECTORS
Join sections of rail together end to
end. Order separately if cutting and
rejoining rails. Sold in pairs.
ISOLATING CONNECTORS
Join sections of rail and isolate
power feeds from each other.
Order additional if required by
layout. Sold in pairs.
700MOCFXHZ (ANTIQUE BRONZE)
700MOCFXHS (SATIN NICKEL)
700MOCFXVZ (ANTIQUE BRONZE)
700MOCFXVS (SATIN NICKEL)
700MOCCAPZ (ANTIQUE BRONZE)
700MOCCAPS (SATIN NICKEL)
END CAPS
Decorative end caps fit into ends
of MonoRail run for a finished
look. Sold in pairs; order one
pair for each end.
FLEXIBLE CONNECTORS
Join sections of rail together end to end at desired sharp
horizontal angle or desired vertical angle. Sold in pairs.
HORIZONTAL CONNECTORS
VERTICAL CONNECTORS

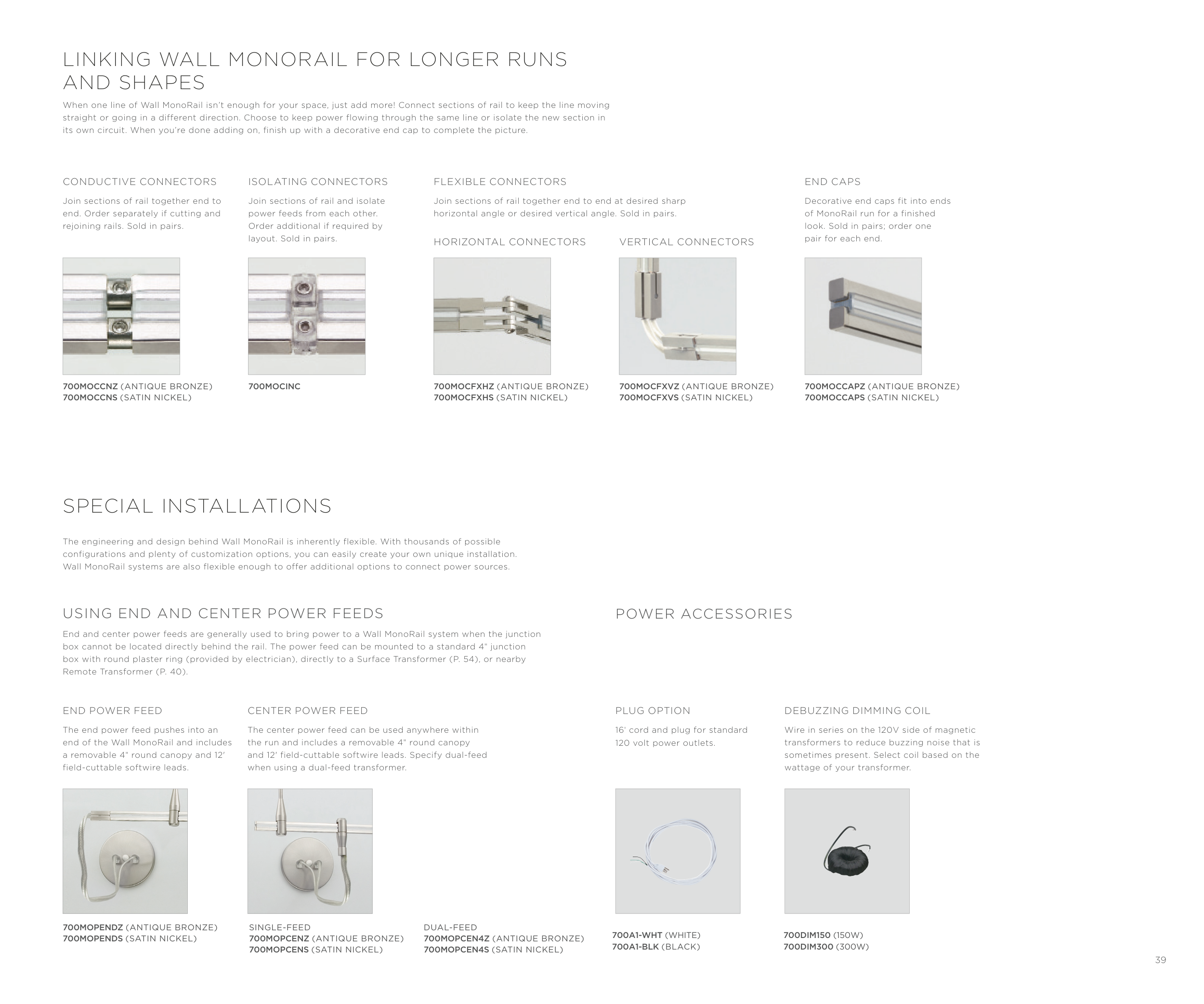

LINKING WALL MONORAIL FOR LONGER RUNS
AND SHAPES
When one line of Wall MonoRail isn’t enough for your space, just add more! Connect sections of rail to keep the line moving
straight or going in a different direction. Choose to keep power flowing through the same line or isolate the new section in
its own circuit. When you’re done adding on, finish up with a decorative end cap to complete the picture.
39
USING END AND CENTER POWER FEEDS
End and center power feeds are generally used to bring power to a Wall MonoRail system when the junction
box cannot be located directly behind the rail. The power feed can be mounted to a standard 4" junction
box with round plaster ring (provided by electrician), directly to a Surface Transformer (P. 54), or nearby
Remote Transformer (P. 40).
END POWER FEED
The end power feed pushes into an
end of the Wall MonoRail and includes
a removable 4" round canopy and 12'
field-cuttable softwire leads.
CENTER POWER FEED
The center power feed can be used anywhere within
the run and includes a removable 4" round canopy
and 12' field-cuttable softwire leads. Specify dual-feed
when using a dual-feed transformer.
The engineering and design behind Wall MonoRail is inherently flexible. With thousands of possible
configurations and plenty of customization options, you can easily create your own unique installation.
Wall MonoRail systems are also flexible enough to offer additional options to connect power sources.
SPECIAL INSTALLATIONS
POWER ACCESSORIES
DEBUZZING DIMMING COIL
Wire in series on the 120V side of magnetic
transformers to reduce buzzing noise that is
sometimes present. Select coil based on the
wattage of your transformer.
PLUG OPTION
16' cord and plug for standard
120 volt power outlets.
