USING A DIRECT-END POWER FEED
These direct-end power feeds bring power from a remote transformer to the rail at an end of the run
and mounts to a wall perpendicular to the run. Use with a single-feed remote transformer (P. 53).
USING END AND CENTER POWER FEEDS
End and center power feeds are generally used to bring power to a MonoRail system when the transformer or
junction box cannot be located directly above the run. The power feed can be mounted to a standard 4" junction
box with round plaster ring (provided by electrician) or directly to a remote transformer (P. 53).
USING A “T” OR “X” CONNECTOR
Use the special “T” or “X” connectors to make a clean splice into a straight horizontal rail run.
These connectors are conductive, so you may power the system from any of the runs.
4" ROUND DIRECT-END POWER FEED
Mounts to a standard 4" junction box with round
plaster ring (provided by electrician).
700MOP4CDZ (ANTIQUE BRONZE)
700MOP4CDS (SATIN NICKEL)
2" SQUARE DIRECT-END POWER FEED
Mounts to special 2" square junction box
(included).
700MOP2CDZ (ANTIQUE BRONZE)
700MOP2CDS (SATIN NICKEL)
END POWER FEED
The end power feed pushes into an end of the
MonoRail and includes a removable 4" round canopy
and 12' field-cuttable soft wire leads.
700MOPENDZ (ANTIQUE BRONZE)
700MOPENDS (SATIN NICKEL)
CENTER POWER FEED
The center power feed can be used anywhere within
the run and includes a removable 4" round canopy
and 12' field-cuttable softwire leads. Specify dual-feed
when using a dual-feed transformer.
SINGLE-FEED
700MOPCENR (AGED BRASS)
700MOPCENZ (ANTIQUE BRONZE)
700MOPCENS (SATIN NICKEL)
DUAL-FEED
700MOPCEN4Z (ANTIQUE BRONZE)
700MOPCEN4S (SATIN NICKEL)
“T” CONNECTOR
The “T” connector joins three pieces of MonoRail to
form a “T”. At least one standoff must be located near
the connector.
700MOCTTZ (ANTIQUE BRONZE)
700MOCTTS (SATIN NICKEL)
“X” CONNECTOR
The “X” connector joins four pieces of MonoRail to
form an “X”. At least one standoff must be located
near the connector.
700MOCTXS (SATIN NICKEL)

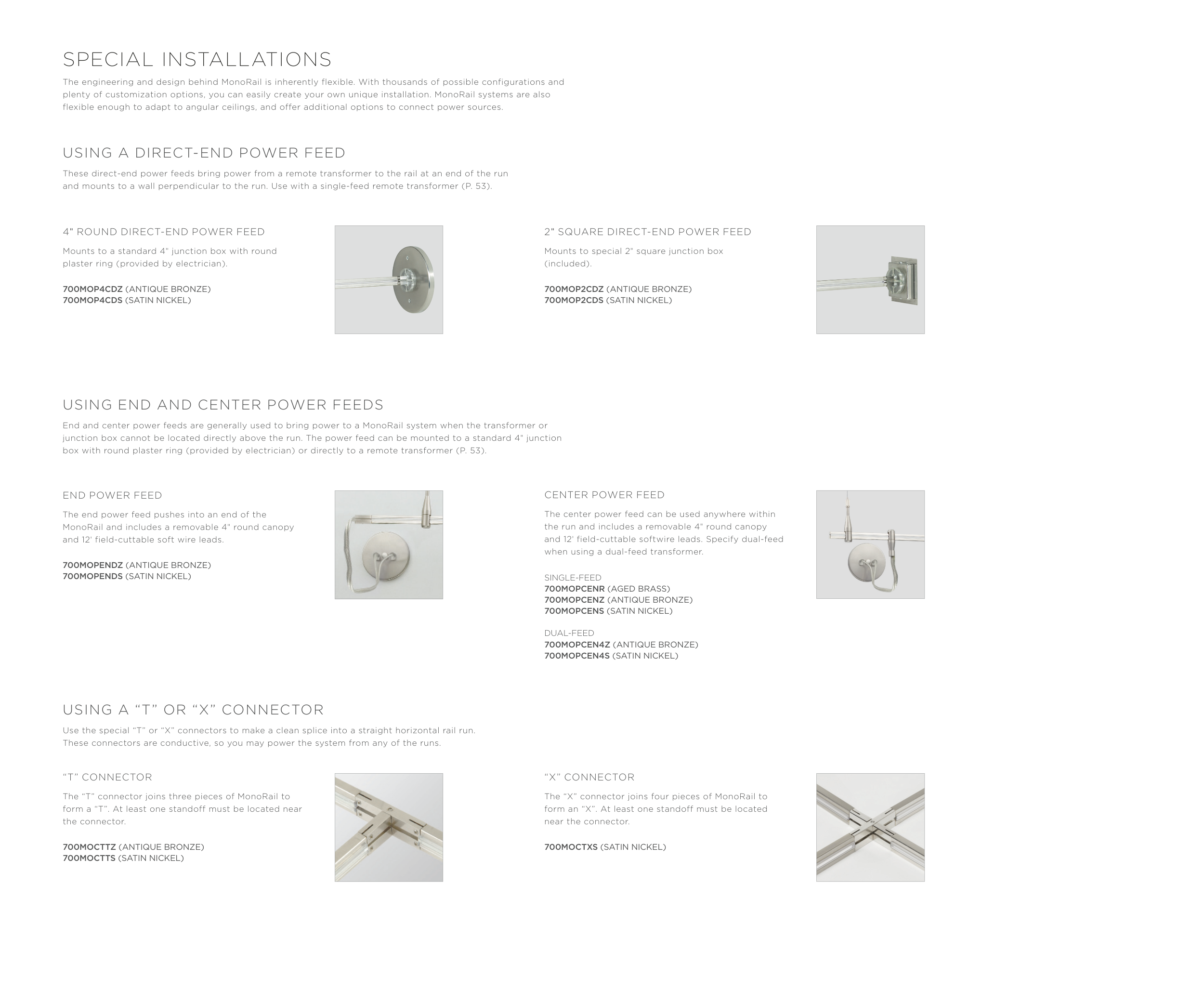

SPECIAL INSTALLATIONS
The engineering and design behind MonoRail is inherently flexible. With thousands of possible configurations and
plenty of customization options, you can easily create your own unique installation. MonoRail systems are also
flexible enough to adapt to angular ceilings, and offer additional options to connect power sources.
