60W ELECTRONIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Electronic 450W
Compatible Dimming Coil: N/A
120 Volt Input Option: 700AT060EL
277 Volt Input Option: N/A
300W ELECTRONIC DC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: N/A
120 Volt Input Option: 700AT302EL
277 Volt Input Option: N/A
75W MAGNETIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: N/A
120 Volt Input Option 700AT075T
277 Volt Input Option: 700AT075T277
300W MAGNETIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: 700DIM300 (P. 30)
120 Volt Input Option: 700AT300T
277 Volt Input Option: 700AT300T277
150W MAGNETIC AC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Magnetic 600W
Compatible Dimming Coil: 700DIM150 (P. 30)
120 Volt Input Option: 700AT150T
277 Volt Input Option: 700AT150T277

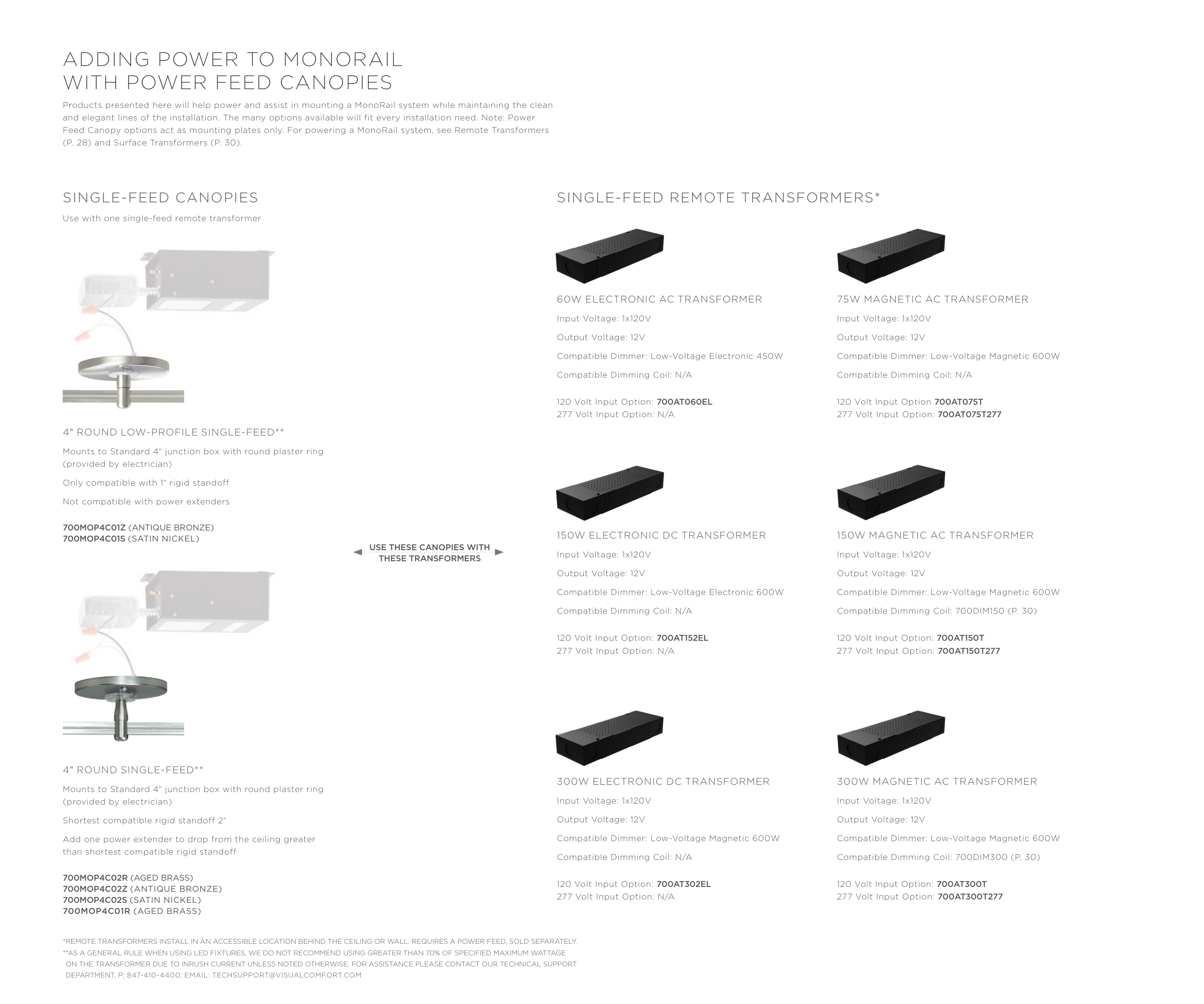

ADDING POWER TO MONORAIL
WITH POWER FEED CANOPIES
Products presented here will help power and assist in mounting a MonoRail system while maintaining the clean
and elegant lines of the installation. The many options available will fit every installation need. Note: Power
Feed Canopy options act as mounting plates only. For powering a MonoRail system, see Remote Transformers
(P. 28) and Surface Transformers (P. 30).
SINGLE-FEED REMOTE TRANSFORMERS*
SINGLE-FEED CANOPIES
Use with one single-feed remote transformer
*REMOTE TRANSFORMERS INSTALL IN AN ACCESSIBLE LOCATION BEHIND THE CEILING OR WALL. REQUIRES A POWER FEED, SOLD SEPARATELY.
* *AS A GENERAL RULE WHEN USING LED FIXTURES, WE DO NOT RECOMMEND USING GREATER THAN 70% OF SPECIFIED MAXIMUM WATTAGE
ON THE TRANSFORMER DUE TO INRUSH CURRENT UNLESS NOTED OTHERWISE. FOR ASSISTANCE PLEASE CONTACT OUR TECHNICAL SUPPORT
DEPARTMENT, P: 847-410-4400; EMAIL: TECHSUPPORT@VISUALCOMFORT.COM
USE THESE CANOPIES WITH
THESE TRANSFORMERS
4" ROUND LOW-PROFILE SINGLE-FEED**
Mounts to Standard 4" junction box with round plaster ring
(provided by electrician)
Only compatible with 1" rigid standoff
Not compatible with power extenders
700MOP4C01Z (ANTIQUE BRONZE)
700MOP4C01S (SATIN NICKEL)
4" ROUND SINGLE-FEED**
Mounts to Standard 4" junction box with round plaster ring
(provided by electrician)
Shortest compatible rigid standoff 2"
Add one power extender to drop from the ceiling greater
than shortest compatible rigid standoff
700MOP4C02R (AGED BRASS)
700MOP4C02Z (ANTIQUE BRONZE)
700MOP4C02S (SATIN NICKEL)
700MOP4C01R (AGED BRASS)
150W ELECTRONIC DC TRANSFORMER
Input Voltage: 1x120V
Output Voltage: 12V
Compatible Dimmer: Low-Voltage Electronic 600W
Compatible Dimming Coil: N/A
120 Volt Input Option: 700AT152EL
277 Volt Input Option: N/A
